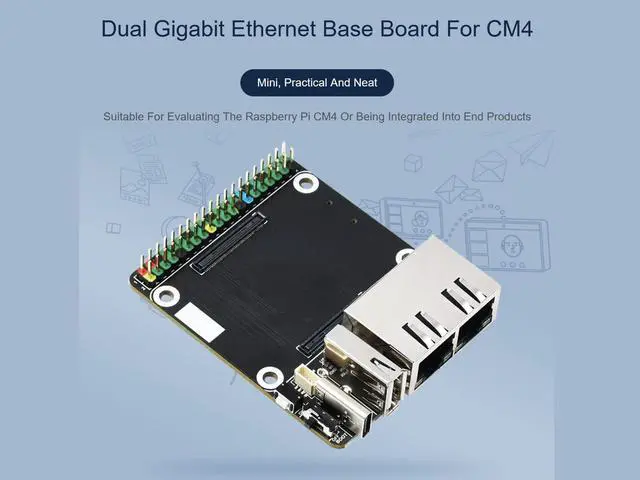

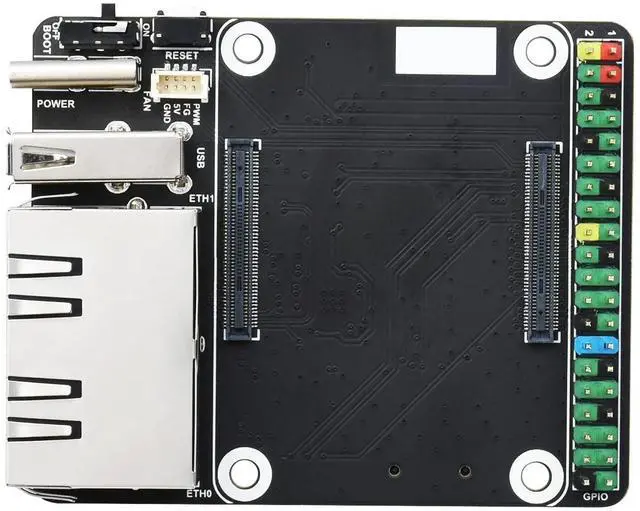

Mini Dual Gigabit Ethernet Base Board for Raspberry Pi Compute Module 4 CM4, Onboard ETH/Micro SD/USB Interfaces, Suitable for Evaluating the Raspberry Pi CM4 or Being Integrated into End Products

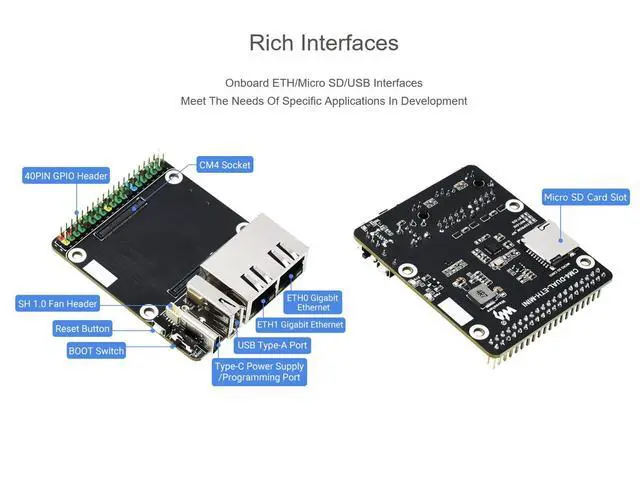

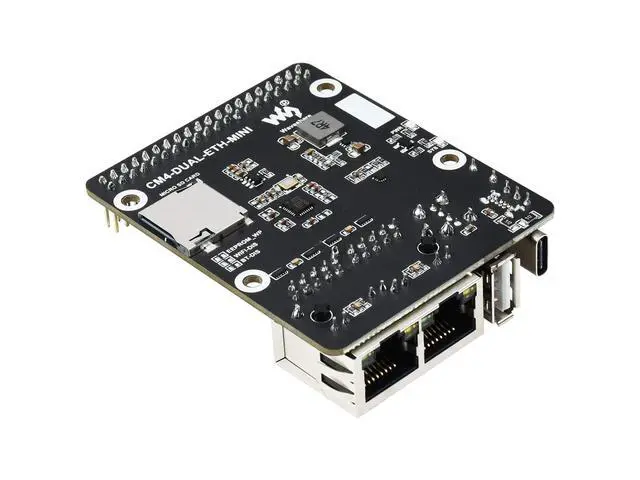

OverviewCM4-DUAL-ETH-MINI, a baseboard that can be used with Raspberry Pi Compute Module 4, supports 5V DC Type-C interface power supply, and features dual Gigabit Ethernet ports, single-channel USB 2.0 with a fan interface and standard Raspberry Pi 40Pin interface, which is suitable for scenarios requiring multiple network ports such as soft routing.
SpecificationsCM4 Socket: suitable for all variants of

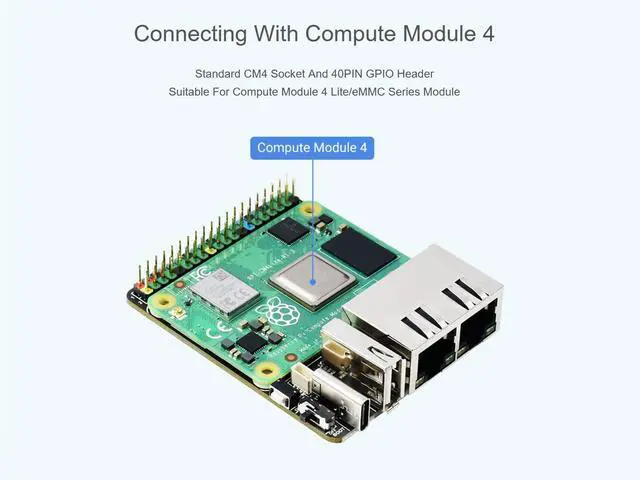

Compute Module 4Networking: Dual Gigabit
Ethernet RJ45 connectorUSB: USB 2.0
PortPIN HEADER: Raspberry Pi 40PIN
GPIO headerStorage: Micro SD card socket for Compute Module 4 Lite (without eMMC) variantsFan
Header: 4-wire SH 1.0 port, allows speed adjustment and measurement, 5VPower
Input: 5V, Type-C
interfaceDimensions: 55.0 68.0 mmCaution1. Do not plug or unplug any device other than a USB while it is powered on. 2. Confirm the fan voltage before connecting, only 5V fans are supported. 3. The Type C interface can be used as a power supply or as a USB interface to program the image (need to use the DIP switch to switch). 4. In order to ensure the normal power supply for CM4, please do not connect other devices when using the Type C interface to program the image. 5. When CM4 is in normal use, it needs to provide 5V/2A power supply for CM4. Otherwise, there may be problems such as automatic shutdown, frequency reduction and so on. 6. USB 2.0 is closed by default, if you want to open it, you need to add "dtoverlay=dwc2, dr_mode=host in config. txt". 7. For Opwenwrt, see the instructions for use. 8. This expansion board does not support the POE function.
Package ContentCM4-DUAL-ETH-MINI x1NOTE: Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
