Tri-Color 2.9inch E-Ink Display Module Resolution 296x128 3.3v E-Paper Electronic Screen Panel Three-Color SPI Interface for Raspberry Pi/STM32/Arduino/Jetson Nano
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- SPI interface, for connecting with controller boards like for Raspberry Pi/Arduino/Nucleo, etc
- Onboard voltage translator, compatible with 3.3V/5V MCUs
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

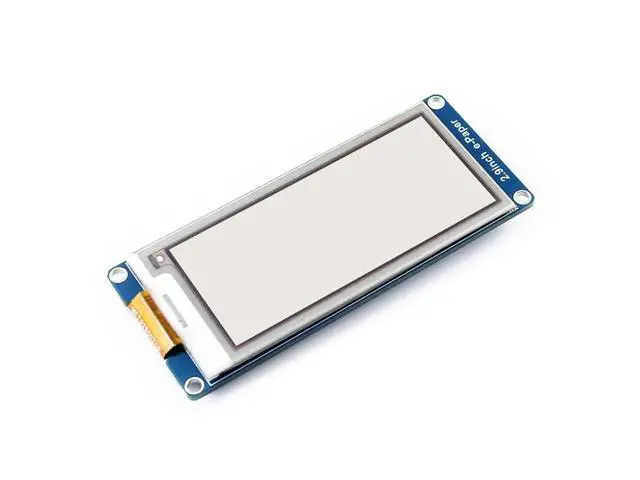

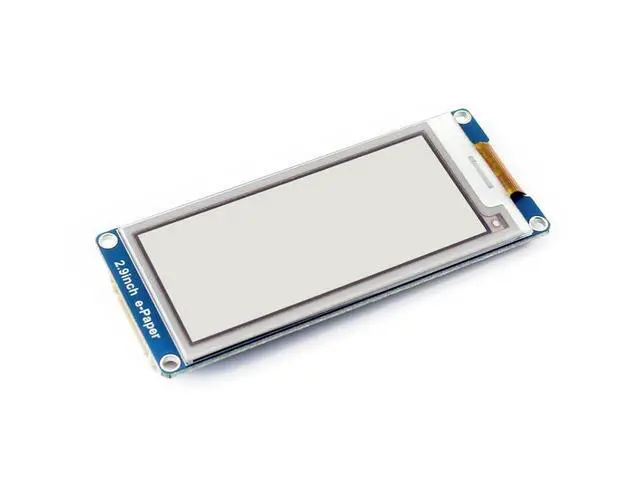

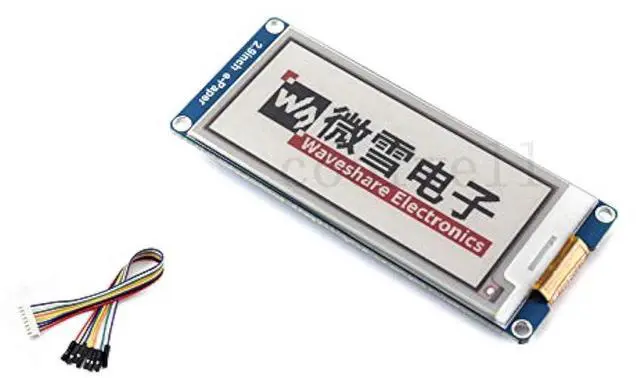

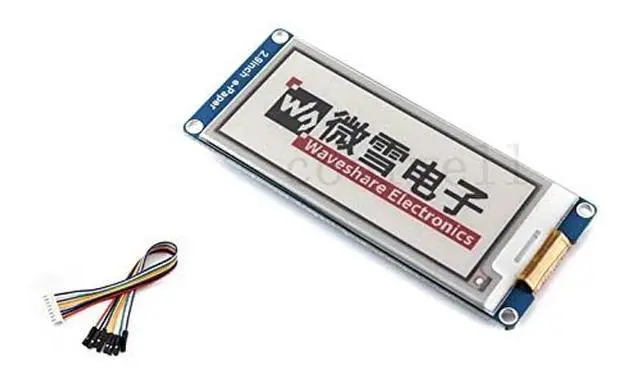

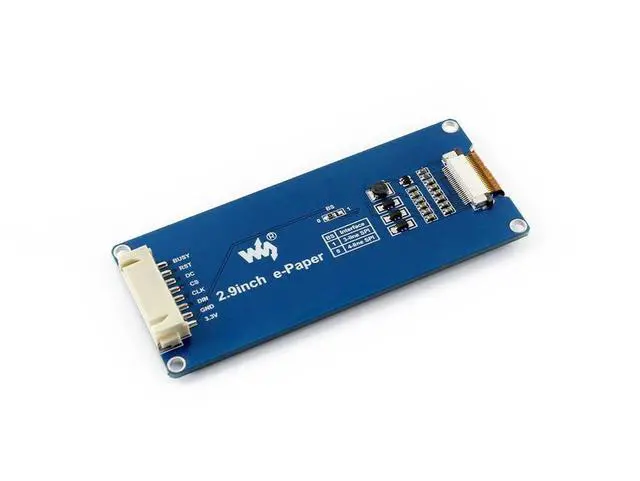

Description296x128, 2.9 inch E-Ink display module, three-color, SPI interfaceThis is an E-Ink display module, 2.9 inch, 296x128 resolution, with embedded controller, communicating via SPI interface, supportsred, black, and white three-color display. Due to the advantages like ultra low power consumption, wide viewing angle, great effect under sunlight, it is an ideal choice forapplications such as shelf label, industrial instrument, and so on.
SpecificationsOperating voltage: 3.3V
/5VInterface: 3-wire SPI, 4-wire SPI
Outline dimension: 89.5
mm x 38mmDisplay size: 66.89 mm x 29.05 mmDot pitch: 0.138
x 0.138R esolution: 296
x 128Display color: red, black, whiteGrey
level: 2Full
refresh time: 15s Do not support partial refresh)Refresh power: 26.4 mW(typ.
)Standby power: <0.017mWViewing angle: > 170Package Contains1. 2.9 inch e-Paper Module (B) x12. XH 2.54 20cm 8Pin x1
SpecificationsOperating voltage: 3.3V
/5VInterface: 3-wire SPI, 4-wire SPI
Outline dimension: 89.5
mm x 38mmDisplay size: 66.89 mm x 29.05 mmDot pitch: 0.138
x 0.138R esolution: 296
x 128Display color: red, black, whiteGrey
level: 2Full
refresh time: 15s Do not support partial refresh)Refresh power: 26.4 mW(typ.
)Standby power: <0.017mWViewing angle: > 170Package Contains1. 2.9 inch e-Paper Module (B) x12. XH 2.54 20cm 8Pin x1
