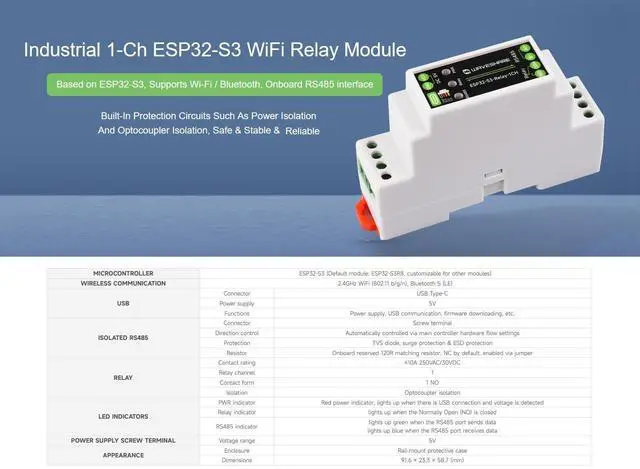

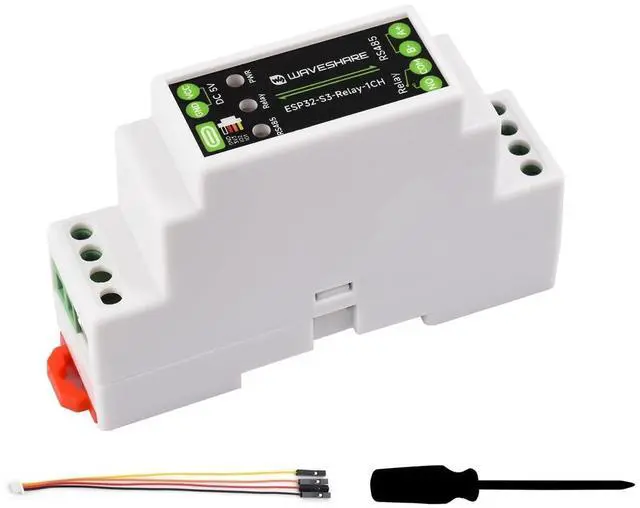

Industrial 1-Ch ESP32-S3 WiFi Relay Module, Supports RS485/WIFi/Bluetooth Control, Contact Rating of Relay up to 10A 250VAC/30VDC, with Multiple Isolation Protection Circuits, Rail-Mount Case

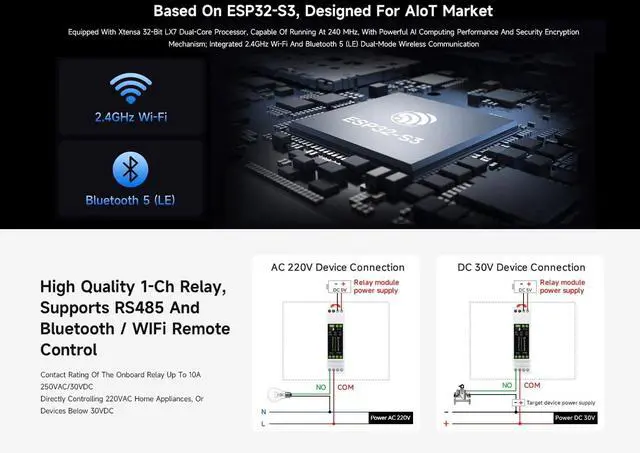

Industrial 1-Channel ESP32-S3 WiFi Relay Module, based on ESP32-S3 microcontroller with 32-bit LX7 dual-core processor, capable of running at 240 MHz, integrated 2.4GH z WiFi ( 802.11 b/g/n) and Bluetooth 5 (LE) dual-mode wireless communication ^^ Onboard high quality 1-Ch relay, supports RS485 and Bluetooth / WIFi remote control, contact rating of the onboard relay up to 10A 250VAC/30VDC, directly controlling 220VAC home appliances, or devices below 30VDC ^^ Onboard isolated RS485 interface for connecting to various RS485 Modbus industrial modules or sensors. Onboard USB Type-C port for power supply, firmware downloading and debugging.

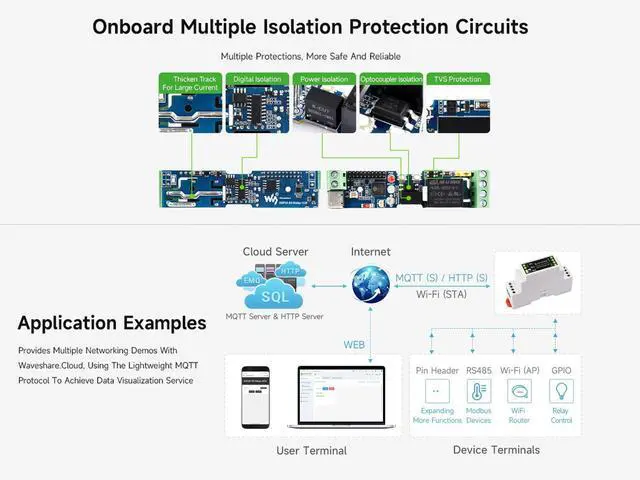

Onboard RTC chip supports scheduled tasks. Onboard power supply screw terminal supports 5V power supply only ^^ Onboard optocoupler isolation, digital isolation, unibody power supply isolation, TVS protection, thicken track for large current multiple isolation protection circuits ^^ Onboard RS485 TX/RX indicators for monitoring the operating status of the module. Rail-mounted protective case, easy to install. Supports Arduino IDE development, online Dev Resources, and tutorials are provided, feel free to contact us if you need
