Waveshare PCIe to 2-ch M.2 Adapter for Raspberry Pi 5,2-Ch NVMe Protocol M.2 Solid State Drive Adapter,Support M.2 NVMe SSD 2230 2242,Supports PCIE X1 Gen2 Only

Be the first to review this product...

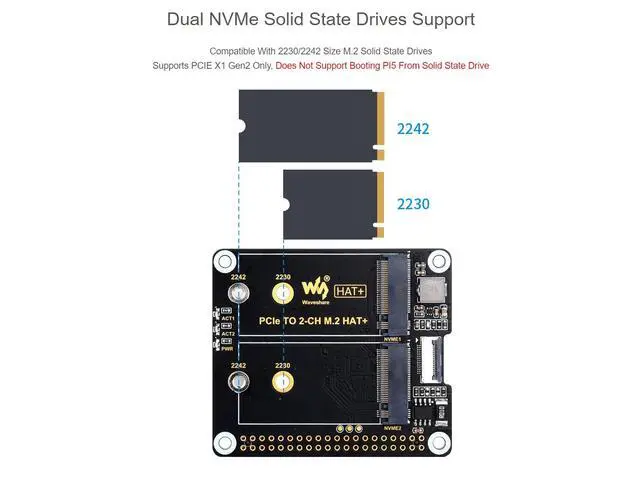

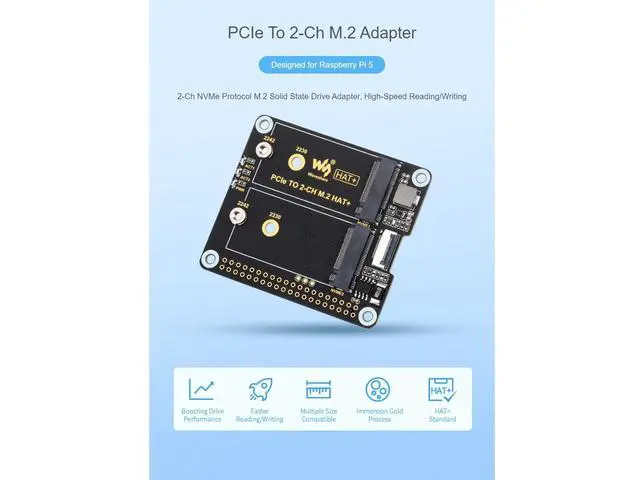

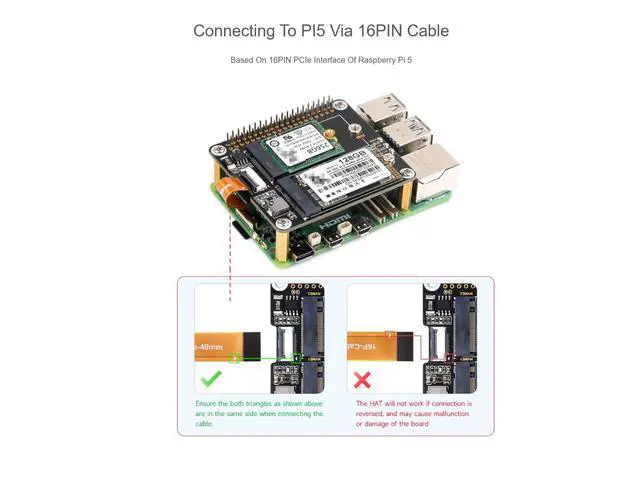

PCIe To 2-ch M.2 Adapter for Raspberry Pi 5,Compatible with M.2 solid state drive of 2230/2242 sizes.
PCI-E1 only supports Gen2 mode.Support NVMe protocol and M.2 solid state drive protocol, high-speed read/write, with high work efficiency.

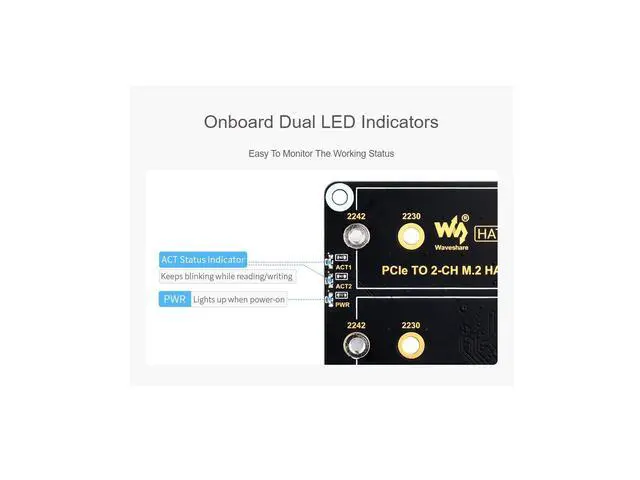

Onboard working indicator lights, with PWR on continuously when powered, and ACT blinking during read/write.
Onboard power monitoring chip, for real-time monitoring of the working status of the solid state drive.
Do not support NVME SSD booting.HAT+ design with onboard EEPROM chip.

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

PCIe To 2-ch M. 2 Adapter for Raspberry Pi 5, Compatible with M. 2 solid state drive of 2230/2242 sizes. ^^ PCI-E1 only supports Gen2 mode. Support NVMe protocol and M. 2 solid state drive protocol, high-speed read/write, with high work efficiency. ^^ Onboard working indicator lights, with PWR on continuously when powered, and ACT blinking during read/write. ^^ Onboard power monitoring chip, for real-time monitoring of the working status of the solid state drive. ^^ Do not support NVME SSD booting. HAT+ design with onboard EEPROM chip.
