ESP32-S3 Ethernet Dev Board onboard 10/100Mbps RJ45 ETH Port, Camera Interface, USB Type-C Port, TF Card Slot and PoE Module Header, Wi-Fi & Bluetooth Support, 240MHz Dual Core Processor

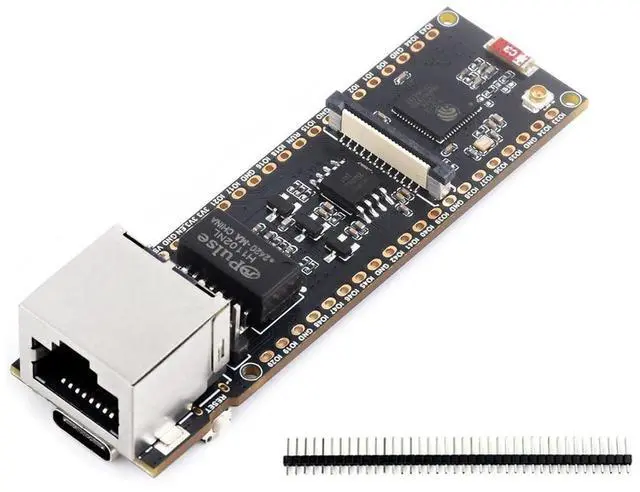

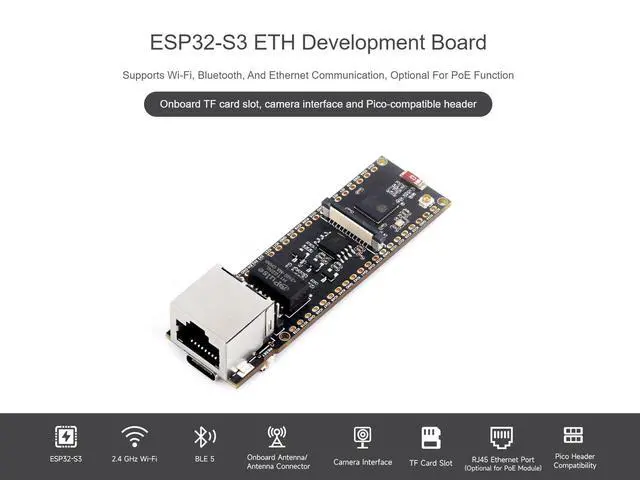

OverviewThis is an ETH development board based on ESP32-S3R8, supports Wi-Fi and Bluetooth wireless communication, with reliable and efficient wired Ethernet connectivity, optional for PoE function. Onboard camera interface, compatible with OV2640, OV5640 and other mainstream cameras for image and video capture. Compatible with Pico header, it can be used with some Raspberry Pi Pico HATs. Relying on the rich ecology and open source resources of ESP32, users can get started quickly for secondary development. It is suitable for Internet of Things, image acquisition, smart home and other AI projects.

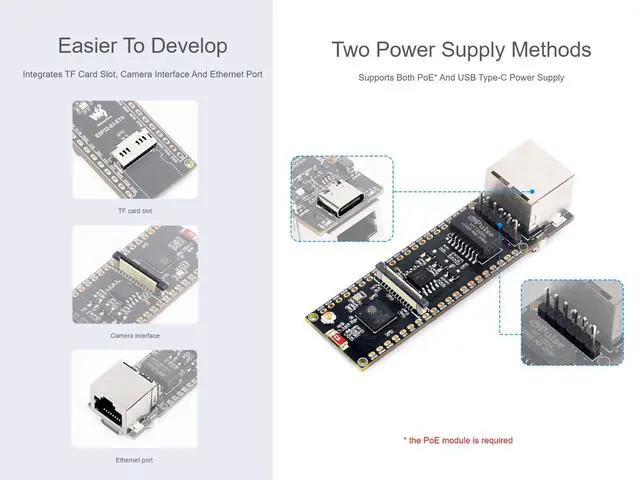

FeaturesAdopts ESP32-S3R8 high-performance chip with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHzIntegrated 512KB Static Random-Access Memory, 384KB ROM, 8MB PSRAM and 16MB Flash memoryIntegrated 2.4GH z Wi-Fi and Bluetooth 5 (LE) wireless communication, with an onboard antenna. Supports switching to use external antennaOnboard W5500 Ethernet chip for extending 10/100Mbps network port through SPI interfaceOptional for PoE module to realize Power over Ethernet function (IEEE 802.3 af-compliant)Onboard camera interface, compatible with OV2640, OV5640 and other mainstream cameras for image and video captureOnboard USB Type-C port for power supply, program downloading, and debugging, more convenient for development useOnboard TF card slot for external TF card storage of pictures or filesCompatible with Pico header, onboard multiple peripheral interfaces, offering strong compatibility and expandabilityPackage ContentESP32-S3-ETH x140PIN male pinheader (black) x1NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
