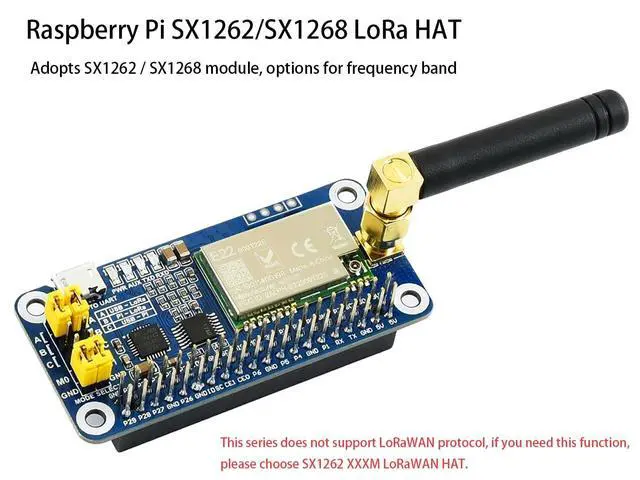

SX1262 LoRa HAT for Raspberry Pi 915MHz Frequency Band Data Transmission up to 5km Support Auto Repeating to Transmit Longer Wake on Radio Wireless Config Carrier Sensing Communication Key

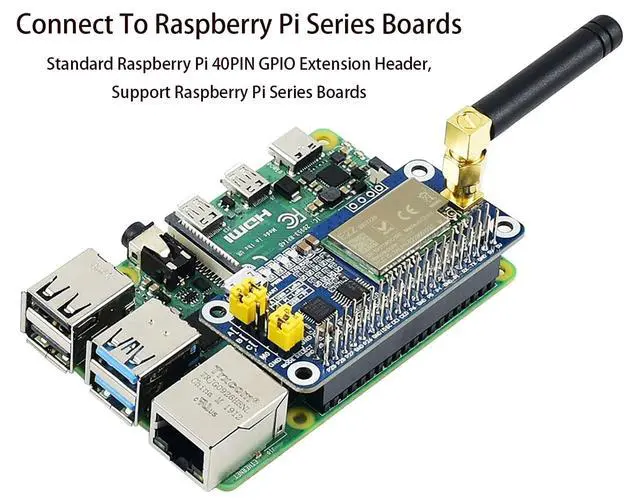

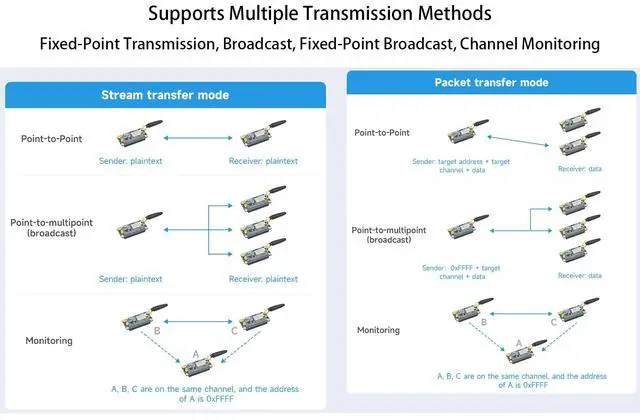

SX1262 LoRa HAT for Raspberry Pi, 915MHz Frequency Band, for America, Oceania, AsiaFeaturesStandard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boardsOnboard CP2102 USB TO UART converter, for serial debuggingBrings the UART control interface, for connecting host boards like Arduino/STM324x LED indicators, easy to check the module statusLoRa spread spectrum modulation technology, up to 81 available signal channel, longer communication distance, more robust to interferenceAuto multi-level repeating, suit for ultra long range communication, allows multi network on the same regionLow power consumption features like deep sleeping and Wake on Radio, ideal for battery-powered applicationsCustomizable communication key which won't be retrieved, greatly improves the security of user dataSupports LBT, monitoring the signal channel noise before transmitting, greatly improves the success ratio under extreme environmentSupports RSSI signal intensity indicating, for evaluating signal quality, tuning the networkSupports wireless parameter configuration, by sending wireless command/data packet, remotely configure or retrieve the module parameterSupports fixed-point transmission, broadcast, signal channel monitorComes with development resources and manual (examples for

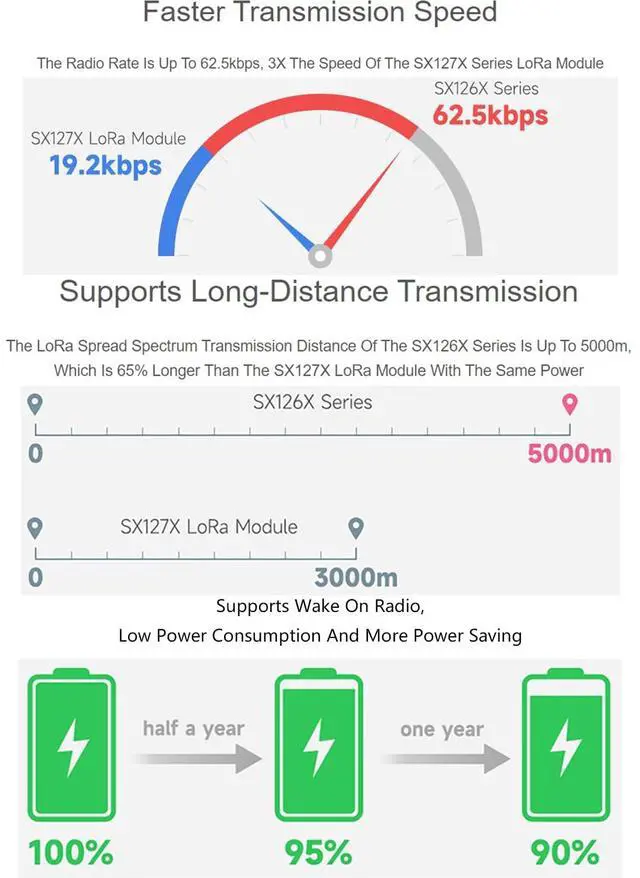

Raspberry Pi/STM32)SpecificationRadio rate: 0.3 kbps ~ 62.5 kbps (programmable)
Transmit power: 22.0
dBm (10/13/17/22dBm programmable)Receive sensitivity: -147dBm (radio rate 2.4 kbps)Communication interface: UART (TTL level)
Baudrate: 1200bps ~ 115200bps (9600bps by default)
Packet length: 240 Byte (32/64/128/240

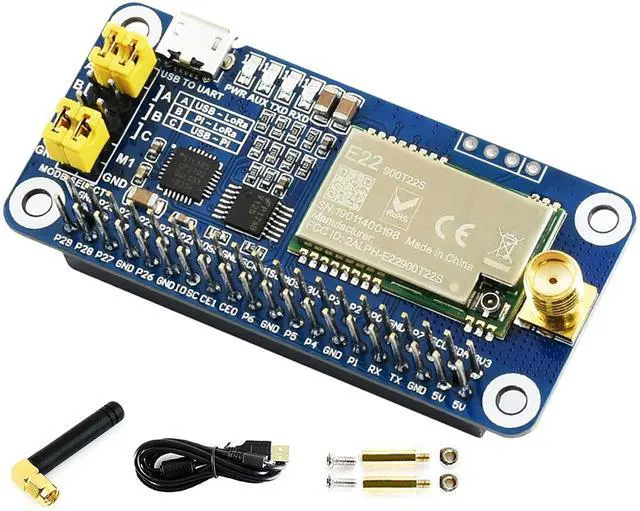

Byte programmable)Cache: 1000 BytePackage Content1. SX1262 915M LoRa HAT x12. USB type A plug to micro plug cable x 13.915MH z antenna x1Online
Development Resources: //bit. ly/49bRpSJ
