$142.99
Meet Your Seller

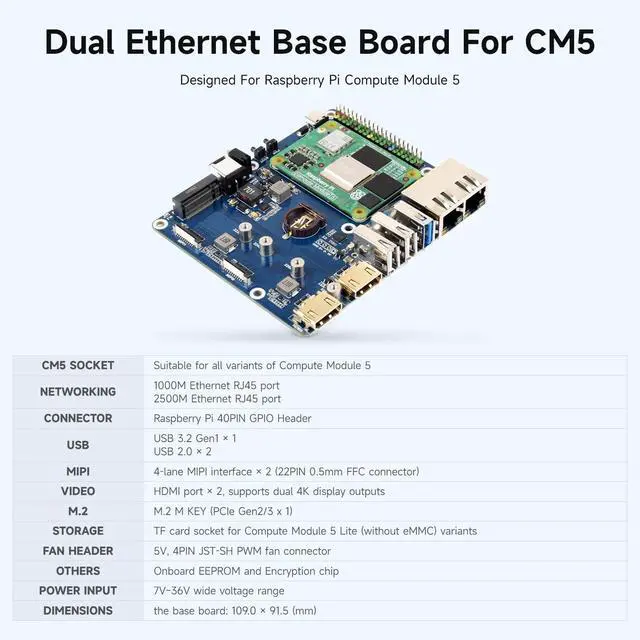

Waveshare Gigabit / 2.5G Dual Ethernet Base Board, Compatible with Raspberry Pi CM5. Dual RJ45 Ethernet, Dual 4K Display, Dual MIPI, 40Pin GPIO Header, with Board, Metal Case and Power Supply
- CM5 Socket Compatibility: Supports all variants of Compute Module 5, providing maximum flexibility for different projects.
- High-Speed Networking: Equipped with 1x 1000M Ethernet port and 1x 2500M Ethernet port for reliable, high-speed network connections.
- Versatile Connectivity: Features a Raspberry Pi 40PIN GPIO header, 1x USB 3.2 Gen1 port, 2x USB 2.0 ports, and dual 4-lane MIPI interfaces for extensive peripheral support.

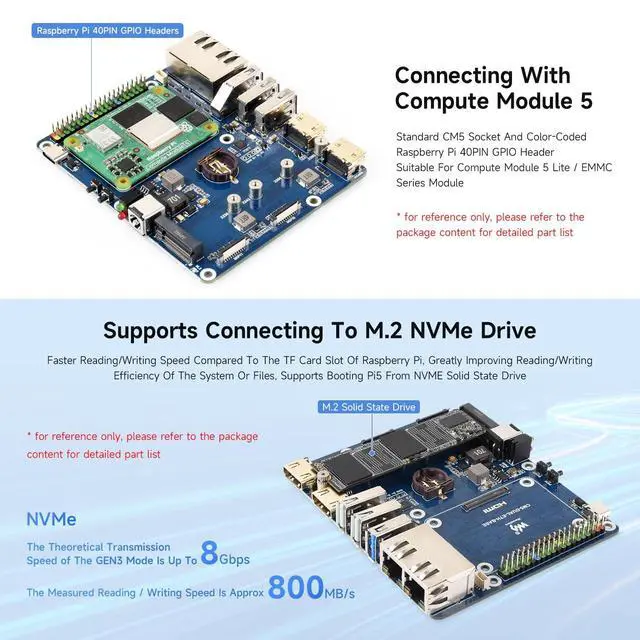

- Video and Storage Support: Dual HDMI ports allow 4K dual-display output; includes a TF card socket for Compute Module 5 Lite variants (without eMMC) and an M.2 M KEY slot for PCIe expansion.
- Enhanced Features and Power: Onboard EEPROM and encryption chip for secure operation, 5V 4PIN PWM fan header for cooling, and wide voltage input range (7V36V) for versatile power supply options.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
CM5 Socket Compatibility: Supports all variants of Compute Module 5, providing maximum flexibility for different projects.
^^ High-Speed Networking: Equipped with 1x 1000M Ethernet port and 1x 2500M Ethernet port for reliable, high-speed network connections.
^^ Versatile Connectivity: Features a Raspberry Pi 40PIN GPIO header, 1x USB 3.2 Gen1 port, 2x USB 2.0 ports, and dual 4-lane MIPI interfaces for extensive peripheral support. ^^ Video and
Storage Support: Dual HDMI ports allow 4K dual-display output; includes a TF card socket for Compute Module 5 Lite variants (without eMMC) and an M. 2 M KEY slot for PCIe expansion. ^^ Enhanced
Features and Power: Onboard EEPROM and encryption chip for secure operation, 5V 4PIN PWM fan header for cooling, and wide voltage input range (7V36V) for versatile power supply options.
^^ High-Speed Networking: Equipped with 1x 1000M Ethernet port and 1x 2500M Ethernet port for reliable, high-speed network connections.
^^ Versatile Connectivity: Features a Raspberry Pi 40PIN GPIO header, 1x USB 3.2 Gen1 port, 2x USB 2.0 ports, and dual 4-lane MIPI interfaces for extensive peripheral support. ^^ Video and
Storage Support: Dual HDMI ports allow 4K dual-display output; includes a TF card socket for Compute Module 5 Lite variants (without eMMC) and an M. 2 M KEY slot for PCIe expansion. ^^ Enhanced
Features and Power: Onboard EEPROM and encryption chip for secure operation, 5V 4PIN PWM fan header for cooling, and wide voltage input range (7V36V) for versatile power supply options.
