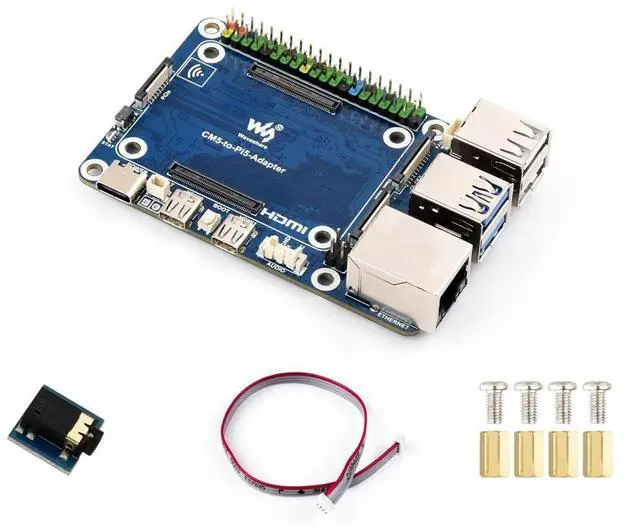

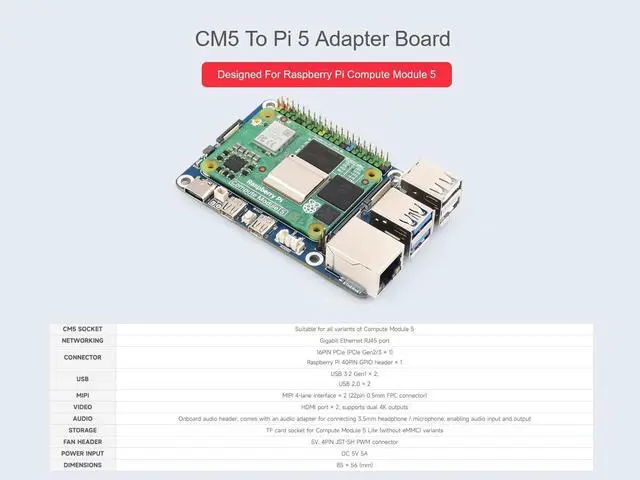

CM5 to Pi 5 Adapter Board Designed for Rasp Pi Compute Module 5, Alternative Solution for Raspberry Pi 5, Onboard ETH, USB, MIPI, HDMI, Audio Header, etc. Support Connecting to Microphone

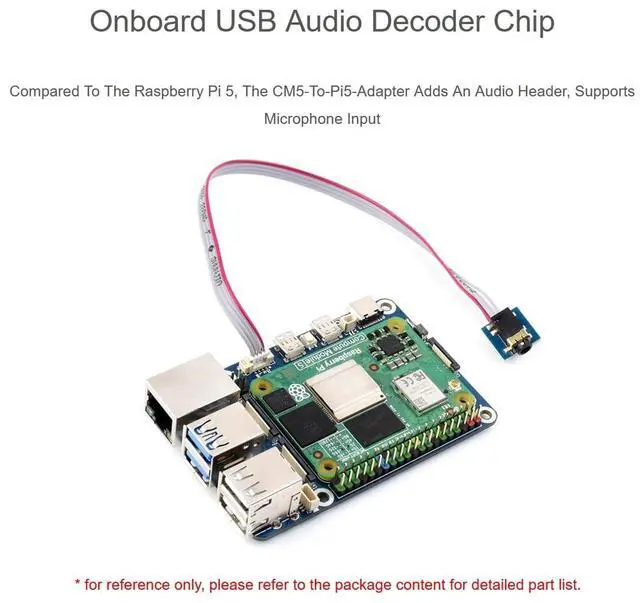

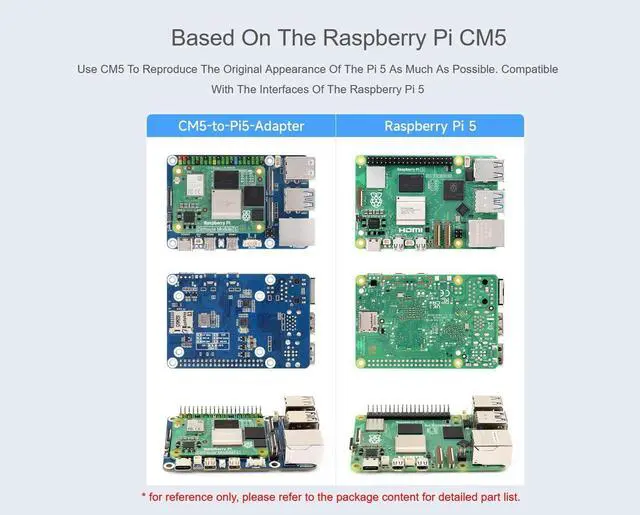

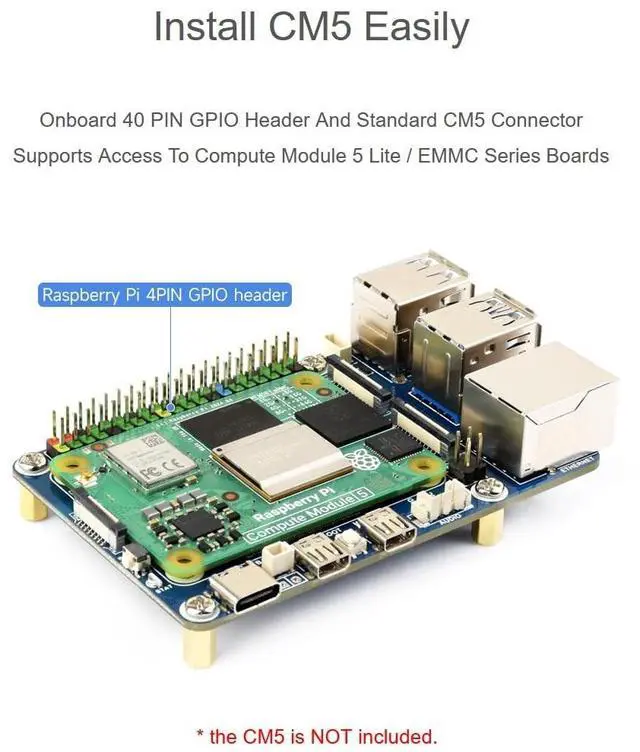

CM5 to Pi 5 adapter is a baseboard that can be used with Raspberry Pi Compute Module 5, use CM5 to reproduce the original appearance of Pi 5 as much as possible, compatible with the interfaces of Pi 5, alternative solution for Raspberry Pi 5 ^^ Onboard Gigabit Ethernet RJ45 port, 16PIN PCIe, Pi 40PIN GPIO header, USB 3.2 Gen1 2, USB 2.0 2, Dual MIPI, Micro HDMI port 2, PoE 4PIN header, audio header, etc. comes with an audio adapter for connecting 3.5 mm headphone / microphone ^^
Precautions: 1). Do not plug or unplug any device other than USB and HDMI when the device is powered on. 2). Type C can be used as a USB SLAVE interface to flash images. 3). Onboard default 2 USB 3.2 Gen1 port ^^
Precautions: 4). Supports 4 screens to display different contents, adds MIPI DSI driver, regardless of whether a screen is connected, the system will default to connect, the screen will display in split-screen mode (related to the system version) ^^
Precautions: 5). The onboard BOOT button, you can press the BOOT button before powering on, and connect to the computer through Type C to let the device enter the flashing mode. 6). Do not connect other devices when using Type C for flashing
