$68.99
Meet Your Seller

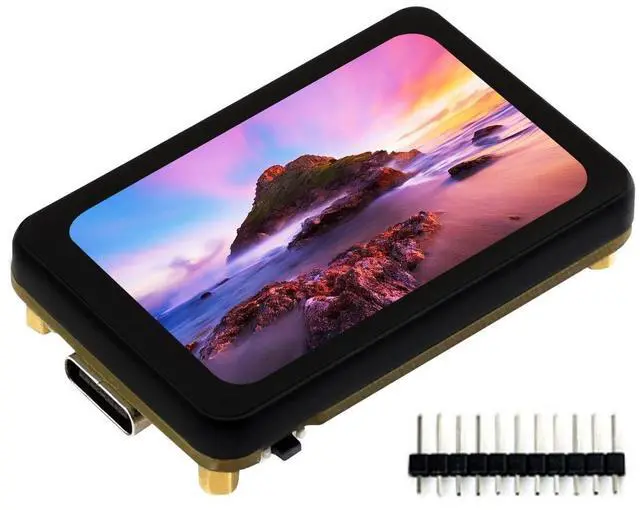

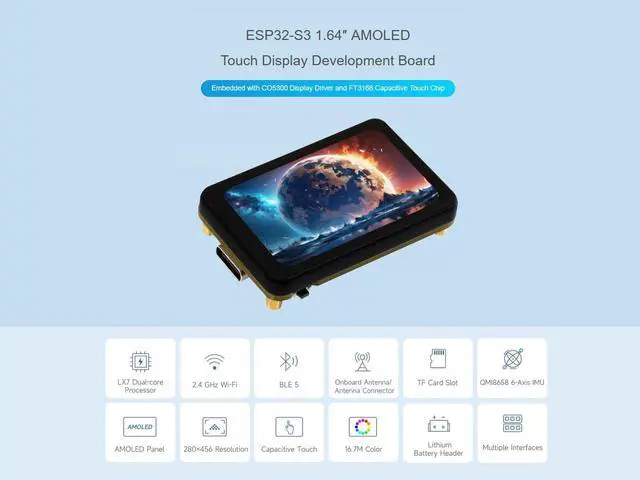

ESP32-S3 1.64inch AMOLED Touch Display Development Board, 280456 Resolution, 16.7M Color, QSPI Interface, Wi-Fi and BLE-5 Support, Onboard 6-Axis IMU, TF Card Slot, USB, UART, I2C, etc.

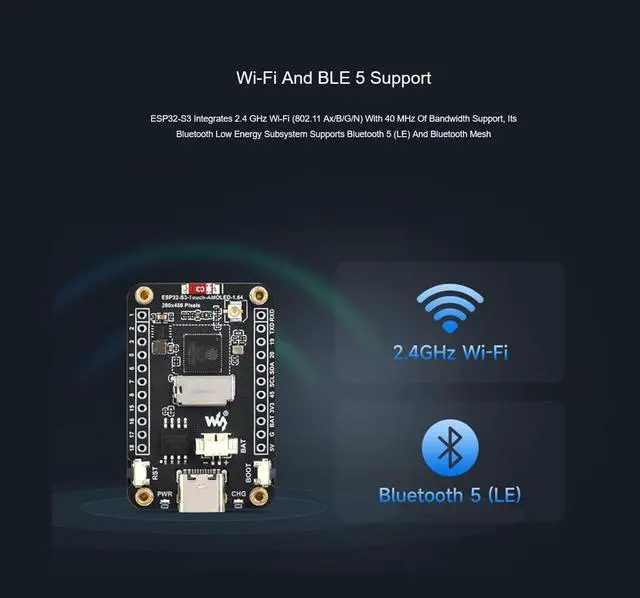

- ESP32-S3 1.64 AMOLED touch display development board adopts ESP32-S3R8 chip with 2.4GHz Wi-Fi and Bluetooth BLE 5 support, 32-bit LX7 dual-core processor, up to 240MHz main frequency, built-in 512KB S-RAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM

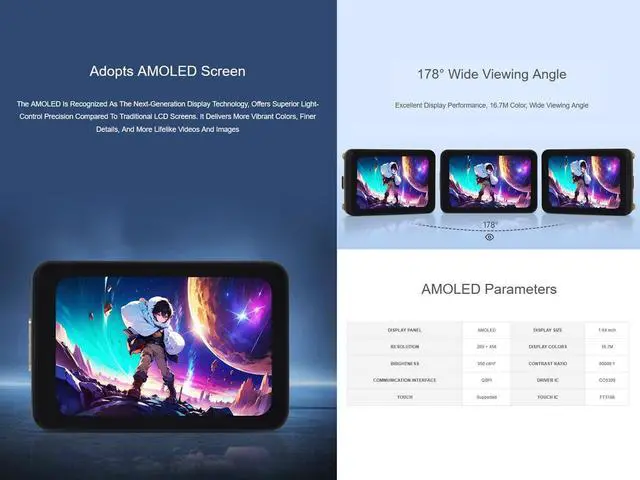

- ESP32-S3 with 1.64inch AMOLED screen, QSPI interface, 280 456 resolution, 16.7M color, 178 wide viewing angle. Supports capacitive touch function, controlled via I2C interface
- Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for motion gesture detection, step counting, and more
- Onboard RST button, along with programmable BOOT button for customizable functionality and flexible development. Onboard TF card slot, enabling external storage for pictures or files
- Onboard USB Type-C port for power supply, program downloading, and debugging, making development more convenient. Adapting I2C, UART, and USB interfaces, for connecting peripherals and debugging
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

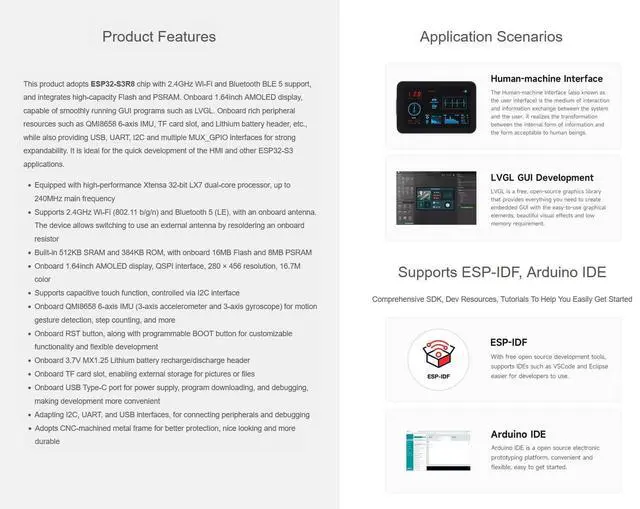

FeaturesEquipped with 32-bit LX7 dual-core processor, up to 240MHz main frequencySupports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with an onboard antenna. The device allows switching to use an external antenna by resoldering an onboard resistorBuilt-in 512KB S-RAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAMOnboard 1.64 inch AMOLED display, QSPI interface, 280 456 resolution, 16.7M colorSupports capacitive touch function, controlled via I2C interfaceOnboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for motion gesture detection, step counting, and moreOnboard RST button, along with programmable BOOT button for customizable functionality and flexible developmentOnboard 3.7V MX 1.25 Lithium battery recharge/discharge headerOnboard TF card slot, enabling external storage for pictures or filesOnboard USB Type-C port for power supply, program downloading, and debugging, making development more convenientAdapting I2C, UART, and USB interfaces, for connecting peripherals and debuggingAdopts CNC-machined metal frame for better protection, nice looking and more durablePackage ContentESP32-S3-Touch-AMOLED- 1.64 x111Pin black pinheader ( 2.54 mm) x2NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
