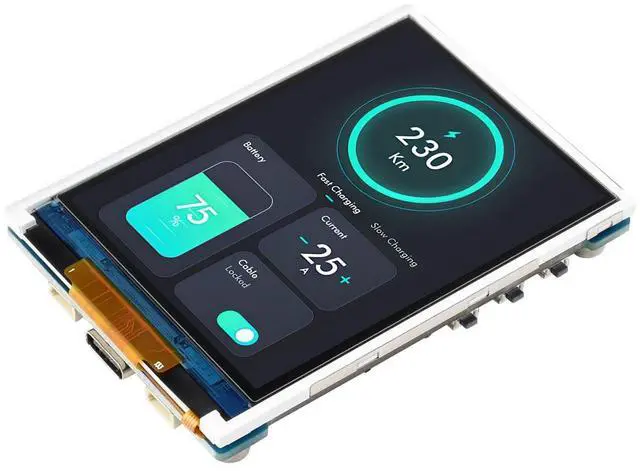

Waveshare ESP32-S3 2.8inch Display Development Board, 240320, IPS, 32-bit LX7 Dual-core Processor, Up to 240MHz Frequency, Supports WiFi & Bluetooth, Without Touch Function
- This product is a microcontroller development board with 2.4GHz WiFi and Bluetooth BLE 5 support, integrates high-capacity Flash and PSRAM.
- Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
- Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM Onboard 2.8inch LCD display, 240320 resolution, 262K color
- Adapting UART, I2C and some IO interfaces, integrates full-speed USB port Onboard speaker, QMI8658 6-axis sensor, RTC sensor, TF card slot and battery recharge management module, etc.
- Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
- Rich WiKi Resources: We provide official Wiki resources, please visit our store and click the wiki page to get resources.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
This product is a microcontroller development board with 2.4GH z WiFi and Bluetooth BLE 5 support, integrates high-capacity Flash and PSRAM. ^^ Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency Supports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna ^^ Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM Onboard 2.8 inch LCD display, 240320 resolution, 262K color ^^ Adapting UART, I2C and some IO interfaces, integrates full-speed USB port Onboard speaker, QMI8658 6-axis sensor, RTC sensor, TF card slot and battery recharge management module, etc.
^^ Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios ^^
Rich WiKi Resources: We provide official Wiki resources, please visit our store and click the wiki page to get resources.
^^ Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios ^^
Rich WiKi Resources: We provide official Wiki resources, please visit our store and click the wiki page to get resources.
