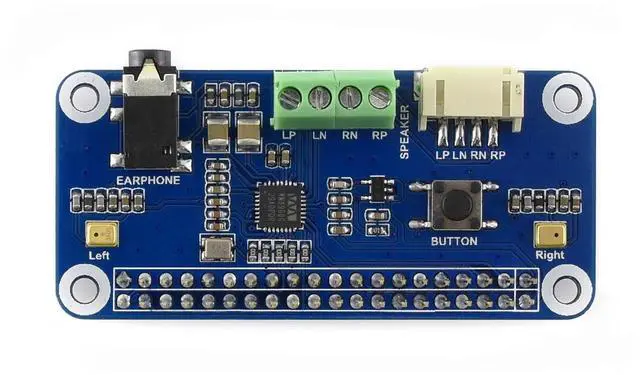

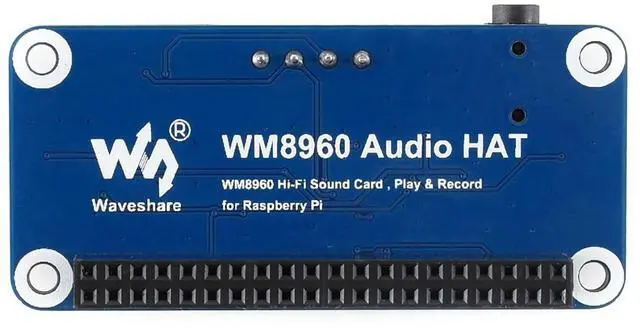

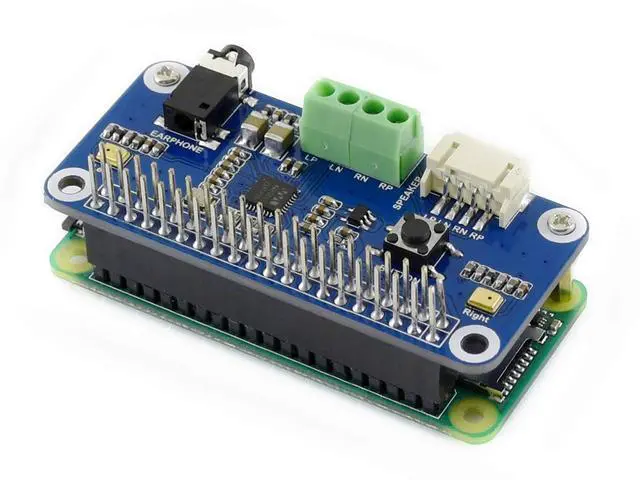

Waveshare WM8960 Hi-Fi Sound Card HAT Stereo CODEC Playing and Recording I2S Interface for Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+

OverviewThis is a sound card HAT designed for Raspberry Pi, low power consumption, supports stereo encoding / decoding, features Hi-Fi playing / recording, what's more, it can directly drive speakers to play music.

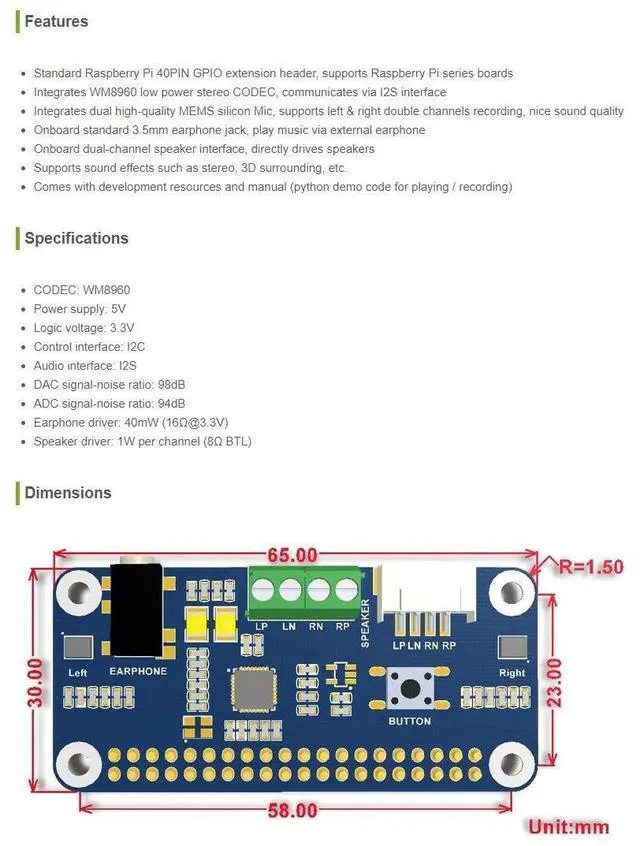

Features: Raspberry Pi connectivity, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+Integrates WM8960 low power stereo CODEC, communicates via I2S interfaceIntegrates dual high-quality MEMS silicon Mic, supports left & right double channels recording, nice sound qualityOnboard standard 3.5 mm earphone jack, play music via external earphoneOnboard dual-channel speaker interface, directly drives speakersSupports sound effects such as stereo, 3D surrounding, etc. Comes with development resources and manual (python demo code for playing / recording)Specifications:
Codec: WM8960Power
supply: 5 V.
Logic voltage: 3.3 V.
Control interface: I2C.
Audio interface: I2S.
DAC signal-noise ratio: 98 dB.
ADC signal noise ratio: 94 dB.
Earphone driver: 40mW (16@ 3.3V ).
Speaker driver: 1W per channel (8 BTL).
Development ResourcesWiki: www. waveshare.
com/wiki/WM8960_Audio_HAT?
Package contents:

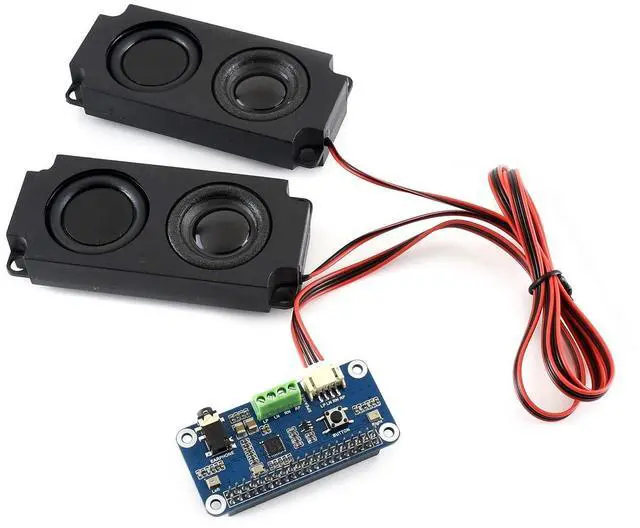

Note: Raspberry Pi in the photos is NOT included. WM8960 Audio Hat x11 x 8 5 W speaker. RPi screws pack (2pcs) x1
