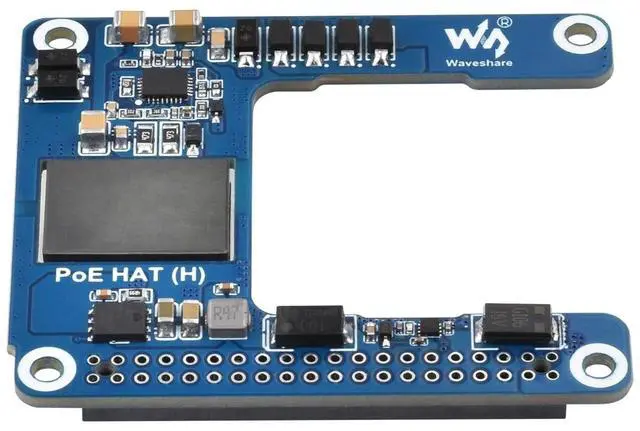

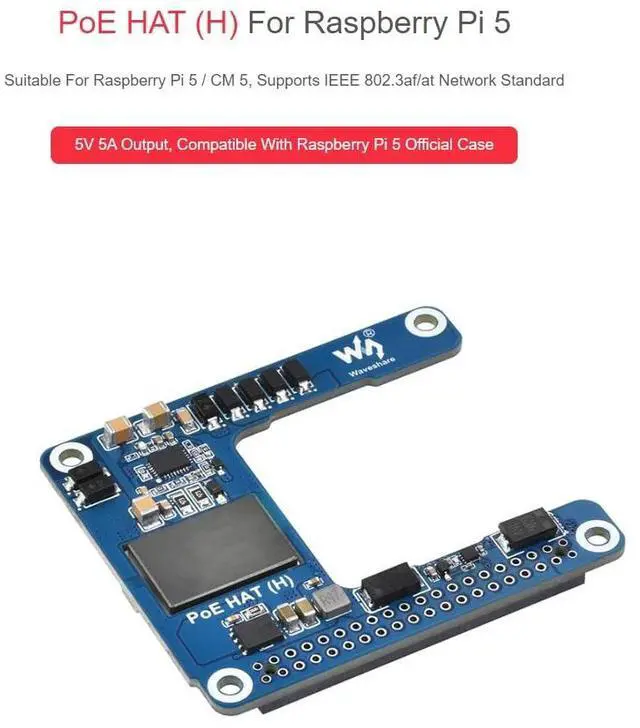

waveshare PoE HAT (H) for Raspberry Pi 5 / CM 5,Power Over Ethernet HAT (H) Expansion Board,802.3af/at Network Standard,Isolated Switched-Mode Power Supply,5V 5A Output

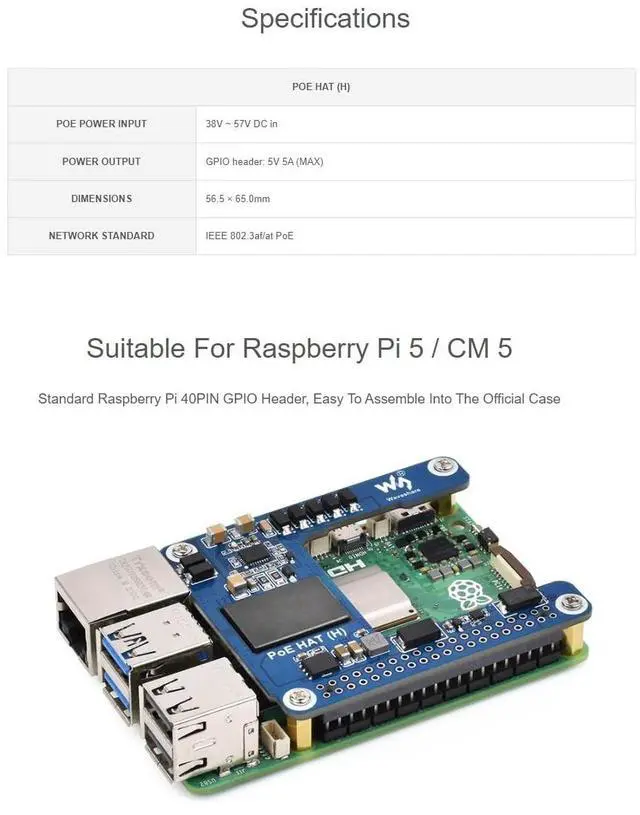

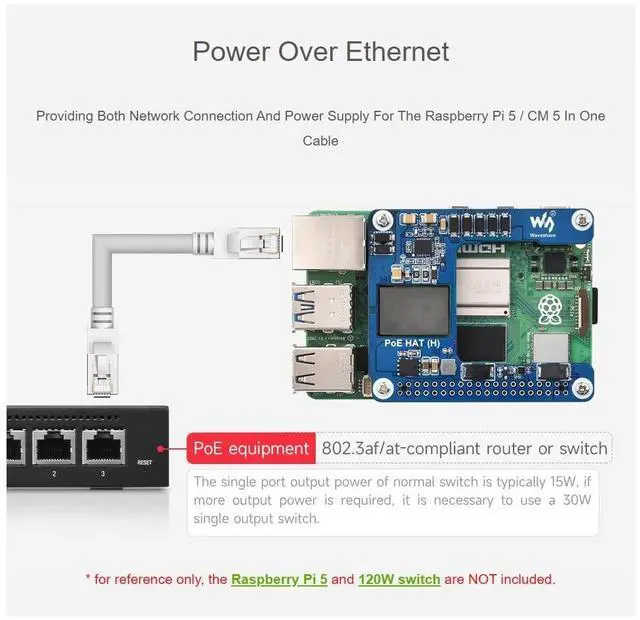

IntroductionPoE HAT (H) is a power-over-Ethernet (PoE) expansion board for Raspberry Pi 5, supporting IEEE 802.3 af/at network standards Designed to work with PoErouters or switches that support the IEEE 802.3 af/at network standards, the Raspberry Pi can achieve both network connectivity and power supplywith just a single Ethernet cable. FeaturesBased on Raspberry Pi 40PIN GPIO interfaceSupports Power over Ethernet (PoE), supports IEEE 802.3 af/at PoE network standardAdopts isolated SMPS (Switching Mode Power Supply) Compact and easy to assembleSpecificationsPoE input voltage: 37V ~ 57V
DC inputPoE-GPIO pin header: 5V 5A (MAX)
Network standards: Supports IEEE 802.3 af/at

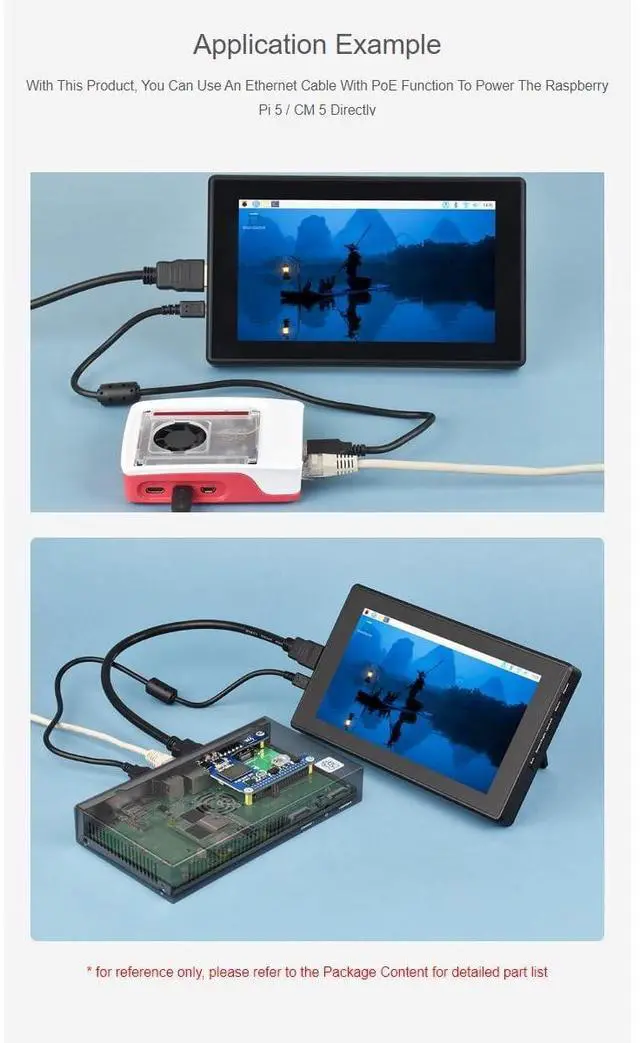

PoEProduct size: 56.5 x 65.0 (mm) Application ExampleWith This Product, You Can Use An Ethernet Cable With PoE Function To Power The Raspberry Pi 5 / CM 5 DirectlyPackage ContentPoE HAT (H) x12*2 header x12*20 header x1Standoffs pack x1
