ESP32-S3 1.47inch Touch Display Development Board with pre-soldered Header,172320 Resolution 262K Color RGB LED,Supports 2.4GHz Wi-Fi/BLE 5

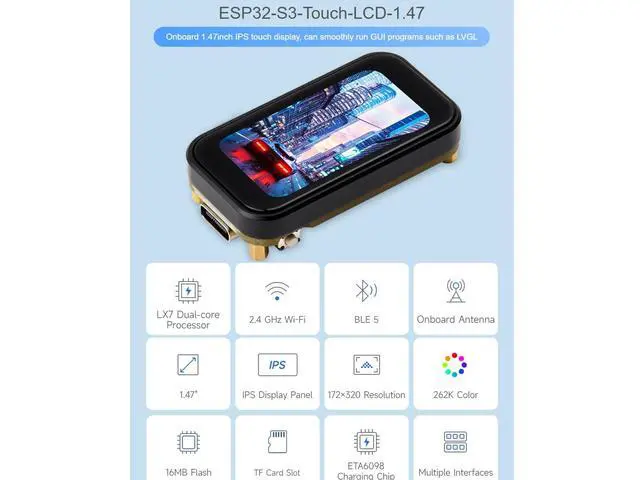

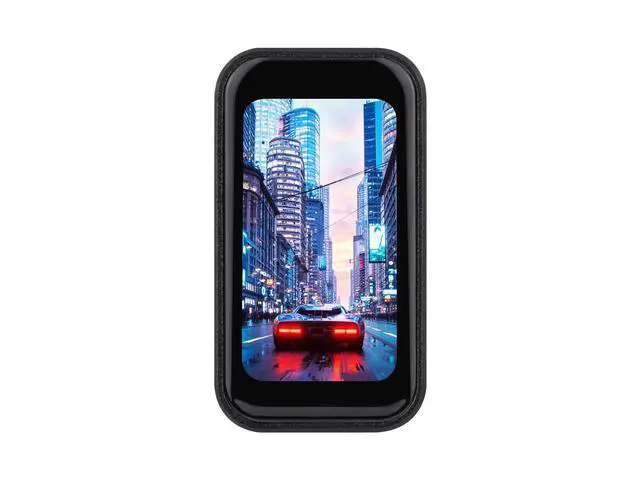

- ESP32-S3-Touch-LCD-1.47-M.Onboard 1.47inch IPS touch display, can smoothly run GUI programs such as LVGL
- ESP32-S3 Suitable For AIoT Applications.Powered By A High-Performance 32-Bit LX7 Dual-Core Processor, The Main Frequency Is Up To 240 MHz, Powerful AI Computing Capability & Reliable Security Features

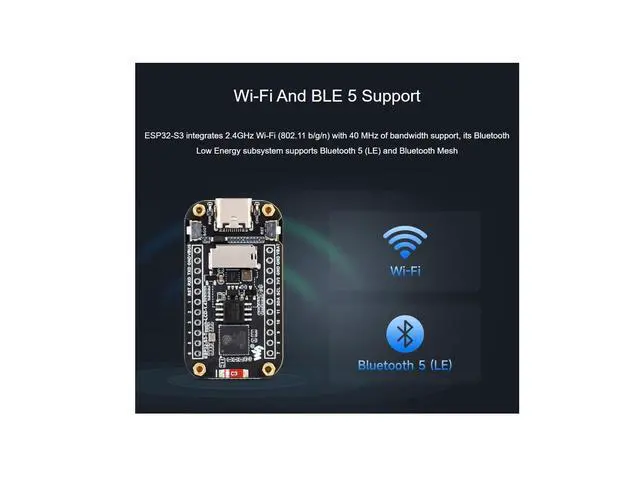

- Wi-Fi And BLE 5 Support.ESP32-S3 integrates 2.4GHz Wi-Fi (802.11 b/g/n) with 40 MHz of bandwidth support, its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh

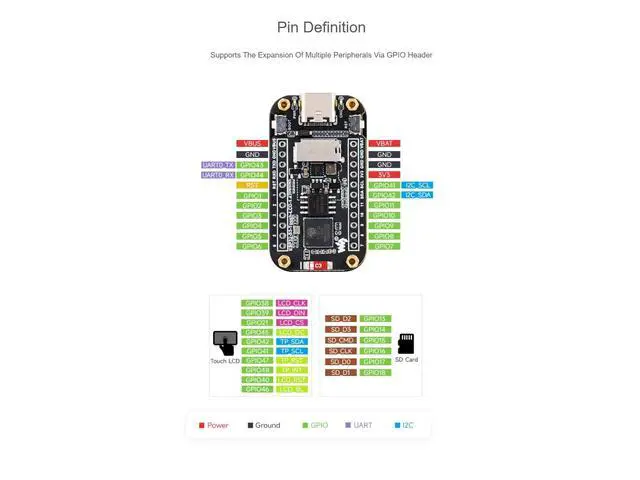

- Pin Definition.Supports The Expansion Of Multiple Peripherals Via GPIO Header
- AXS5106L Touch Driver
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Usage InstructionsESP32-S3-Touch-LCD- 1.47 -M currently provides two development tools and frameworks, Arduino IDE and ESP-IDF, providing flexible development options, you can choose the right development tool according to your project needs and personal habits. FeaturesESP32-S3-Touch-LCD- 1.47 -M uses ESP32-S3R8 chip with 2.4GH z WiFi and Bluetooth BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 1.47 inch IPS display can smoothly run GUI programs such as LVGL. Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequencySupports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with onboard antennaBuilt-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
Onboard 1.47 inch capacitive touch LCD display, 172320 resolution, 262K colorAdapting multiple IO interfaces, supports full-speed USB standardOnboard TF card slot for external TF card storage of pictures or filesSupports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenariosLCD
SpecificationsDISPLAY SIZE: 1.47 inchDISPLAY
DRIVER: JD9853DISPLAY
INTERFACE: 4-wire
SPIDISPLAY PANEL:
IPSRESOLUTION: 172 320 pixelsTOUCH
DRIVER: AXS5106LTOUCH
INTERFACE: I2CTOUCH
TYPE: CapacitivePackage ContentESP32-S3-Touch-LCD- 1.47 with pre-soldered header 1
Onboard 1.47 inch capacitive touch LCD display, 172320 resolution, 262K colorAdapting multiple IO interfaces, supports full-speed USB standardOnboard TF card slot for external TF card storage of pictures or filesSupports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenariosLCD
SpecificationsDISPLAY SIZE: 1.47 inchDISPLAY
DRIVER: JD9853DISPLAY
INTERFACE: 4-wire
SPIDISPLAY PANEL:
IPSRESOLUTION: 172 320 pixelsTOUCH
DRIVER: AXS5106LTOUCH
INTERFACE: I2CTOUCH
TYPE: CapacitivePackage ContentESP32-S3-Touch-LCD- 1.47 with pre-soldered header 1
