waveshare ESP32-P4-WIFI6-POE-ETH Development Board Kit Based on ESP32-P4 and ESP32-C6, Integrated PoE Module, Supports Wi-Fi 6 and Bluetooth 5, with MIPI-CSI/DSI, USB OTG 2.0, Ethernet Port, etc.
- ESP32-P4-WIFI6-POE-ETH multimedia development board adopts ESP32-P4 and ESP32-C6, with RISC-V 32-bit dual-core and single-core processors, supports Wi-Fi 6 and BLE 5 wireless connections and other functions through SDIO
- 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP Static RAM, 8 KB TCM, 32MB PSRAM in the chip's package, with onboard 32MB Nor Flash

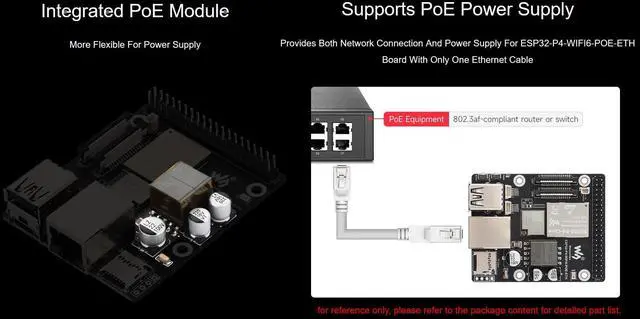

- Integrated PoE Module for PoE power supply, with rich human-machine interfaces such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0 TF card slot, microphone, speaker header and RTC Batt. header, etc. Adapting 2*20 GPIO headers with 28 x remaining programmable GPIOs

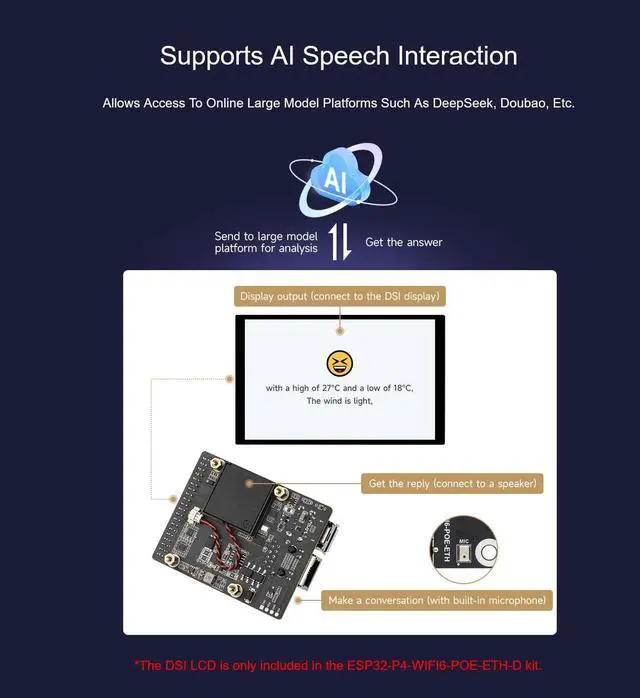

- Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder
- Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

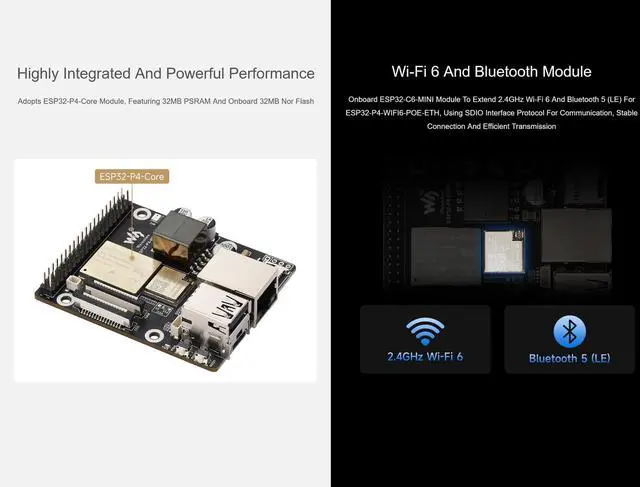

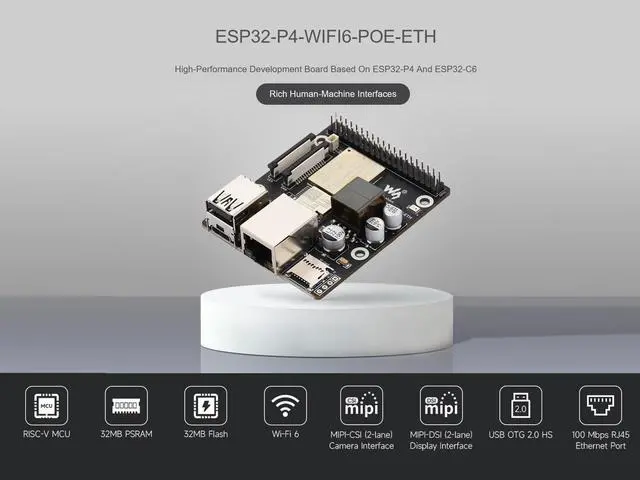

OverviewESP32-P4-WIFI6-POE-ETH is a multimedia development board based on ESP32-P4 and ESP32-C6, Supports Wi-Fi 6 and Bluetooth 5 (LE) wireless connectivity. It features rich Human-Machine interfaces, including MIPI-CSI (with integrated Image Signal Processor), MIPI-DSI, SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, TWAI, etc. Additionally, it supports USB OTG 2.0 HS, onboard RJ45 Ethernet port with PoE functionality. The ESP32-P4 adopts a 360MHz dual-core RISC-V processor and supports up to 32MB PSRAM, featuring USB 2.0, MIPI-CSI / DSI, H.
264 encoder, and other peripherals, meeting the needs for low-cost, high-performance, and low-power multimedia development. It also integrates a Digital Signature Peripheral and a dedicated Key Management Unit, ensuring secure data and operations. FeaturesHigh-performance MCU with RISC-V 32-bit dual-core and single-core processors128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP Static RAM, 8 KB TCM32MB PSRAM in the chip's package, with onboard 32MB Nor FlashPowerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoderCommonly used peripherals such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0 TF card slot, microphone, speaker header and RTC Batt.
header, etc. Adapting 2*20 GPIO headers with 28 x remaining programmable

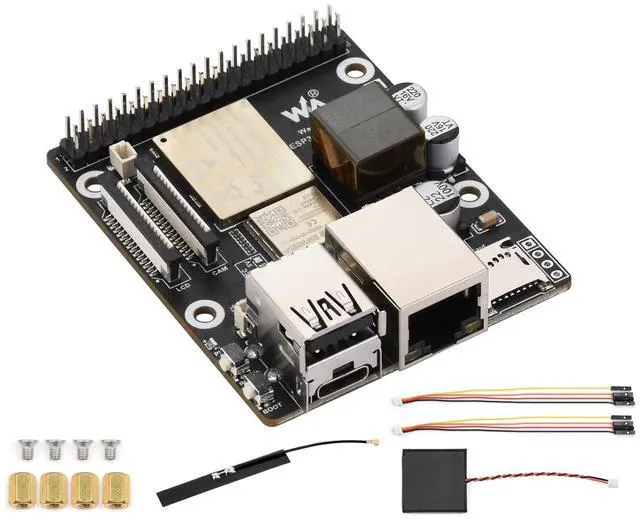

GPIOsSecurity features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege SeparationPackage ContentESP32-P4-WIFI6-POE-ETH x1SH 1.0 4PIN cable ~150mm x21217 8 2W speaker x 12.4G antenna x1Screws pack x1NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
264 encoder, and other peripherals, meeting the needs for low-cost, high-performance, and low-power multimedia development. It also integrates a Digital Signature Peripheral and a dedicated Key Management Unit, ensuring secure data and operations. FeaturesHigh-performance MCU with RISC-V 32-bit dual-core and single-core processors128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP Static RAM, 8 KB TCM32MB PSRAM in the chip's package, with onboard 32MB Nor FlashPowerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoderCommonly used peripherals such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0 TF card slot, microphone, speaker header and RTC Batt.
header, etc. Adapting 2*20 GPIO headers with 28 x remaining programmable
GPIOsSecurity features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege SeparationPackage ContentESP32-P4-WIFI6-POE-ETH x1SH 1.0 4PIN cable ~150mm x21217 8 2W speaker x 12.4G antenna x1Screws pack x1NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
