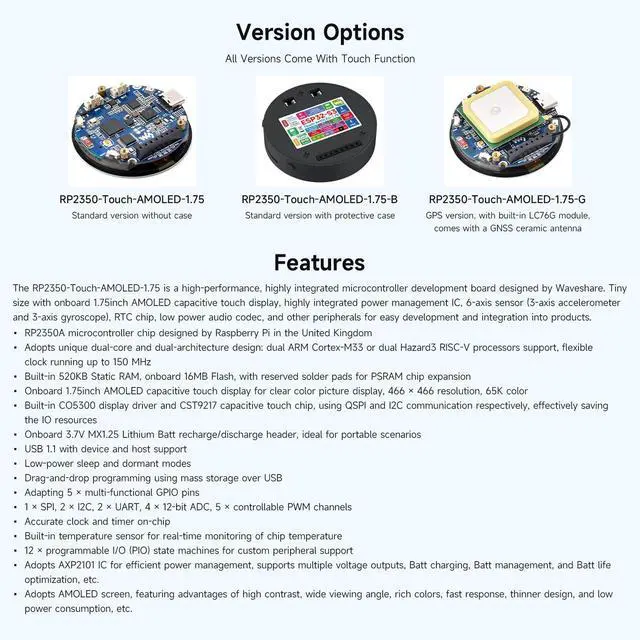

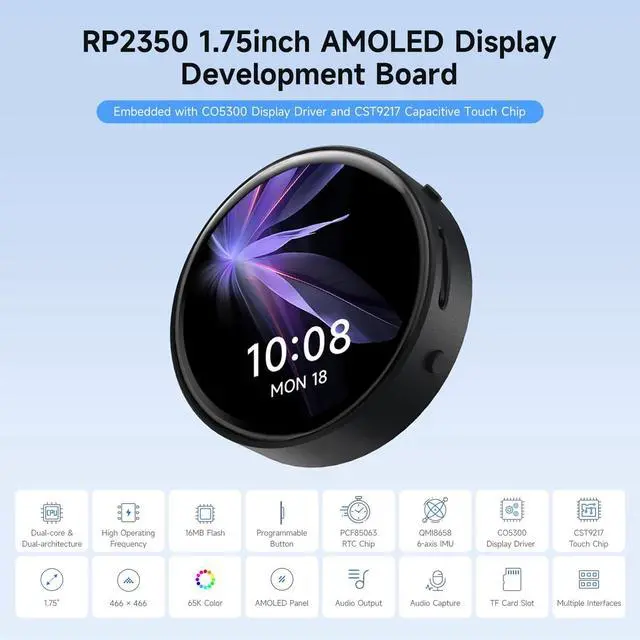

Waveshare RP2350 1.75inch AMOLED Display Development Board, 466466 Resolution, 65K Color, Dual-core & Dual-Architecture, onboard Accelerometer/Gyroscope IMU Sensor, GPS Version
- Architecture & Performance: Features a unique dual-core, dual-architecture design supporting dual ARM Cortex-M33 or dual Hazard3 RISC-V processors, with a flexible clock running up to 150 MHz.
- Storage Configuration: Built-in 520KB Static RAM and 16MB onboard Flash, with reserved solder pads for PSRAM chip expansion to meet high-capacity data storage needs.
- Display & Touch Control: Equipped with a 1.75-inch AMOLED capacitive touch display (466 466 resolution, 65K colors), paired with CO5300 display driver and CST9217 touch chip (using QSPI and I2C communication respectively) to save IO resources.
- Interface & Peripherals: Supports USB 1.1 (device and host modes), 5 multi-functional GPIO pins, 1 SPI, 2 I2C, 2 UART, 4 12-bit ADCs, and 5 controllable PWM channels, enabling diverse peripheral connections.
- Power & Functionality: Adopts AXP2101 IC for efficient power management (multiple voltage outputs, battery charging, management, and life optimization); includes a built-in tem
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Architecture & Performance: Features a unique dual-core, dual-architecture design supporting dual ARM Cortex-M33 or dual Hazard3 RISC-V processors, with a flexible clock running up to 150 MHz.
^^ Storage Configuration: Built-in 520KB Static RAM and 16MB onboard Flash, with reserved solder pads for PSRAM chip expansion to meet high-capacity data storage needs. ^^

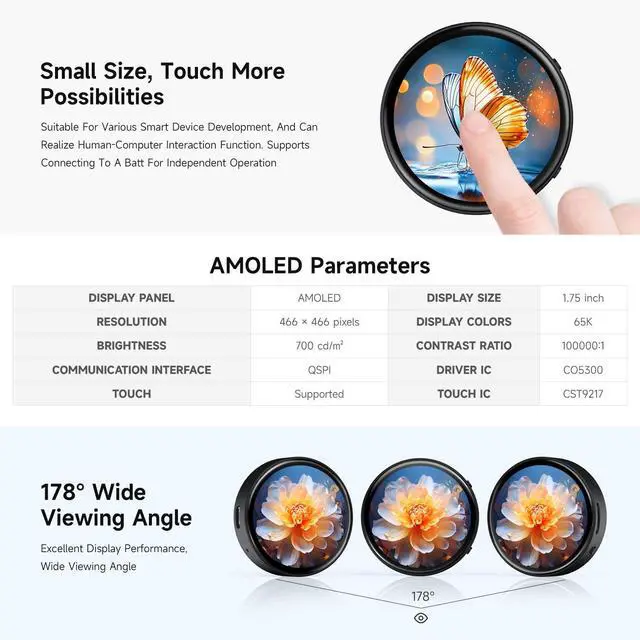

Display & Touch Control: Equipped with a 1.75 -inch AMOLED capacitive touch display (466 466 resolution, 65K colors), paired with CO5300 display driver and CST9217 touch chip (using QSPI and I2C communication respectively) to save IO resources.
^^ Interface & Peripherals: Supports USB 1.1 (device and host modes), 5 multi-functional GPIO pins, 1 SPI, 2 I2C, 2 UART, 4 12-bit ADCs, and 5 controllable PWM channels, enabling diverse peripheral connections.
^^ Power & Functionality: Adopts AXP2101 IC for efficient power management (multiple voltage outputs, battery charging, management, and life optimization); includes a built-in temperature sensor, low-power sleep/dormant modes, and supports USB drag-and-drop programming, ideal for portable scenarios.
^^ Storage Configuration: Built-in 520KB Static RAM and 16MB onboard Flash, with reserved solder pads for PSRAM chip expansion to meet high-capacity data storage needs. ^^
Display & Touch Control: Equipped with a 1.75 -inch AMOLED capacitive touch display (466 466 resolution, 65K colors), paired with CO5300 display driver and CST9217 touch chip (using QSPI and I2C communication respectively) to save IO resources.
^^ Interface & Peripherals: Supports USB 1.1 (device and host modes), 5 multi-functional GPIO pins, 1 SPI, 2 I2C, 2 UART, 4 12-bit ADCs, and 5 controllable PWM channels, enabling diverse peripheral connections.
^^ Power & Functionality: Adopts AXP2101 IC for efficient power management (multiple voltage outputs, battery charging, management, and life optimization); includes a built-in temperature sensor, low-power sleep/dormant modes, and supports USB drag-and-drop programming, ideal for portable scenarios.
