ESP32-S3 1.54inch LCD Touch Display Development Board, Onboard 240240 262K Color Display, 6-Axis Sensor, Dual Microphones Array, Supports 2.4GHz Wi-Fi and BLE 5, Supports AI Speech Interaction

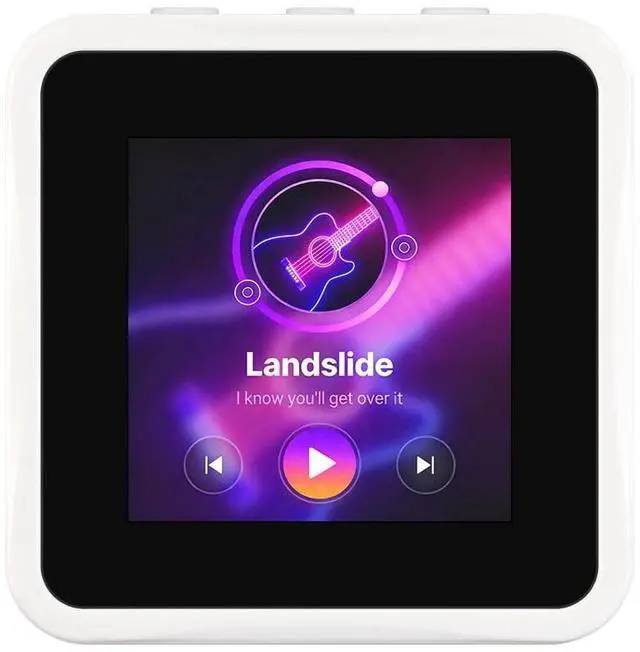

OverviewESP32-S3-Touch-LCD- 1.54 development board, featuring a custom-molded square plastic case, onboard 1.54 inch LCD display, 6-axis sensor, dual microphones array, and TF card slot, etc. It supports fun interactive mini-games, voice wake-up, conversation interruption, noise reduction, and echo cancellation. It allows access to online AI large model platforms, enabling intelligent voice interaction and continuous upgrades. The factory firmware includes built-in functions such as AI conversation, audio and video playback, photo album, text reading, and a gravity ball game. It can be used directly as an AI chatting toy, while also supporting secondary development.

FeaturesEquipped with high-performance ESP32-S3R8 32-bit LX7 dual-core processor, up to 240MHz main frequencySupports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with onboard antennaBuilt-in 512KB Static RAM, 384KB ROM, with onboard 8MB PSRAM and external 16MB flashType-C portOnboard 1.54 inch LCD display for clear color picture display, 240 240 resolution, 262K colorOnboard ES7210 audio encoding chip for dual microphones audio capture and echo cancellationOnboard ES8311 audio codec chip, NS4150B amplifier chip, microphones, and speakerOnboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture to expand applicationsAdapting I2C, UART, and other pin pads for external device connection and debuggingOnboard three customizable function buttons for operations such as single-click, double-clickOnboard 3.7V MX 1.25 Lithium Batt recharge/discharge headerOnboard TF card slot for extended storage and fast data transferPackage ContentESP32-S3-Touch-LCD- 1.54 host x1PC insulating sheet x1NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
