ESP32-S3 1.54inch e-Paper Development Board, 200 200 Resolution, Black/White Display Color, Onboard Audio Codec Chip, Supports 2.4GHz Wi-Fi and BLE 5, Supports AI Speech Interaction

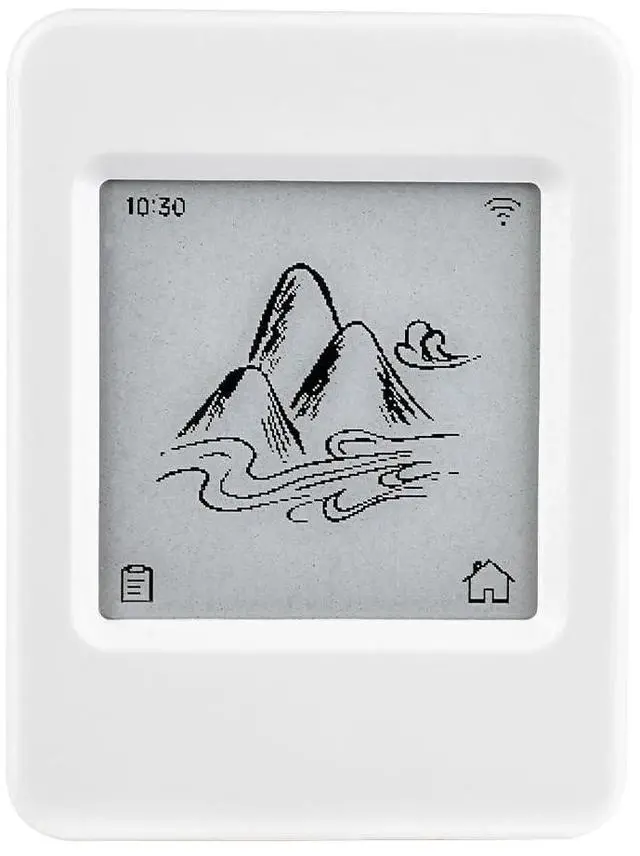

OverviewESP32-S3-ePaper- 1.54 is an e-Paper AIoT development board, equipped with ESP32-S3 microcontroller, which supports Wi-Fi and BLE dual-mode communication. Onboard 1.54 inch e-paper display, features ultra-low power consumption and ambient light readability, suitable for portable devices and long-Batt-life scenarios. Integrated with an RTC chip, SHTC3 temperature and humidity sensor, TF card slot, low-power audio codec chip circuit, and Lithium Batt recharge management circuit. Reserved interfaces including USB, UART, I2C, and GPIO for easy functionality expansion and sensor connectivity, providing a flexible and reliable development platform for IoT terminals, electronic tags, portable displays, and other applications.

FeaturesAdopts high-performance 32-bit LX7 dual-core processor, up to 240MHz main frequencySupports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with onboard antennaBuilt-in 512KB Static RAM, 384KB ROM, with integrated 8MB Flash and 8MB PSRAMOnboard 1.54 inch e-paper display, 200 200 resolution, features high contrast and wide viewing angleOnboard audio codec chip, supports voice capture and playback, enabling AI voice interaction applicationsOnboard PCF85063 RTC chip and SHTC3 temperature & humidity sensor for accurate RTC management and environmental monitoringOnboard TF card slot for external storage of images or filesOnboard programmable PWR and BOOT side buttons for customized function developmentReserved 2 6 2.54 mm pitch pin header for convenient external expansionPackage
ContentESP32-S3-ePaper- 1.54 x1NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
