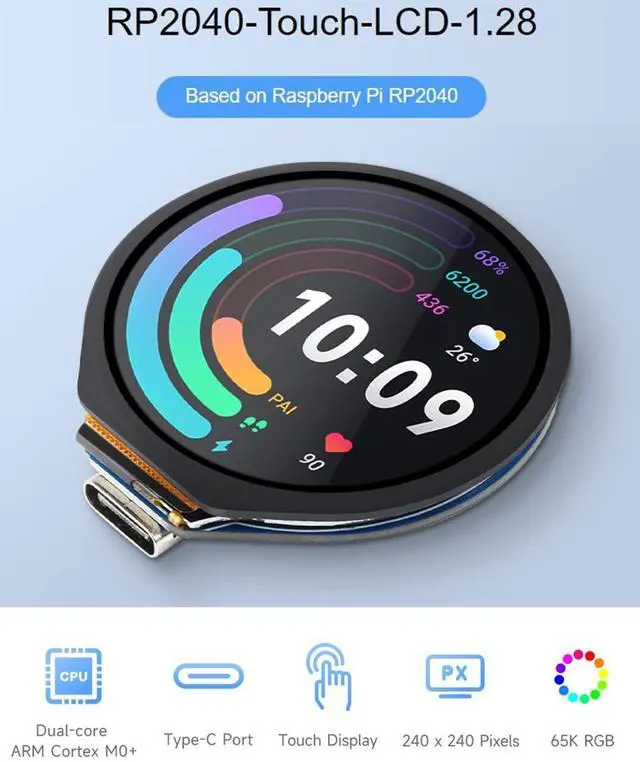

waveshare RP2040-Touch-LCD-1.28 Based on Raspberry Pi RP2040 Board with 1.28inch Round Touch LCD, 240x240 Pixels 65K RGB Colors IPS LCD Display, Accelerometer and Gyroscope Sensor Dual-Core Processor
- RP2040-Touch-LCD-1.28, Based on Raspberry Pi RP2040, onboard 1.28inch capacitive touch display, Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), and so on, which makes it easy for you to develop and integrate it into products quickly.

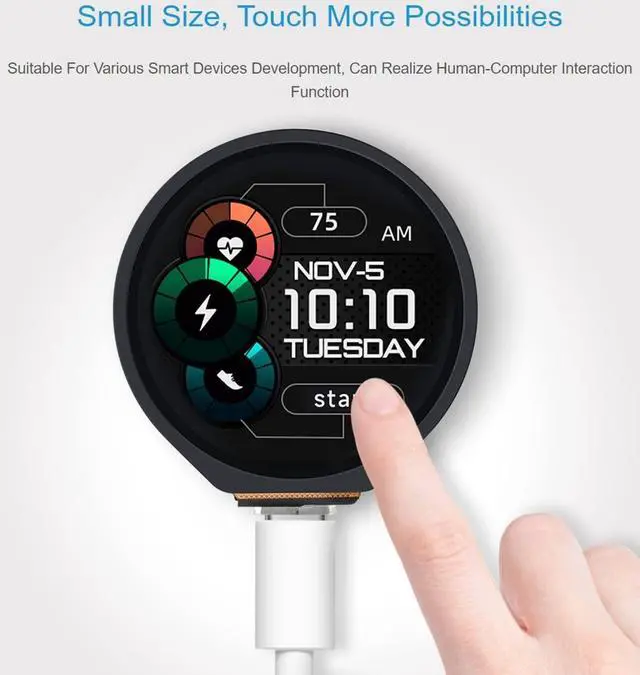

- Small size, touch more possibilities: Suitable for various smart devices development, can realize human-computer interaction function
- Dual-Core Arm Processor: Based on Raspberry Pi RP2040 , Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
- Type-C connector, keeps it up to date, easier to use. USB 1.1 with device and host support.
- Support C/C++, MicroPython, Ardui: Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

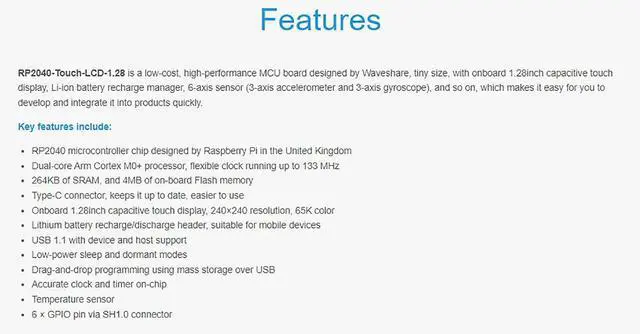

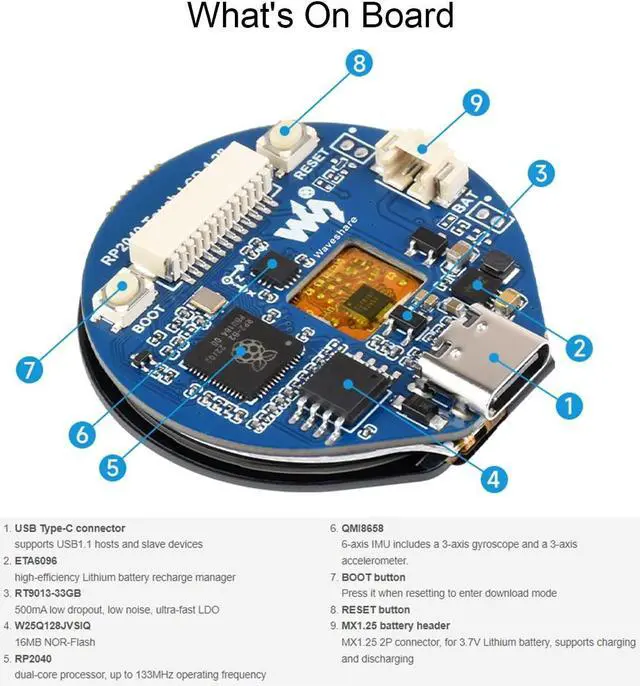

RP2040 Microcontroller Development Board, with 1.28 inch Round Touch LCD, Compact size, Accelerometer And Gyroscope SensorOverviewRP2040-Touch-LCD- 1.28 is a low-cost, tiny size, with onboard 1.28 inch capacitive touch display, Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), and so on, which makes it easy for you to develop and integrate it into products quickly. FeaturesRP2040 microcontroller chip designed by Raspberry Pi in the United KingdomDual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz264KB of SRAM, and 4MB of on-board Flash memoryType-C connector, keeps it up to date, easier to useOnboard 1.28 inch capacitive touch display, 240240 resolution, 65K colorLithium battery recharge/discharge header, suitable for mobile devicesUSB 1.1 with device and host supportLow-power sleep and dormant modesDrag-and-drop programming using mass storage over USB
Accurate clock and timer on-chipTemperature sensor6 GPIO pin via SH 1.0 connectorSpecification1)LCD
ParametersTouch Chip: CST816STouch
Port: I2CDisplay
Chip: GC9A01ADisplay
Interface: SPI
Resolution: 240 (H) RGB x 240 (V)
Display Size: 32.4 mmDisplay
Panel: IPS
Pixel Pitch: 0.135H x 0.135V mm2)
IMU ParametersSensor:
QMI8658CAccelerometer:
---Resolution: 16 bits---Measuring
Range (Optional): 2, 4, 8
16gGyroscope:
---Resolution: 16 bits---Measuring
Range (Optional): 16, 32, 64, 128, 256, 512, 1024, 2048/secOnline Development Resources /User

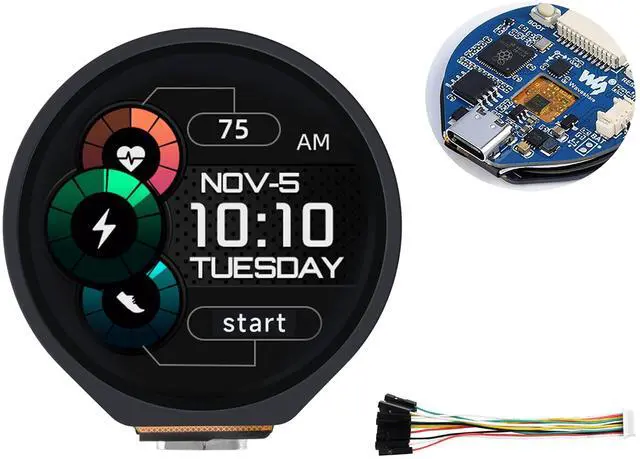

Manual: // bit. ly/3oTVPv2Package ContentRP2040-Touch-LCD- 1.28 x1SH 1.0 12PIN cable x1
Accurate clock and timer on-chipTemperature sensor6 GPIO pin via SH 1.0 connectorSpecification1)LCD
ParametersTouch Chip: CST816STouch
Port: I2CDisplay
Chip: GC9A01ADisplay
Interface: SPI
Resolution: 240 (H) RGB x 240 (V)
Display Size: 32.4 mmDisplay
Panel: IPS
Pixel Pitch: 0.135H x 0.135V mm2)
IMU ParametersSensor:
QMI8658CAccelerometer:
---Resolution: 16 bits---Measuring
Range (Optional): 2, 4, 8
16gGyroscope:
---Resolution: 16 bits---Measuring
Range (Optional): 16, 32, 64, 128, 256, 512, 1024, 2048/secOnline Development Resources /User
Manual: // bit. ly/3oTVPv2Package ContentRP2040-Touch-LCD- 1.28 x1SH 1.0 12PIN cable x1
