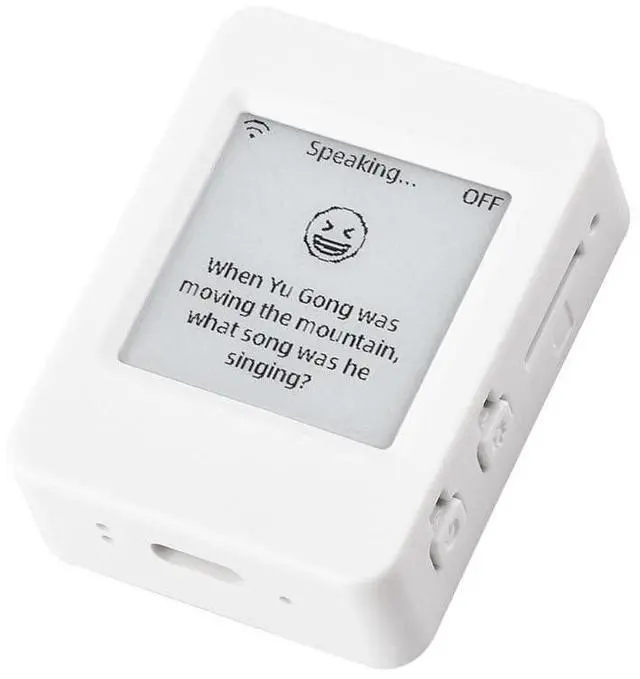

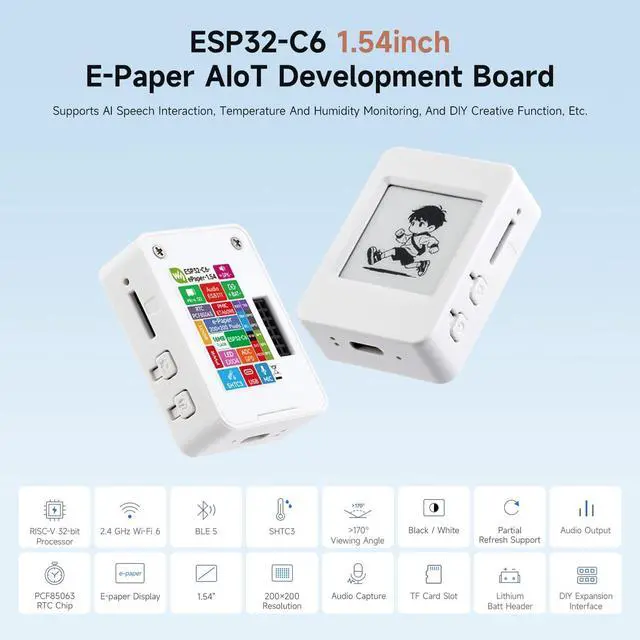

Waveshare ESP32-C6 1.54inch e-Paper AIoT Development Board, 200 200 Resolution, Supports Wi-Fi, BLE 5, and Online LLM Platforms, NO BAT
- Equipped with high-performance ESP32-C6 32-bit RISC-V processor, up to 160MHz main frequency. Supports Wi-Fi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance
- Built-in 512KB HP Static RAM, 16KB LP Static RAM, 320KB ROM, and external 16MB Flash memory. Onboard 1.54inch e-paper display, 200 200 resolution, features high contrast and wide viewing angle

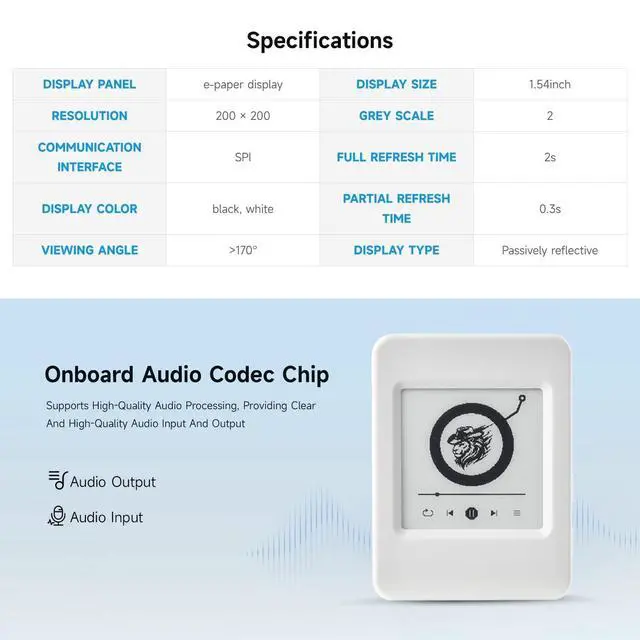

- Onboard audio codec chip, supports voice capture and playback, enabling AI voice interaction applications. Onboard PCF85063 RTC chip and SHTC3 temperature & humidity sensor for accurate RTC management and environmental monitoring
- Onboard TF card slot for external storage of images or files. Onboard programmable PWR and BOOT side buttons for customized function development
- Reserved 2 6 2.54mm pitch pin header for convenient external expansion
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

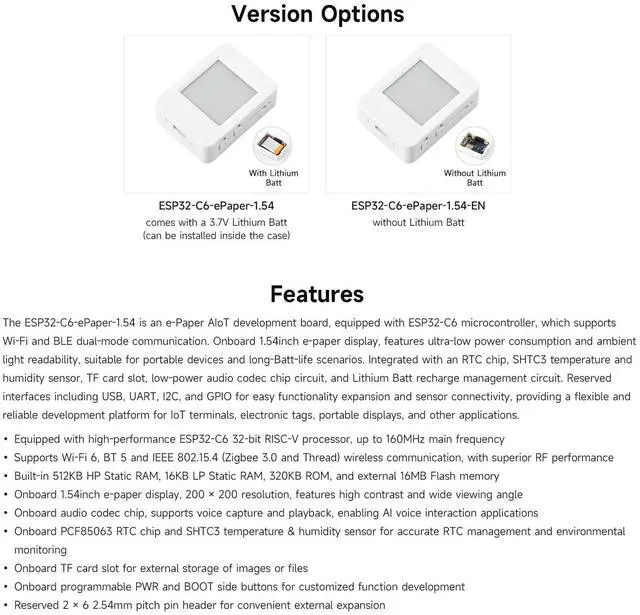

Equipped with high-performance ESP32-C6 32-bit RISC-V processor, up to 160MHz main frequency. Supports Wi-Fi 6, Bluetooth 5 and IEEE 802.15. 4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance ^^ Built-in 512KB HP Static RAM, 16KB LP Static RAM, 320KB ROM, and external 16MB Flash memory. Onboard 1.54 inch e-paper display, 200 200 resolution, features high contrast and wide viewing angle ^^ Onboard audio codec chip, supports voice capture and playback, enabling AI voice interaction applications. Onboard PCF85063 RTC chip and SHTC3 temperature & humidity sensor for accurate RTC management and environmental monitoring ^^ Onboard TF card slot for external storage of images or files.
Onboard programmable PWR and BOOT side buttons for customized function development ^^ Reserved 2 6 2.54 mm pitch pin header for convenient external expansion
Onboard programmable PWR and BOOT side buttons for customized function development ^^ Reserved 2 6 2.54 mm pitch pin header for convenient external expansion
