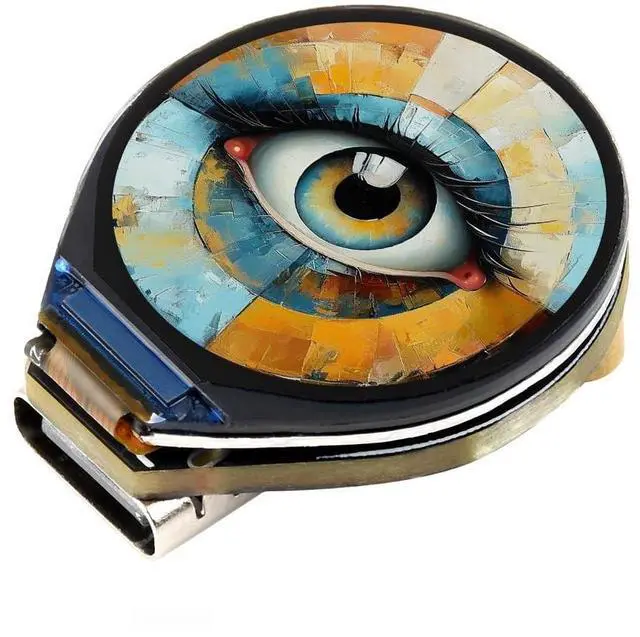

Waveshare ESP32-C3 0.71inch Round Display Development Board, 160160 Resolution, Based on ESP32-C3 Single-core Processor, SPI Interface Display
- ESP32-C3-LCD-0.71 is a microcontroller development board with 2.4GHz WiFi and Bluetooth BLE 5 support. Onboard 0.71inch LCD display which can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI applications based on the ESP32-C3 such as low-power AI emulation eyes, watches, etc.
- Low-power SoC equipped with RISC-V 32-bit single-core processor, up to 160MHz main frequency. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE)
- 400KB of SRAM and 384KB ROM, and 4MB of onboard Flash memory. Onboard 0.71inch LCD display, 160160 resolution, IPS panel
- Built-in battery recharge management circuit, reserved VBAT solder joints, for connecting external Lithium battery power supply. Adapting some GPIO solder pads for external expansion applications
- Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
- Rich WiKi Resources: We pro
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

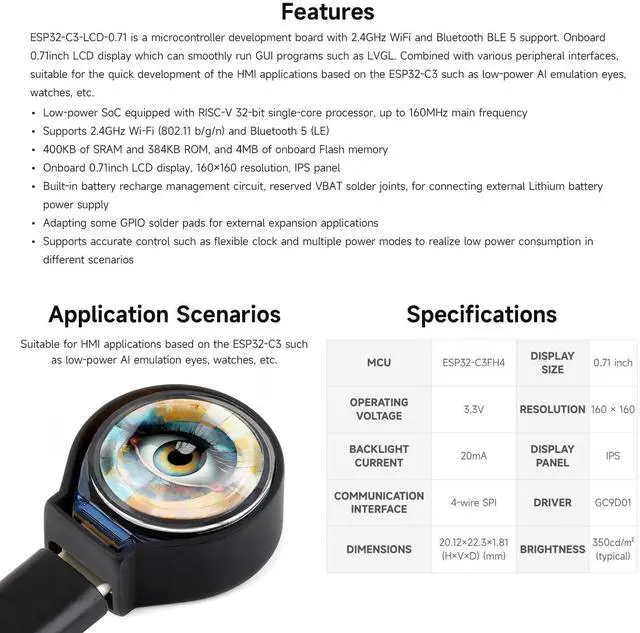

ESP32-C3-LCD- 0.71 is a microcontroller development board with 2.4GH z WiFi and Bluetooth BLE 5 support. Onboard 0.71 inch LCD display which can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI applications based on the ESP32-C3 such as low-power AI emulation eyes, watches, etc. ^^ Low-power SoC equipped with RISC-V 32-bit single-core processor, up to 160MHz main frequency. Supports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE) ^^ 400KB of SRAM and 384KB ROM, and 4MB of onboard Flash memory.
Onboard 0.71 inch LCD display, 160160 resolution, IPS panel ^^ Built-in battery recharge management circuit, reserved VBAT solder joints, for connecting external Lithium battery power supply. Adapting some GPIO solder pads for external expansion applications ^^ Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios ^^
Rich WiKi Resources: We provide official Wiki resources, please contact us for more information.
Onboard 0.71 inch LCD display, 160160 resolution, IPS panel ^^ Built-in battery recharge management circuit, reserved VBAT solder joints, for connecting external Lithium battery power supply. Adapting some GPIO solder pads for external expansion applications ^^ Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios ^^
Rich WiKi Resources: We provide official Wiki resources, please contact us for more information.
