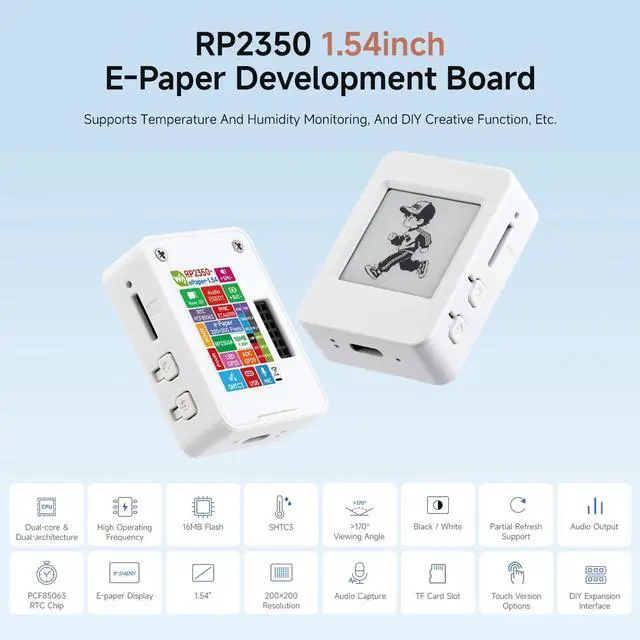

Waveshare RP2350A 1.54inch E-Paper Display Development Board, 200 200 Resolution, Dual-core & Dual-Architecture, 12 Programmable I/O (PIO) State Machines, with Touch Control, No Batt
- RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom. Adopts unique dual-core and dual-architecture design: dual ARM Cortex-M33 or dual Hazard3 RISC-V processors support, flexible clock running up to 150 MHz
- Built-in 520KB Static RAM, with onboard 16MB Flash. Type-C port for easier use
- Onboard 1.54inch e-paper display, 200 200 resolution, features high contrast and wide viewing angle. USB 1.1 with device and host support
- Low-power sleep and dormant modes. Drag-and-drop programming using mass storage over USB. Adapting 7 GPIO pins and USB+/- pins
- 1 I2C, 1 UART, 2 12-bit ADC, 6 controllable PWM channels. Accurate clock and timer on-chip. Built-in temperature sensor for real-time monitoring of chip temperature. 12 programmable I/O (PIO) state machines for custom peripheral support
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom. Adopts unique dual-core and dual-architecture design: dual ARM Cortex-M33 or dual Hazard3 RISC-V processors support, flexible clock running up to 150 MHz ^^ Built-in 520KB Static RAM, with onboard 16MB Flash. Type-C port for easier use ^^ Onboard 1.54 inch e-paper display, 200 200 resolution, features high contrast and wide viewing angle. USB 1.1 with device and host support ^^ Low-power sleep and dormant modes. Drag-and-drop programming using mass storage over USB. Adapting 7 GPIO pins and USB+/- pins ^^ 1 I2C, 1 UART, 2 12-bit ADC, 6 controllable PWM channels. Accurate clock and timer on-chip. Built-in temperature sensor for real-time monitoring of chip temperature. 12 programmable I/O (PIO) state machines for custom peripheral support
