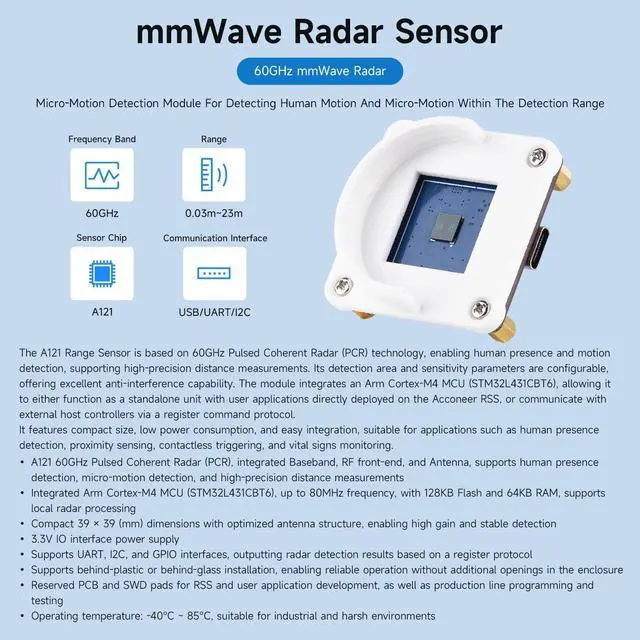

Waveshare A121 60GHz Mmwave Radar Micro-Motion Detection Module, Based On Pulsed Coherent Radar (PCR) Technology, Supports High-Precision Distance Measurements, with Holder
- Integrated Baseband, RF front-end, and Antenna; supports human presence detection, micro-motion detection, and high-precision distance measurements.
- Built-in Arm Cortex-M4 MCU (STM32L431CBT6, up to 80MHz) with 128KB Flash & 64KB RAM for local radar processing.
- Compact 3939mm size with optimized antenna structure, delivering high gain and stable detection.

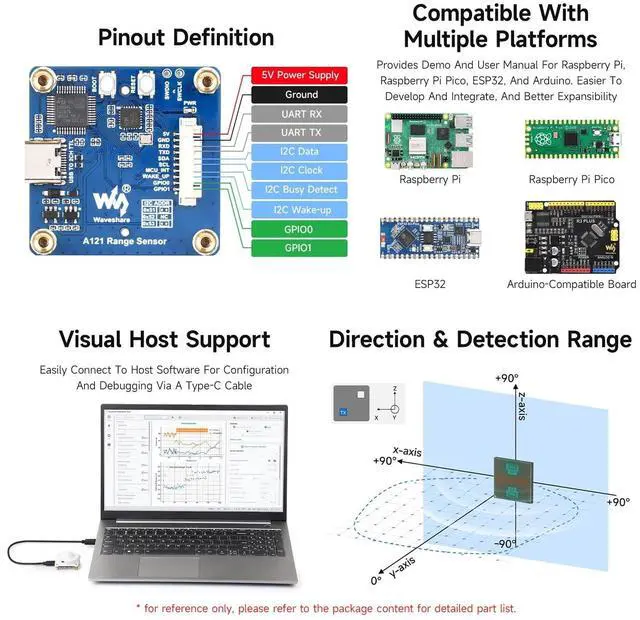

- 3.3V IO power supply; supports UART/I2C/GPIO interfaces, outputting results via register protocol.
- -40C~85C operating temp (suitable for industrial/harsh environments); supports behind-plastic/glass installation.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Integrated Baseband, RF front-end, and Antenna; supports human presence detection, micro-motion detection, and high-precision distance measurements. ^^ Built-in Arm Cortex-M4 MCU (STM32L431CBT6, up to 80MHz) with 128KB Flash & 64KB RAM for local radar processing. ^^ Compact 3939mm size with optimized antenna structure, delivering high gain and stable detection. ^^ 3.3V IO power supply; supports UART/I2C/GPIO interfaces, outputting results via register protocol. ^^ -40C~85C operating temp (suitable for industrial/harsh environments); supports behind-plastic/glass installation.
