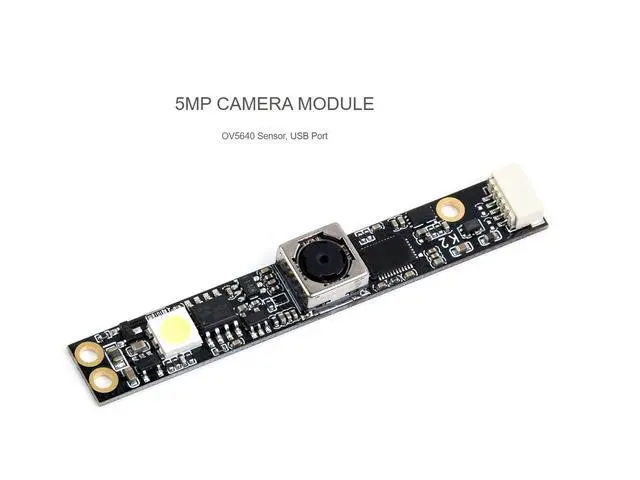

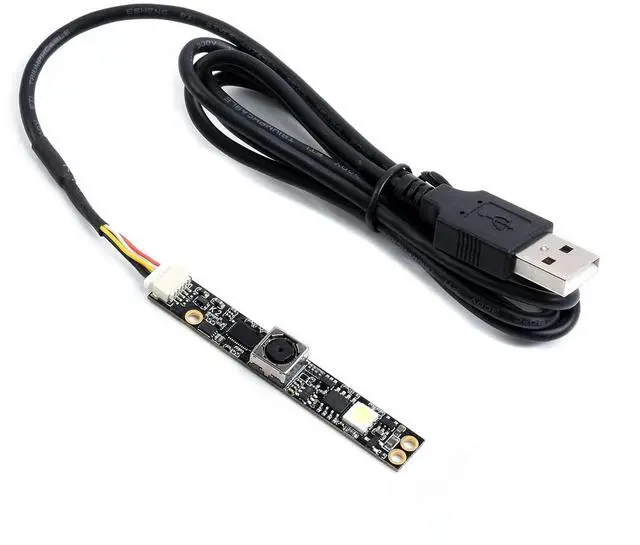

Main image of waveshare OV5640 5MP USB Camera Module Auto Focus Camera Webcam Board for Raspberry Pi,Jetson Nano,PC, 68 Field of View 1080P Video Recording,Supports Windows Linux

Alt view image 2 of 5 - waveshare OV5640 5MP USB Camera Module Auto Focus Camera Webcam Board for Raspberry Pi,Jetson Nano,PC, 68 Field of View 1080P Video Recording,Supports Windows Linux

Alt view image 3 of 5 - waveshare OV5640 5MP USB Camera Module Auto Focus Camera Webcam Board for Raspberry Pi,Jetson Nano,PC, 68 Field of View 1080P Video Recording,Supports Windows Linux

Alt view image 4 of 5 - waveshare OV5640 5MP USB Camera Module Auto Focus Camera Webcam Board for Raspberry Pi,Jetson Nano,PC, 68 Field of View 1080P Video Recording,Supports Windows Linux

Alt view image 5 of 5 - waveshare OV5640 5MP USB Camera Module Auto Focus Camera Webcam Board for Raspberry Pi,Jetson Nano,PC, 68 Field of View 1080P Video Recording,Supports Windows Linux

Shop All WaveShare Products | Visit To the Internet media Store

waveshare OV5640 5MP USB Camera Module Auto Focus Camera Webcam Board for Raspberry Pi,Jetson Nano,PC, 68 Field of View 1080P Video Recording,Supports Windows Linux

OV5640 5MP USB 2.0 Camera Board Compatible with Raspberry Pi ,Jetson Nano ,PC
1/4 inch Sensor size,2.8 Aperture ,3.29 mm Focal length
68 Field of view,< 1% Distortion,AF Auto-Focus
2592 1944 Static image resolution ,Support MJPG, YUV422
CAMERA SIZE--8.5 8.5 mm;MODULE SIZE--9 62 mm

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Introduction USB Camera, OV5640 sensor. 5 megapixel. Supports UVC protocol. Compatible with Raspberry Pi, Jetson Nano Developer Kit, PCSpecification1. Pixel500 Megapxixel2. Resolution259219443.
Video: 15FPS 2592 x 1944 30FPS 1920 x 1080 30FPS 1280 x 7204. SensorOV56405. DSP Automatic white balance (AWB) \Automatic exposure (AEC) \Automatic gain control (AGC) 6. Camera Specification CCD Size1/4inch ApertureF 2.8 Focus LengthEFL 3.29 mm Field of ViewFOV68
Focus Type: Auto focus (B type), Fixed focus (C type) 7. InterfaceUSB 2.08. Image FormatMJPEGYUV4229. Working Temperature0C ~ 50C10. Dimension9mm62mm11. Support OSWindowsLinuxPackage Content OV5640 5MP USB Camera x1NoteDevelopment Resources is provided, please contact us if you have any problem.

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
CONTACT

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by To the Internet media Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

Item#: 9SIBM6CKZ35423
