waveshare ESP32-S3 AI Smart Speaker Development Board,Supports Noise Reduction and Echo Cancellation, Surround RGB Lighting,Supports External LCD Displays & Cameras

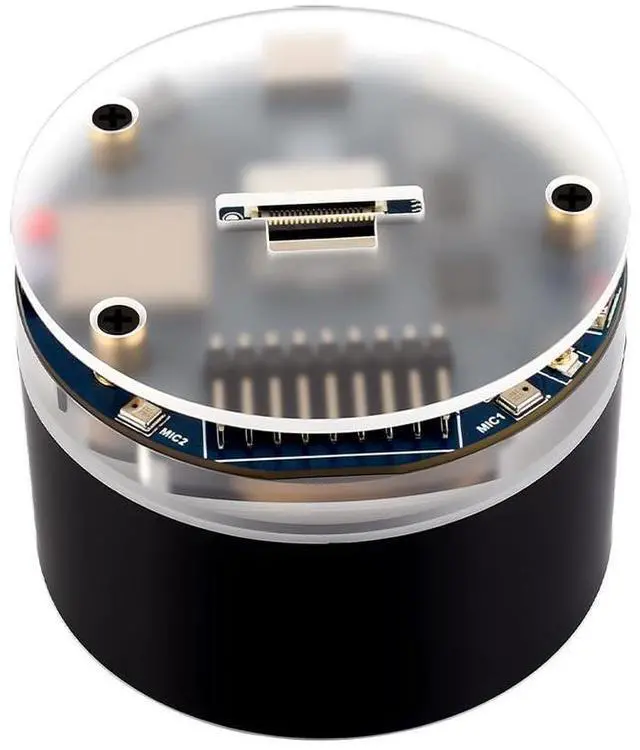

ESP32-S3 AI Smart Speaker Development Board, Onboard Dual Digital Microphone Array, Supports Noise Reduction And Echo Cancellation, Surround RGB LightingFeaturesThe ESP32-S3-AUDIO-Board is based on the ESP32-S3 with 2.4GH z Wi-Fi and Bluetooth 5 (LE) support, integrates high-capacity Flash and PSRAM, built-indual microphones, speaker, surround RGB LEDs, onboard multiple interfaces. It enables the rapid development of smart devices such as AI speakers, voice interaction systems, HMI screens and camera applications.
High-performance MCU: Adopts ESP32-S3R8 module with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequencyWireless
Connectivity: Supports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with onboard antennaStorage
Resources: Integrated 512KB SRAM, 384KB ROM, 8MB PSRAM, and external 16MB

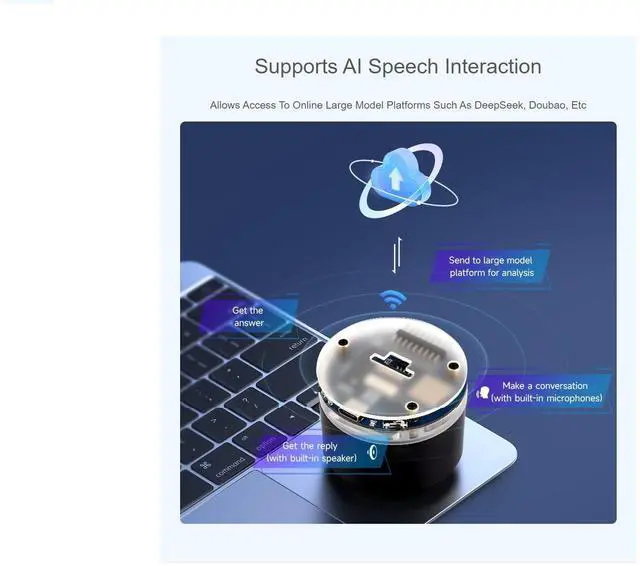

Flash memoryVoice Interaction: Dual microphone array with noise reduction and echo cancellation, suitable for accurate speech recognition and near/far-field wake-upClock
Management: Integrated PCF85063 RTC chip, supports power-off time retention for alarm, scheduled task, and wake-up functionsColorful
Lighting Effects: Onboard 7x surround RGB LEDs, programmable for a variety of dynamic effectsHMI
Interfaces: Multiple reserved buttons and battery switch for customized function developmentExpansion

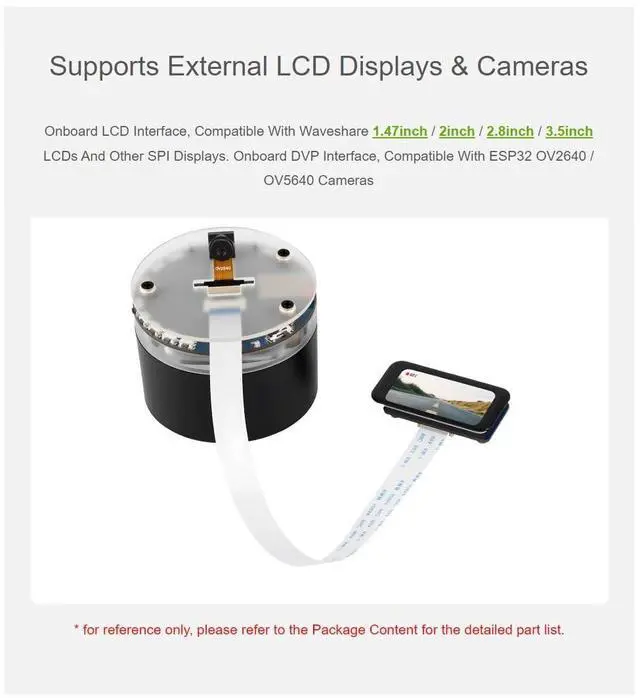

Interfaces: SPI LCD display interface (FPC connector / pin header)DVP camera interface (24pin connector) USB, I2C, and some I/O pins (compatible with display interface I/O pins)Multimedia

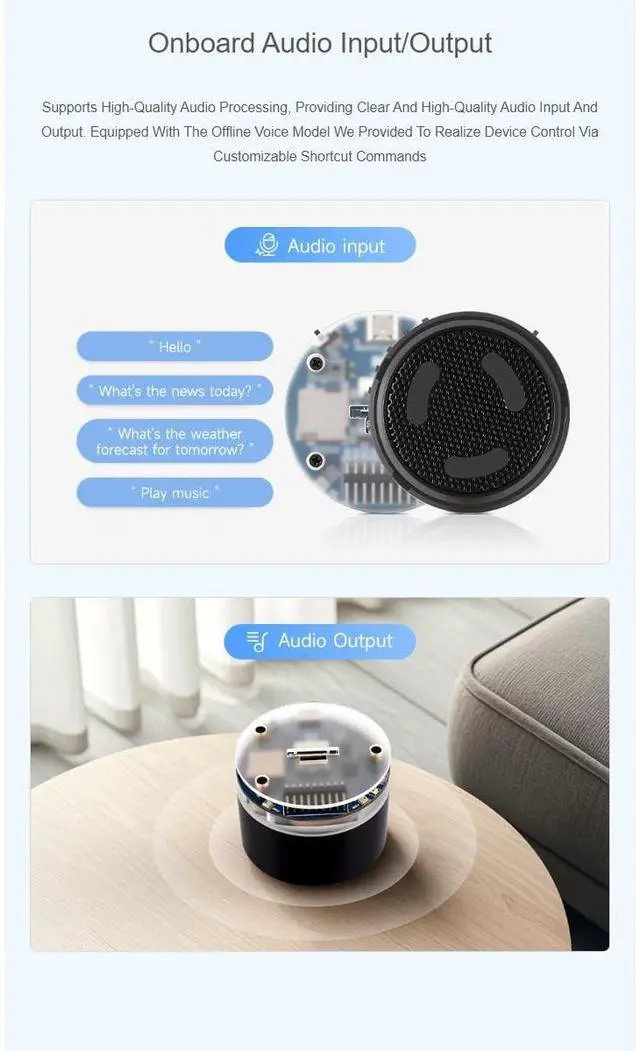

Features: Onboard audio decoding chip, dual microphones and speaker headerStorage
Expansion: Onboard TF card slot for storing audio files, etc.
Power Management: Built-in battery recharge management module, supports multiple power modes and low-power applicationsPackage ContentESP32-S3-AUDIO-Board x1OPTIONAL Lithium battery x1
