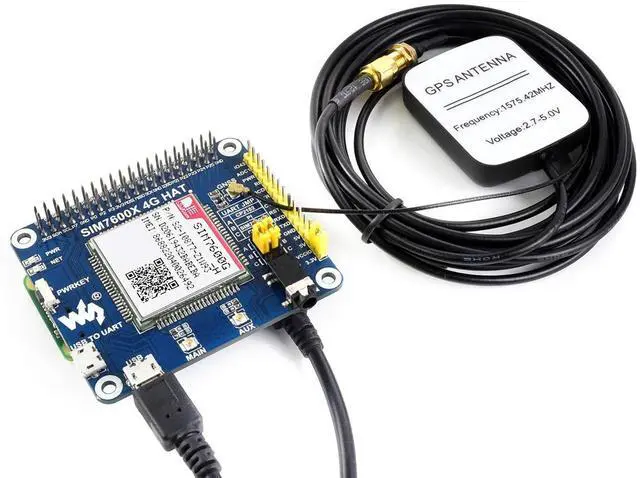

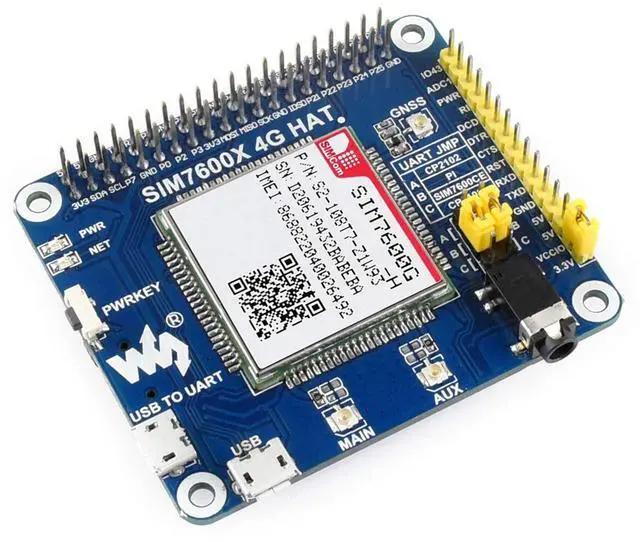

4G/3G/2G/GSM/GPRS/GNSS HAT for Raspberry Pi 4B/3B+/3B/2B/Zero/Zero W/WH and Jetson Nano/Ard/STM32,Based on SIM7600G-H,Support LTE CAT4 up to 150Mbps Wireless Communication etc (Globally Applica

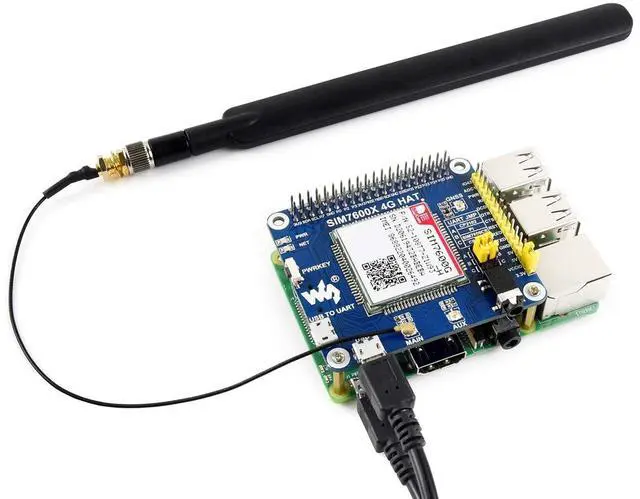

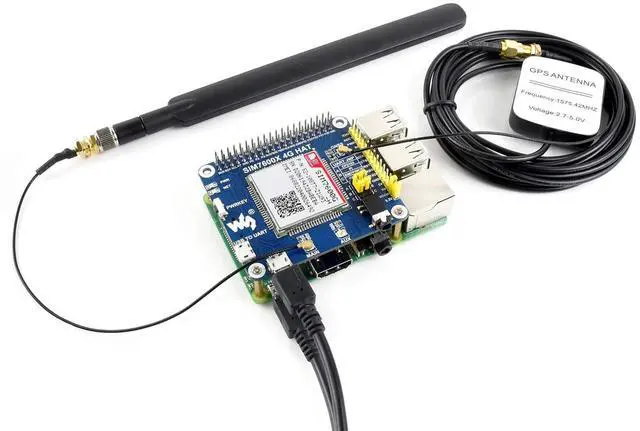

- The SIM7600G-H 4G HAT is a 4G/3G/2G communication and GNSS positioning module, which supports LTE CAT4 up to 150Mbps for downlink data transfer. it is pretty low power consumption. You can connect this 4G module with computer to surf the Internet, or attach it onto Raspberry Pi to enable functions like 4G high speed connection, wireless communication, making telephone call, sending SMS, global positioning, etc. (Globally Applicable)
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano. Breakout UART control pins, to connect with host boards like Arduino/STM32.
- Supports dial-up, telephone call, SMS, MMS, mail, TCP, UDP, DTMF, HTTP, FTP, etc. Supports GPS, BeiDou, Glonass, LBS base station positioning. Onboard USB interface, to test AT Commands, get GPS positioning data, and so on. Onboard CP2102 USB to UART converter, for serial debugging.

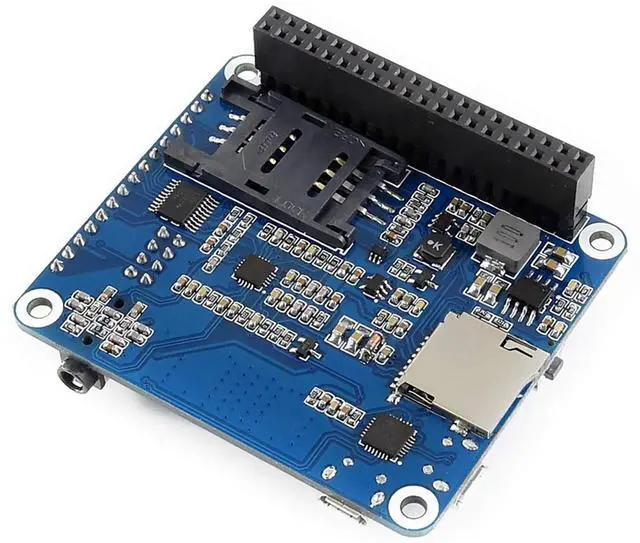

- SIM card slot, supports 1.8V/3V SIM card. TF card slot for storing data like fil
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
FeaturesStandard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson NanoSupports dial-up, telephone call, SMS, MMS, mail, TCP, UDP, DTMF, HTTP, FTP, etc. Supports GPS, BeiDou, Glonass, LBS base station positioningOnboard USB interface, to test AT Commands, get GPS positioning data, and so onOnboard CP2102 USB to UART converter, for serial debuggingBreakout UART control pins, to connect with host boards like Arduino/STM32SIM card slot, supports 1.8V /3V SIM cardTF card slot for storing data like files, messages, etc.
Onboard audio jack and audio decoder for making telephone call2x LED indicators, easy to monitor the working statusOnboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumperBaudrate: 300bps
~ 4Mbps (default: 115200bps)Autobauding
baudrate: 9600bps ~ 115200bpsControl via AT commands (3GPP TS 27.007, 27.005, and V. 25TER command set)Supports
SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USATGNSS SpecificationsReceiver type 16-channel C/A code
Sensitivity Tracking: -159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BD)
Cold starts: -148 dBm Time-To-First-Fix (open air)
Cold starts: <35s
Hot starts: <1s
Accuracy Position: < 2.5 m CEP SMS and Audio Specifications1.
SMS: Supported
types: MT, MO, CB, Text, PDU.
Storage: USIM card and ME (default). 2.
Audio feature: Supports echo cancellation. Supports noise reduction.
Other SpecificationsPower supply: 5VOperating
voltage: 5V/ 3.3V (configured via jumper)
Operating temperature: -30C
~ 80CStorage temperature: -45C
~ 90CDimension: 56.21 mm x 65.15 mm
Onboard audio jack and audio decoder for making telephone call2x LED indicators, easy to monitor the working statusOnboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumperBaudrate: 300bps
~ 4Mbps (default: 115200bps)Autobauding
baudrate: 9600bps ~ 115200bpsControl via AT commands (3GPP TS 27.007, 27.005, and V. 25TER command set)Supports
SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USATGNSS SpecificationsReceiver type 16-channel C/A code
Sensitivity Tracking: -159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BD)
Cold starts: -148 dBm Time-To-First-Fix (open air)
Cold starts: <35s
Hot starts: <1s
Accuracy Position: < 2.5 m CEP SMS and Audio Specifications1.
SMS: Supported
types: MT, MO, CB, Text, PDU.
Storage: USIM card and ME (default). 2.
Audio feature: Supports echo cancellation. Supports noise reduction.
Other SpecificationsPower supply: 5VOperating
voltage: 5V/ 3.3V (configured via jumper)
Operating temperature: -30C
~ 80CStorage temperature: -45C
~ 90CDimension: 56.21 mm x 65.15 mm
