Three Color 2.9inch E-Ink Display Module (B), 296x128 Resolution 3.3V/5V E-Paper Epaper Display Screen Red Black White Tri-Color Compatible with Raspberry Pi/Arduino/STM32,SPI Interface, Full Re

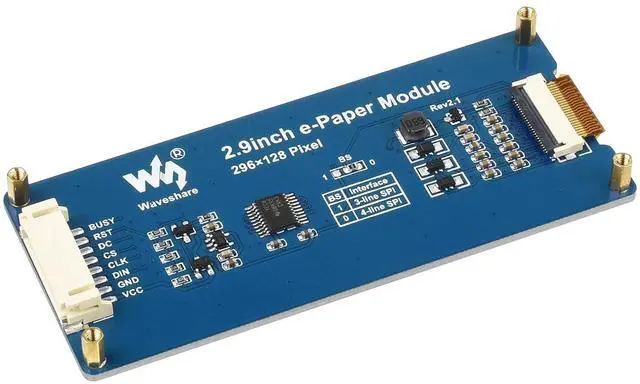

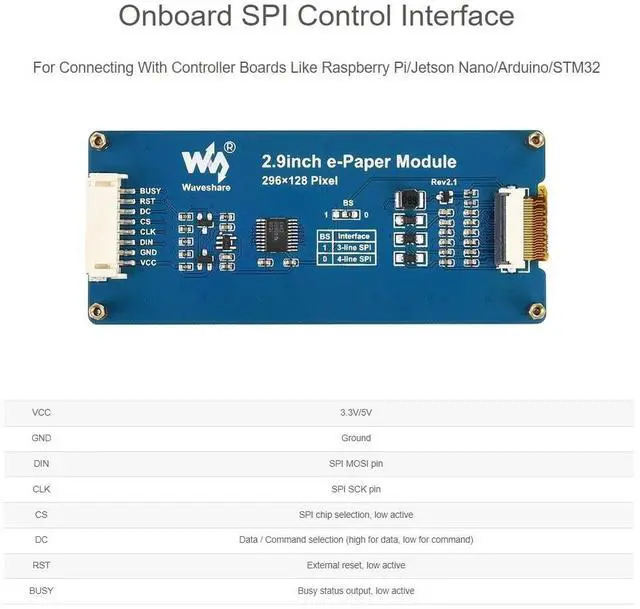

- SPI interface, compatible with controller boards like Raspberry Pi/Arduino/Jetson Nano/STM32/Nucleo, etc.
- Ultra low power consumption, basically power is only required for refreshing
- Onboard voltage translator, compatible with 3.3V/5V MCUs
- Comes with development resources and manual (examples compatible with Raspberry Pi/Arduino/STM32)
- No backlight, keeps displaying last content for a long time even when power down
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

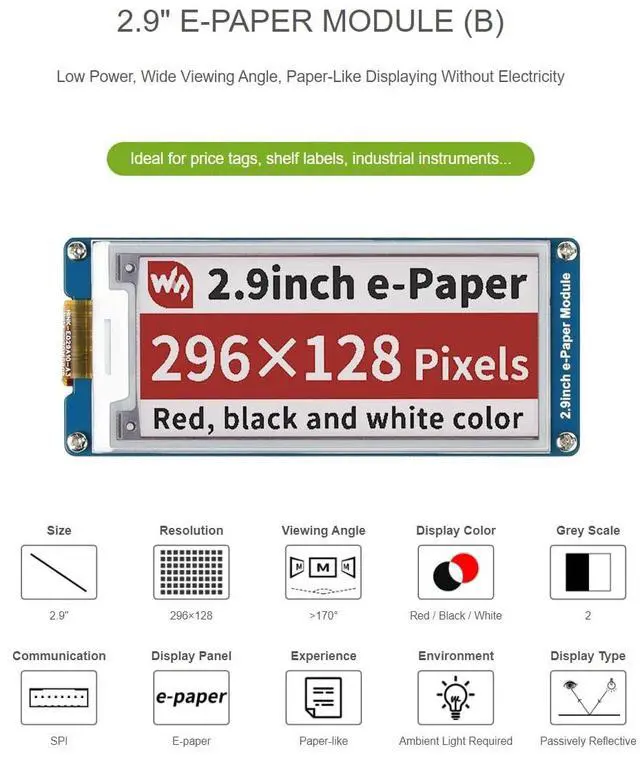

296x128, 2.9 inch E-Ink display module, three-color, SPI interfaceOverviewThis is an E-Ink display module, 2.9 inch, 296x128 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Interface: 3-wire SPI, 4-wire
SPI Outline dimension: 89.5 mm 38mm
Display size: 66.89 mm 29.05 mm
Dot pitch: 0.138 0.138
Resolution: 296 128
Display color: red, black, white
Grey level: 2
Full refresh time: 15s
Refresh power: 26.4 mW(typ. )
Standby power: 0.017 mW
Viewing angle: 170FAQ

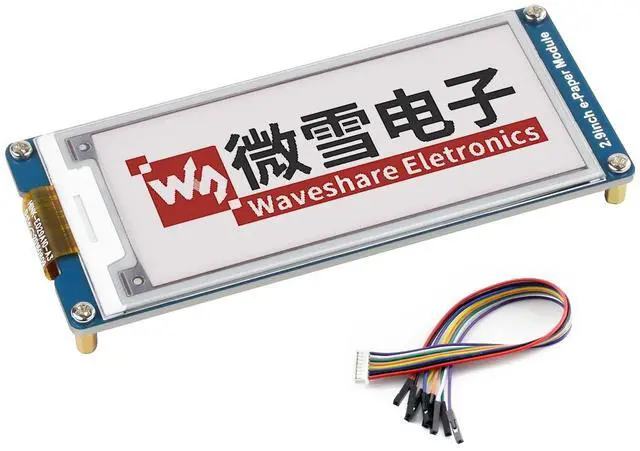

Three-color e-paper looks more red than the picture? Because of different batch, some of them have aberration. Store the e-Paper right side up will reduce it. And if the e-Paper didn't be refreshed for long time, it will become more and more red/yellow. Please use the demo code to refresh the e-paper for several times in this case. Package Content 2.9 inch e-Paper Module (B) x1
PH 2.0 20cm 8Pin x1Note: 100% original from Waveshare, technical support is provided, please feel free to contact us!

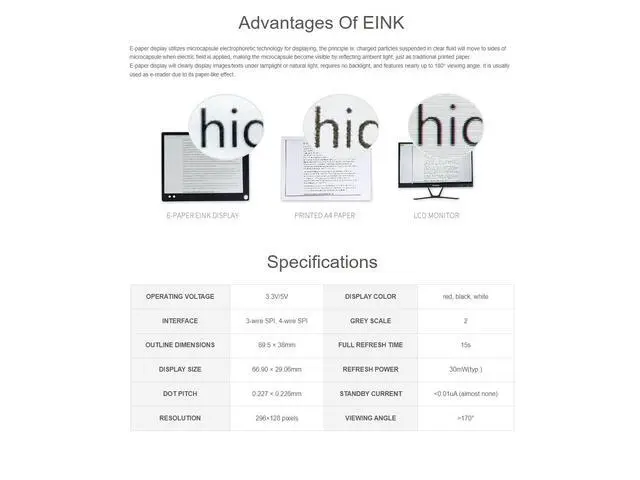

Specifications
Operating voltage: 3.3V /5VInterface: 3-wire SPI, 4-wire
SPI Outline dimension: 89.5 mm 38mm
Display size: 66.89 mm 29.05 mm
Dot pitch: 0.138 0.138
Resolution: 296 128
Display color: red, black, white
Grey level: 2
Full refresh time: 15s
Refresh power: 26.4 mW(typ. )
Standby power: 0.017 mW
Viewing angle: 170FAQ
Three-color e-paper looks more red than the picture? Because of different batch, some of them have aberration. Store the e-Paper right side up will reduce it. And if the e-Paper didn't be refreshed for long time, it will become more and more red/yellow. Please use the demo code to refresh the e-paper for several times in this case. Package Content 2.9 inch e-Paper Module (B) x1
PH 2.0 20cm 8Pin x1Note: 100% original from Waveshare, technical support is provided, please feel free to contact us!
