ESP32-P4-WIFI6 7inch Touch Display Dev Board, Based on ESP32-P4 and ESP32-C6 Chip, with 7" IPS 5-Point Touch Screen 1024600, Onboard RS485/CAN/I2C/UART Headers, Supports AI Speech Interaction

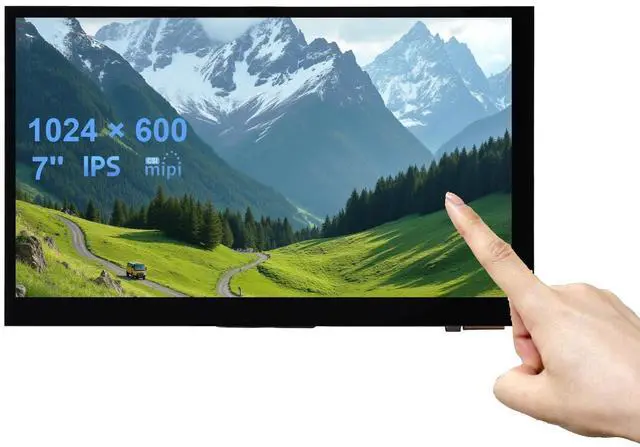

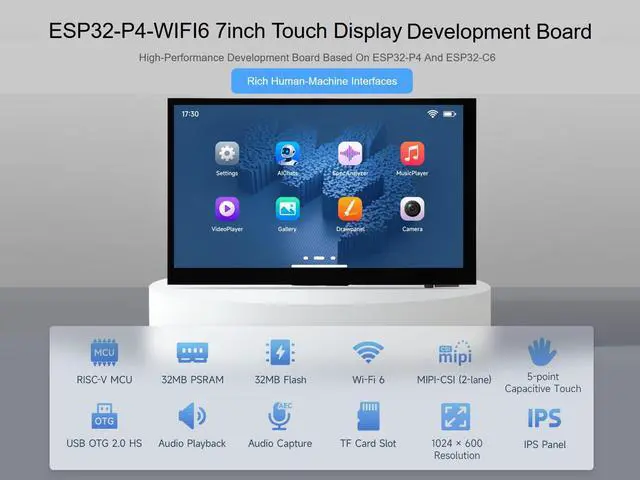

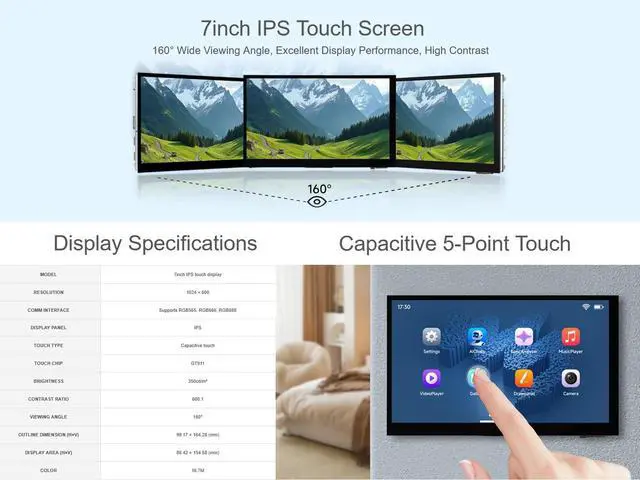

OverviewESP32-P4-WIFI6-Touch-LCD-7B is a high-performance development board based on ESP32-P4 chip, with integrated RISC-V 32-bit dual-core and single-core processors. Equipped with 7inch 1024 600 touch display, features rich human-machine interfaces including MIPI-CSI (with integrated Image Signal Processor), it also supports USB OTG 2.0 HS for high-speed communication. The ESP32-P4 chip integrates the Digital Signature Peripheral and a dedicated Key Management Unit, ensuring secure data and operations. Specifically designed for high-performance and high-security applications, to meet the higher requirements of embedded applications such as Human-Machine interaction, efficient edge computing, and IO expansion.

Features--High-performance MCU with RISC-V 32-bit dual-core and single-core processors--128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP S-R-A-M, 8 KB TCM--Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder--32MB PSRAM in the chip's package, with onboard 32MB Nor Flash--Commonly used peripherals such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG HS, SDIO 3.0 TF card slot, dual microphones (supports echo cancellation), speaker header and RTC battery holder, etc.

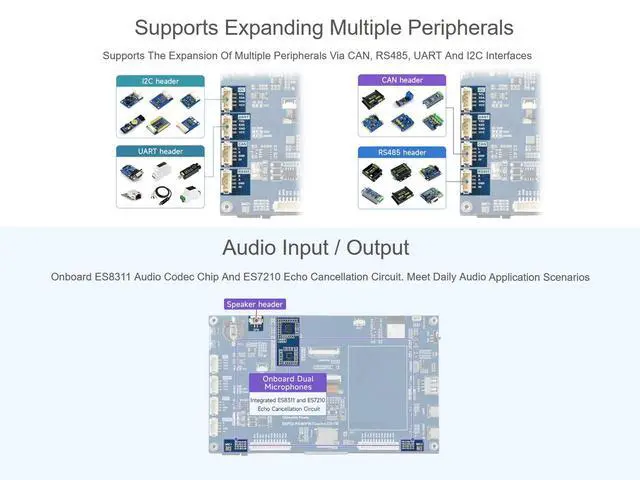

--Adapting 2*12 GPIO header with 17 x remaining programmable GPIOs--Onboard RS485, CAN, I2C, and UART headers for easy communication with industrial equipmentsPackage Content1. ESP32-P4-WIFI6-Touch-LCD-7B x12. USB Type-A dual-plug cable x13. USB Type-A to Type-C cable ~1m x14. Speaker x15. SH 1.0 4PIN cable ~150mm x16. PH 2.0 12PIN cable ~200mm x27. PH 2.0 4PIN cable ~200mm x4NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
