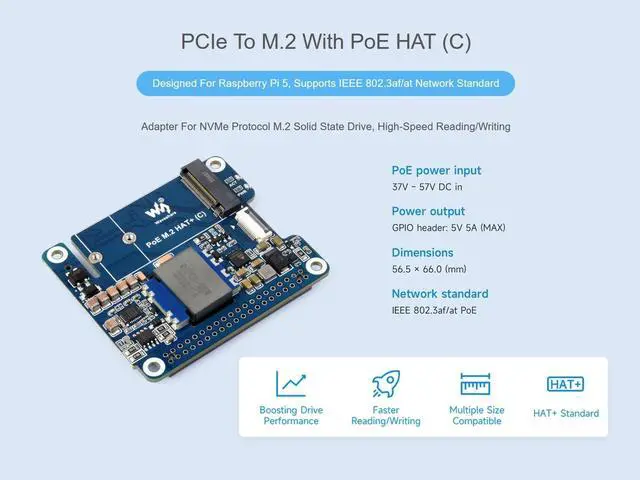

PCIe to M.2 with PoE Ethernet Power Supply HAT for Raspberry Pi 5, Support NVMe Protocol M.2 Solid State Drive in 2230/2242 Size, IEEE 802.3af/at PoE Network Standard, 5V 5A Power Output

OverviewPoE M. 2 HAT+ (C) is an expansion board for Raspberry Pi 5 that combines two functions: Ethernet Power Supply (PoE) and PCIE to M. 2 conversion, supporting the IEEE 802.3 af/at network standard. It supports M. 2 NVMe hard drives in 2230 and 2242 sizes, and supports S-S-D boot for the Raspberry PiFeatures--Standard Raspberry Pi 40pin GPIO extension header, supports Raspberry Pi 5 (not applicable to PI4B and PI3B) --Supports Power over Ethernet (PoE), supports IEEE 802.3 af/at PoE network standard--Adopts fully isolated Switch Mode Power Supply (SMPS) mode power--Supports NVMe protocol M. 2 interface hard drives, featuring high-speed read and write, and high work efficiency--PCI-E1 Gen2 or Gen3 mode--Only supports PI5B--Compatible with M. 2 hard drives of 2230 / 2242 sizes--Onboard operational indicator lights, the PWR is continuously lit when powered on, and the ACT blinks during read and write operations, making the operational status easily visible--POE planar transformerSpecificationsPoE input voltage: 37V ~ 57V
DC inputPoE-GPIO pin header: 5V 5A (MAX)
Network standard: Supports IEEE 802.3 af/at

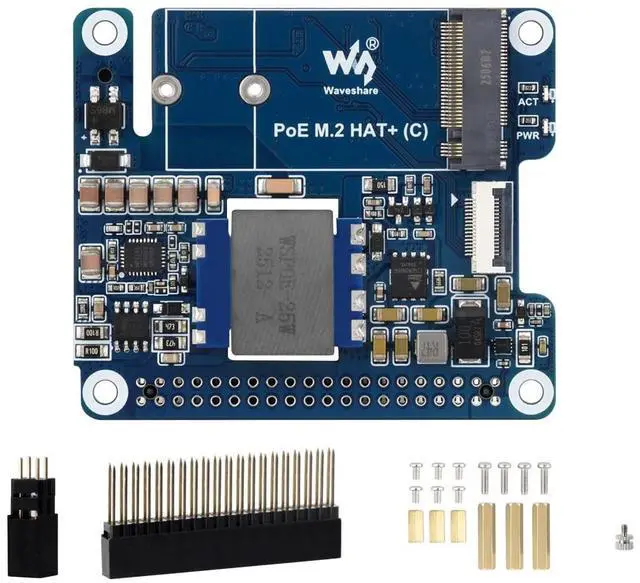

PoEProduct size: 56.5 x 66.0 (mm) Package ContentPoE M. 2 HAT+ (C) 12*2PIN header 12*20PIN header 1Screws pack 1S-S-D mounting screw 1NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
