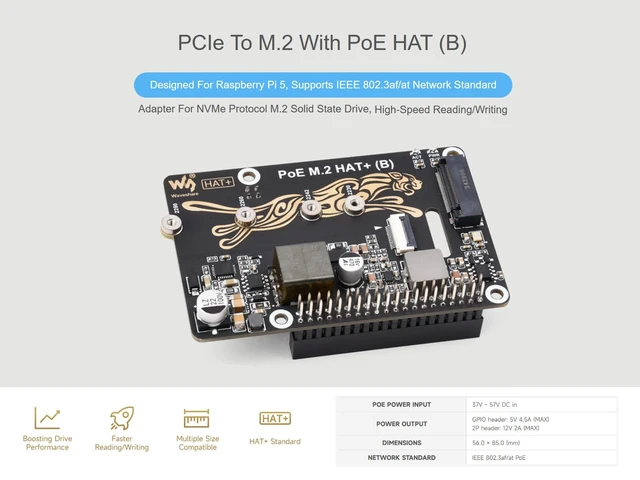

Waveshare POE M.2 HAT+ (B) for Raspberry Pi 5, PCIe to M.2, Power Over Ethernet, NVMe SSD Support, IEEE 802.3af/at

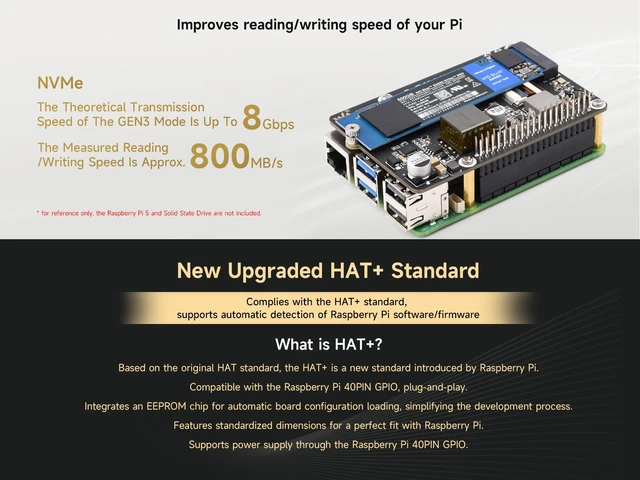

OverviewPCIe to M. 2 Adapter with PoE Function (B) for Raspberry Pi 5, Supports NVMe Protocol M. 2 Solid State Drive, IEEE 802.3 af/at PoE Network Standard, High-speed Reading/WritingFeaturesStandard Raspberry Pi 40pin GPIO extension header, compatible with Raspberry Pi 5 (not applicable to PI4B and PI3B) Supports Power over Ethernet (PoE), supports IEEE 802.3 af/at PoE network standardAdopts fully isolated Switch Mode Power Supply (SMPS) mode powerSupports NVMe protocol M. 2 interface hard drives, featuring high-speed read and write, and high work efficiencyPCI-E1 Gen2 or Gen3 modeOnly supports PI5BCompatible with M.

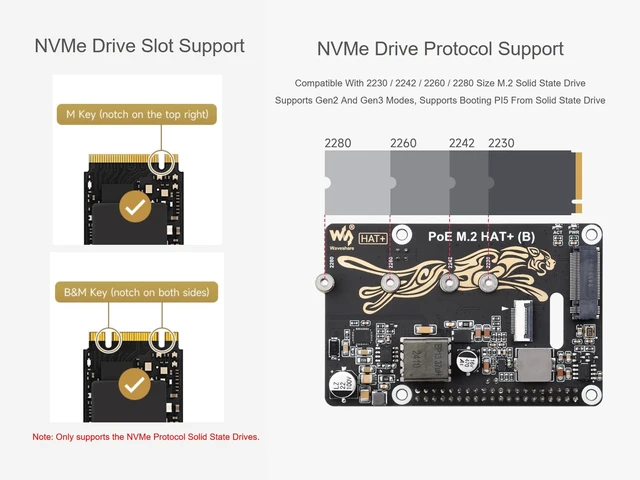

2 hard drives of 2230 / 2242 / 2260 / 2280 sizesOnboard operational indicator lights, the PWR is continuously lit when powered on, and the ACT blinks during read and write operations, making the operational status easily visibleSpecificationsPoE power input: 37V ~ 57V
DC inPower output: --GPIO
header: 5V
4.5A (MAX) --2P header: 12V 2A (MAX)
Dimensions: 56.0 85.0 (mm)

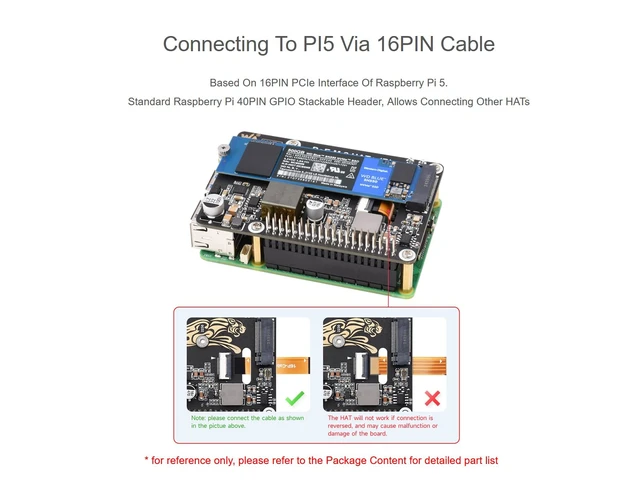

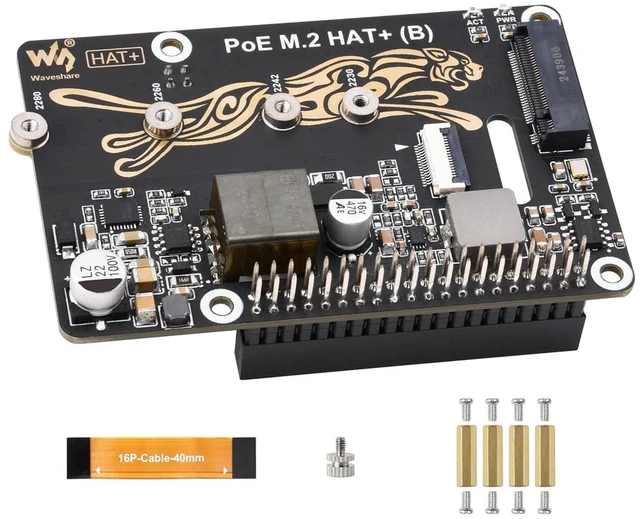

Network standard: IEEE 802.3 af/at PoEPackage ContentPoE M. 2 HAT+ (B) x116PIN PCIe cable x1Solid State Drive mounting screw x1Screws pack x1NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
