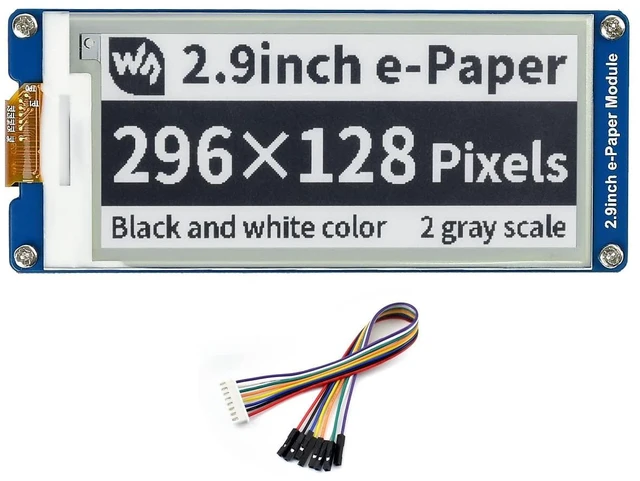

2.9inch e-Paper Display Module, 296x128 Resolution 3.3V/5V Two-Color epaper Display E-Ink Screen Module SPI Interface Compatible with Raspberry Pi/Arduino/Jetson Nano,Support Partial Refresh
- SPI interface, Compatible with Raspberry Pi/Arduino/Nucleo, etc.
- Ultra low power consumption, basically power is only required for refreshing
- Onboard voltage translator, compatible with 3.3V/5V MCUs
- Comes with development resources and manual (examples Compatible with Raspberry Pi/Arduino/STM32)
- No backlight, keeps displaying last content for a long time even when power down
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

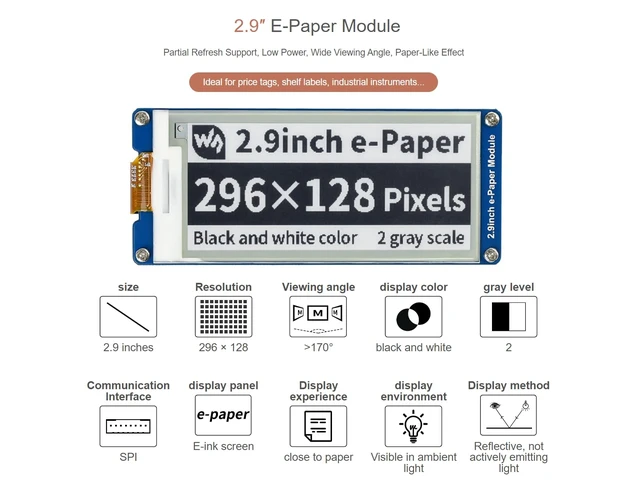

OverviewThis is an 2.9 inch E-Ink display module, 2.9 inch, 296x128 resolution, with embedded controller, communicating via SPI interface, supports partial refresh. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such asshelf label, industrial instrument, and so on.

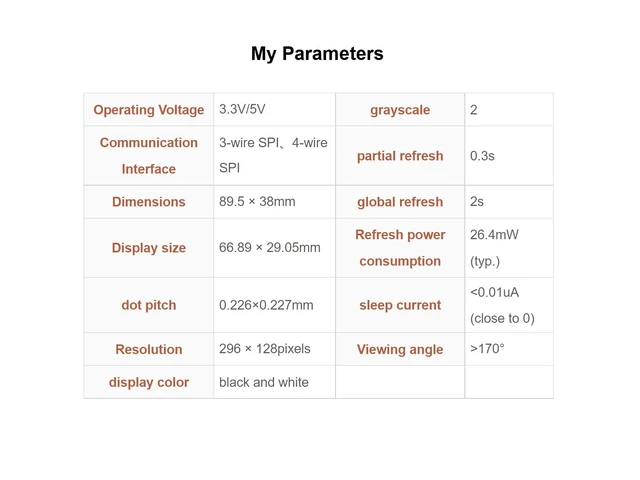

SpecificationsOperating voltage: 3.3V
/5VInterface: 3-wire SPI, 4-wire SPI

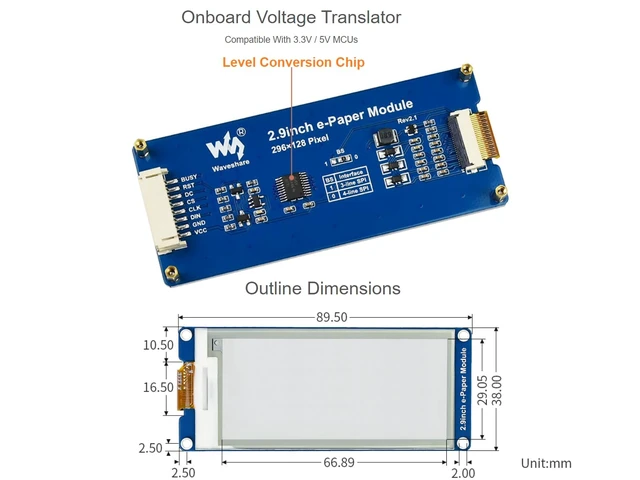

Outline dimension: 89.5
mm 38mmDisplay size: 66.89
mm 29.05 mmDot pitch: 0.138
0.138R esolution: 296
128Display color: black, whiteGrey
level: 2Partial
refresh time: 0.3
sFull refresh time: 2sRefresh
power: 26.4 mW(typ.
)Standby power: 0.017

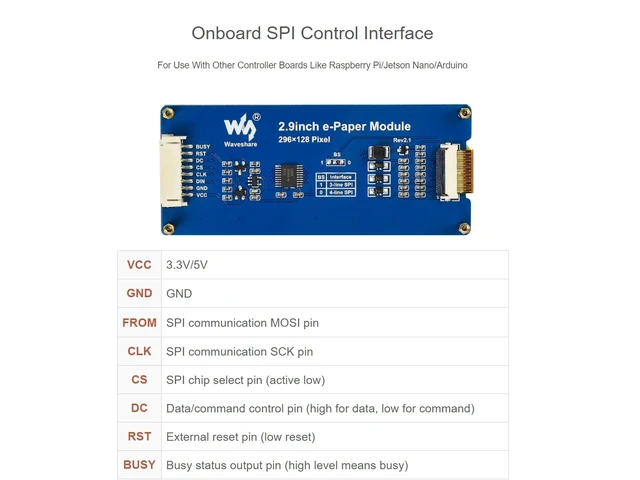

mWViewing angle: 170InterfacesVCC- 3.3VGND -GNDDIN-SPI MOSICLK-SPI SCKCS-SPI chip select (Low active) DC-Data/Command control pin (High for data, and low for command)RST-External reset pin (Low for reset) BUSY-Busy state output pin (High for busy) Package Content 2.9 inch e-Paper Module x1PH 2.0 20cm 8Pin x1Note: Online development resources and technical support are provided, pleae contact with us to get if you need.
SpecificationsOperating voltage: 3.3V
/5VInterface: 3-wire SPI, 4-wire SPI
Outline dimension: 89.5
mm 38mmDisplay size: 66.89
mm 29.05 mmDot pitch: 0.138
0.138R esolution: 296
128Display color: black, whiteGrey
level: 2Partial
refresh time: 0.3
sFull refresh time: 2sRefresh
power: 26.4 mW(typ.
)Standby power: 0.017
mWViewing angle: 170InterfacesVCC- 3.3VGND -GNDDIN-SPI MOSICLK-SPI SCKCS-SPI chip select (Low active) DC-Data/Command control pin (High for data, and low for command)RST-External reset pin (Low for reset) BUSY-Busy state output pin (High for busy) Package Content 2.9 inch e-Paper Module x1PH 2.0 20cm 8Pin x1Note: Online development resources and technical support are provided, pleae contact with us to get if you need.
