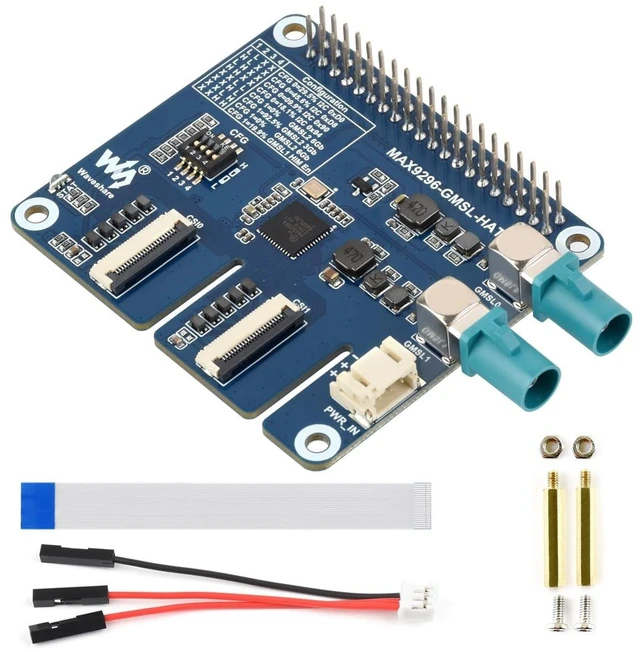

Waveshare 2-Ch GMSL Camera HAT, Equipped with MAX9296A Deserializer, High-Speed and Low-Latency Serial Transmission, Compatible with Raspberry Pi 5 and Jetson Orin NX/Nano

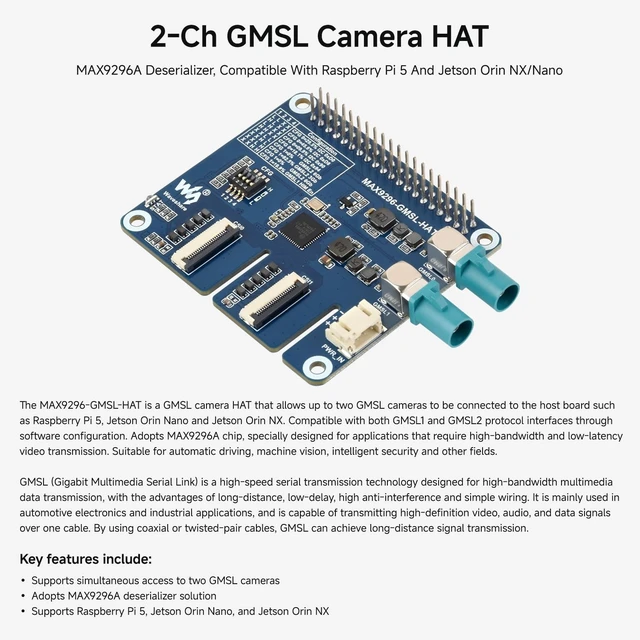

The MAX9296-GMSL-HAT is a GMSL camera HAT that allows up to two GMSL cameras to be connected to the host board such as Raspberry Pi 5, Jetson Orin Nano and Jetson Orin NX. Compatible with both GMSL1 and GMSL2 protocol interfaces through software configuration. ^^ Adopts MAX9296A chip, specially designed for applications that require high-bandwidth and low-latency video transmission. Suitable for automatic driving, machine vision, intelligent security and other fields. ^^ GMSL (Gigabit Multimedia Serial Link) is a high-speed serial transmission technology designed for high-bandwidth multimedia data transmission, with the advantages of long-distance, low-delay, high anti-interference and simple wiring.

^^ Supports simultaneous access to two GMSL cameras. Adopts MAX9296A deserializer solution. Supports Raspberry Pi 5, Jetson Orin Nano, and Jetson Orin NX ^^ Designed with thickened metal base and non-slip bottom pads, which lowers the overall center of gravity, enhances stability, and effectively avoids shaking, sliding and tipping over.
