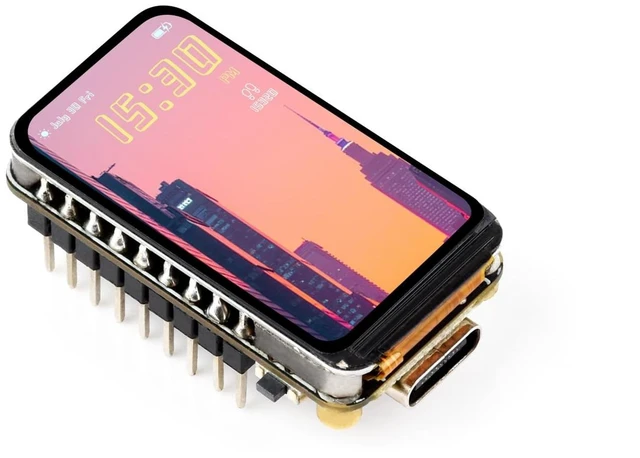

waveshare ESP32-S3 1.47inch LCD Display Development Board Type B with pre-soldered Header 172320 Resolution 262K Display Color Display Supports 2.4GHz Wi-Fi and BLE 5

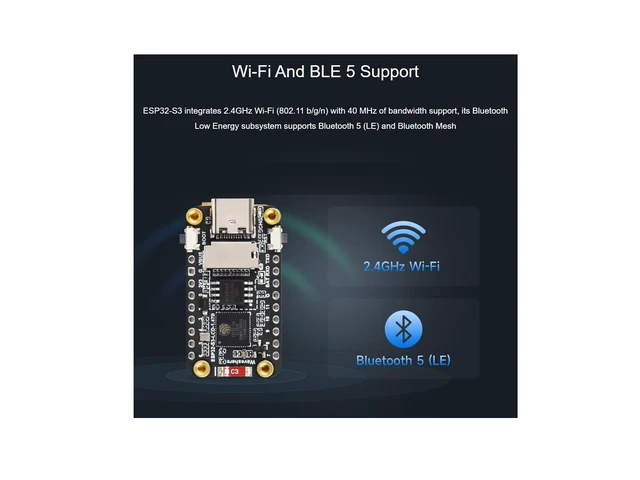

ESP32-S3 1.47 inch LCD Display Development Board Type B, 172320 Resolution, 262K Display Color, Supports 2.4GH z Wi-Fi / BLE 5, 240MHz LX7 Dual-Core Processor, ESP32 With DisplayFeaturesESP32-S3-LCD- 1.47B is a microcontroller development board that supports 2.4GH z Wi-Fi and Bluetooth BLE 5, integrates high-capacity Flash and PSRAM. Onboard 1.47 inch IPS display can smoothly run GUI programs such as LVGL. Combined with multiple peripheral interfaces, it is suitable for rapiddevelopment of ESP32-S3 HMI applications. Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequencySupports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with onboard antennaBuilt-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAMOnboard 1.47 inch LCD display, 172320 resolution, 262K colorAdapting multiple IO interfaces, supports full-speed USB standardOnboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etcBuilt-in RGB LED with clear acrylic sandwich panel for cool lighting effectsOnboard TF card slot for external TF card storage of pictures or filesOnboard battery charging management module, supports connecting to Lithium battery for power supply (the battery interface is located at the GPIO header) Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenariosPackage ContentESP32-S3-LCD- 1.47B with pre-soldered header 1Usage InstructionsESP32-S3-LCD- 1.47B currently provides two development tools and frameworks, Arduino IDE and ESP-IDF, providing flexible development options, you canchoose the right development tool according to your project needs and personal habits.
