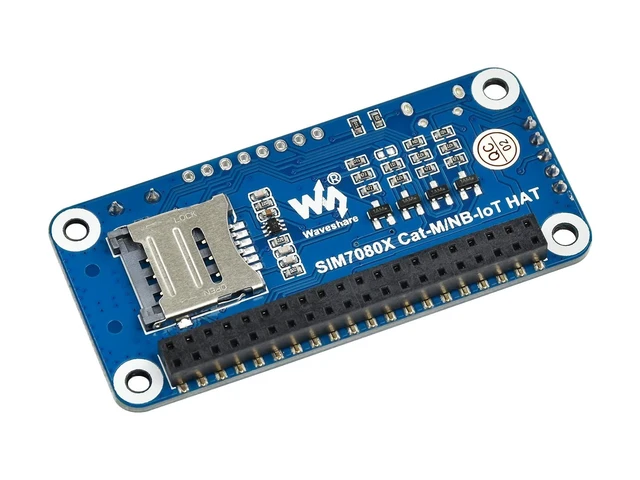

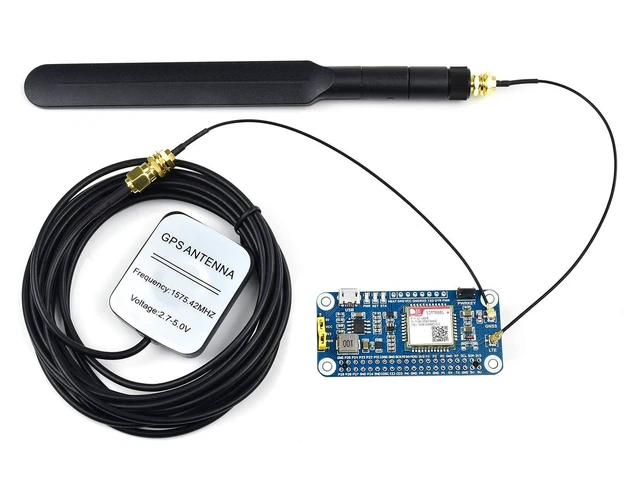

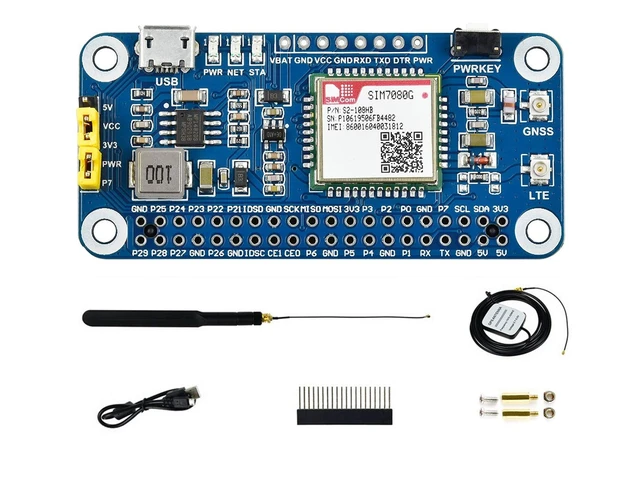

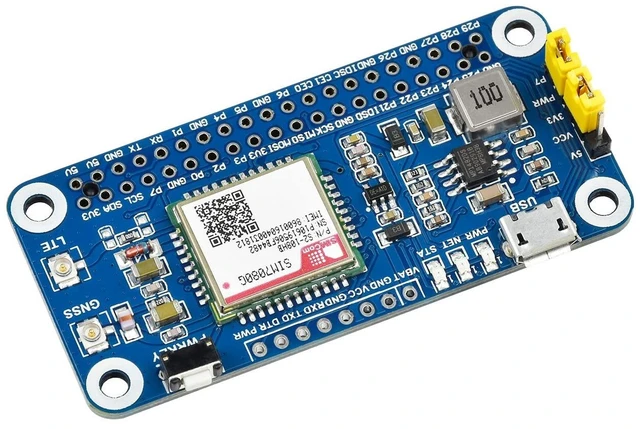

Waveshare NB-IoT/Cat-M(EMTC)/GNSS Module Based On SIM7080G Compatible with Raspberry Pi Globally Applicable

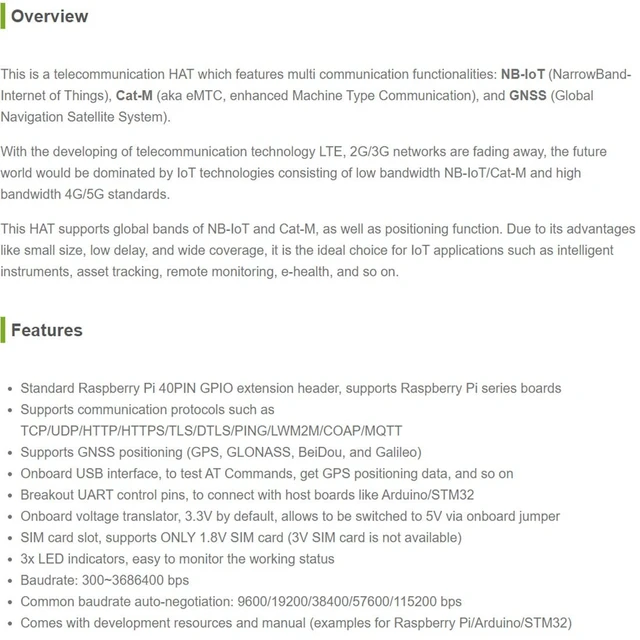

OverviewThis is a telecommunication HAT which features multi communication functionalities: NB-IoT (NarrowBand-Internet of Things), Cat-M (aka eMTC, enhanced Machine Type Communication), and GNSS (Global Navigation Satellite System). With the developing of telecommunication technology LTE, 2G/3G networks are fading away, the future world would be dominated by IoT technologies consisting of low bandwidth NB-IoT/Cat-M and high bandwidth 4G/5G standards. This HAT supports global bands of NB-IoT and Cat-M, as well as positioning function. Due to its advantages like small size, low delay, and wide coverage, it is the ideal choice for IoT applications such as intelligent instruments, asset tracking, remote monitoring, e-health, and so on. FeaturesStandard Pi 40PIN GPIO extension header, supports Raspberry Pi series boardsSupports communication protocols such as TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTTSupports GNSS positioning (GPS, GLONASS, BeiDou, and Galileo)Onboard USB interface, to test AT Commands, get GPS positioning data, and so onBreakout UART control pinsOnboard voltage translator, 3.3V by default, allows to be switched to 5V via onboard jumperSIM card slot, supports ONLY 1.8V SIM card (3V SIM card is not available) 3x LED indicators, easy to monitor the working statusBaudrate: 300~3686400
bpsCommon baudrate auto-negotiation: 9600/19200/38400/57600/115200 bpsWith online development resources and manual (examples for Raspberry Pi/STM32)
