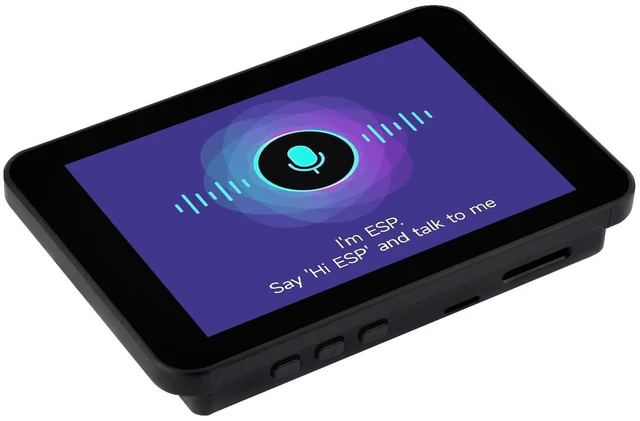

ESP32-P4-WIFI6 3.5inch Touch LCD Development Board, Equipped with OV5647 5MP Camera and 3.5inch 320 480 SPI Display, Built-in Microphone and Speaker, Supports Wi-Fi 6 and BLE 5

OverviewESP32-P4-WIFI6 3.5 inch Smart Vision Development Board, 320 480 Resolution, Equipped With OV5647 5MP Camera, Built-in Microphone And Speaker, Supports Wi-Fi 6 And BLE 5FeaturesHigh-performance MCU with RISC-V 32-bit dual-core and single-core processorsOnboard ESP32-C6H8 module serving as a Wi-Fi 6 co-processor, extending Wi-Fi 6 and BLE 5 capabilities for ESP32-P4128KB HP ROM, 16KB LP ROM, 768KB HP L2MEM, 32KB LP Static RAM, 8KB TCMPowerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder32MB PSRAM in the chip's package, with onboard 16MB Nor FlashOnboard Type-C ports, more convenient, better device compatibilityOnboard 3.5 inch capacitive touch IPS display for clear color picture display, 320 480 resolution, 262K colorBuilt-in ST7796 display driver and FT6336 capacitive touch chip, using SPI and I2C communication respectively, effectively saving the IO resourcesOnboard programmable PWM and BOOT buttons for easy custom function developmentOnboard 3.7V MX 1.25 Lithium Batt recharge/discharge headerAdapting I2C, UART, USB and multiple GPIOs for external device connection and debuggingOnboard TF card slot for extended storage, high-speed data transfer, and enhanced flexibility, suitable for data logging and media playback, simplifying circuit designOnboard camera interface, supporting OV5647 and other MIPI-CSI camerasAdopts AXP2101 IC for efficient power management, supports multiple voltage outputs, Batt charging, Batt management, and Batt life optimization, etc.

Package ContentESP32-P4-WIFI6-Touch-LCD- 3.5 host x1Screwdriver x1NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
