$76.99
Meet Your Seller

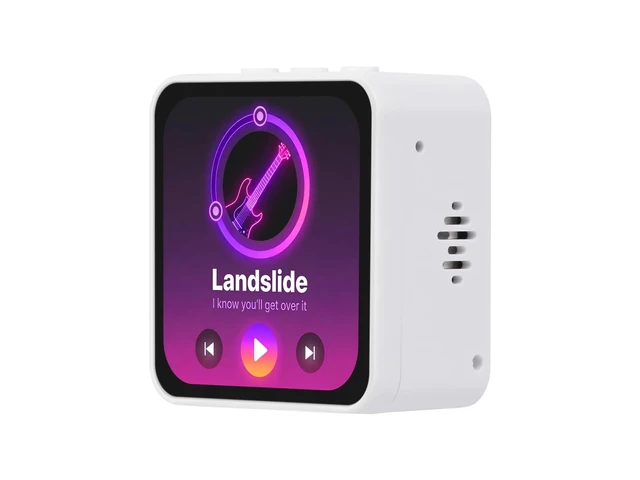

ESP32-S3 2.16inch Touch AMOLED Display Dev Board,480 480 Pixels
- ESP32-S3 2.16inch AMOLED Display Development Board,Embedded with CO5300 Display Driver and CST9220 Capacitive Touch Chip

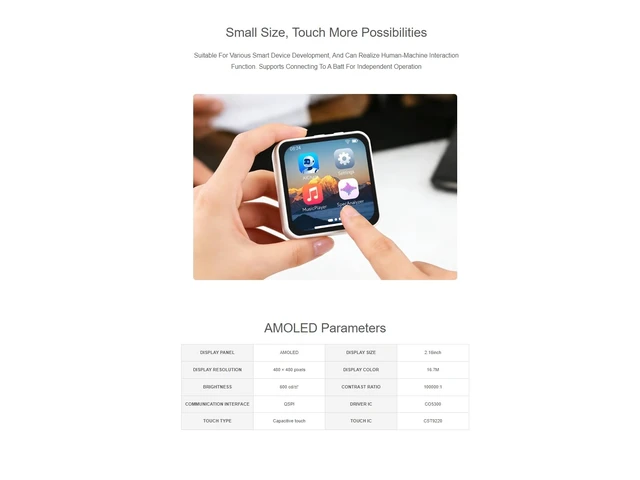

- Small Size, Touch More Possibilities.Suitable For Various Smart Device Development, And Can Realize Human-Machine Interaction Function. Supports Connecting To A Batt For Independent Operation

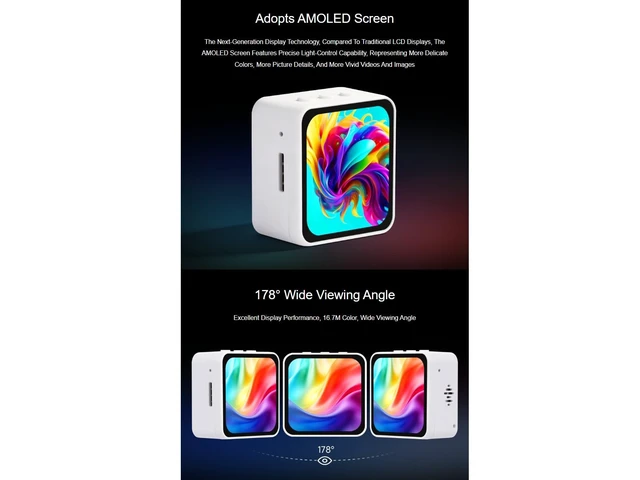

- Adopts AMOLED Screen.The Next-Generation Display Technology, Compared To Traditional LCD Displays, The AMOLED Screen Features Precise Light-Control Capability, Representing More Delicate Colors, More Picture Details, And More Vivid Videos And Images
- 178 Wide Viewing Angle.Excellent Display Performance, 16.7M Color, Wide Viewing Angle
- Supports ESP-IDF, Arduino IDE.Comprehensive ESP-IDF And Arduino Tutorials For Easy Learning. Facilitates Secondary Development And Function Expansion, Accelerating Application Deployment
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

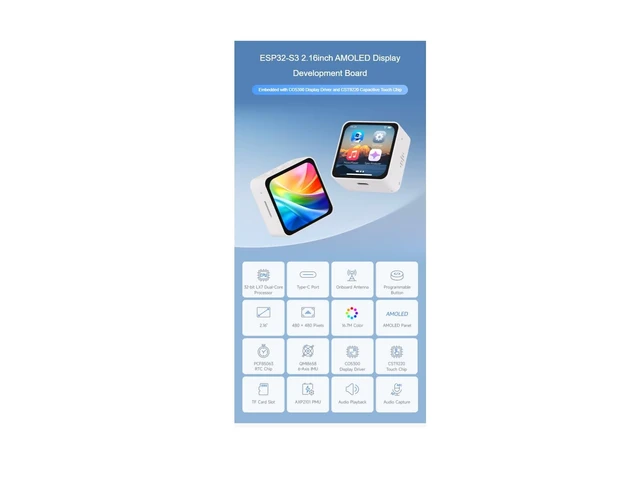

FeaturesThe ESP32-S3-Touch-AMOLED- 2.16 is a high-performance, highly integrated microcontroller development board designed by Waveshare. Tiny size withonboard 2.16 inch capacitive AMOLED display, highly integrated power management chip, 6-axis IMU (3-axis accelerometer and 3-axis gyroscope), RTC chip, low power audio codec, echo cancellation circuit, and so on, which makes it easy for you to develop and integrate into the products quickly. Equipped with high-performance ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequencySupports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with onboard antennaBuilt-in 512KB Static RAM, 384KB ROM, with onboard 8MB PSRAM and external 16MB flashType-C port, improving device compatibility, easier to useOnboard 2.16 inch AMOLED capacitive touch display for clear color picture display, 480 480 resolution, 16.7M colorAdopts AMOLED screen, featuring advantages of high contrast, wide viewing angle, rich colors, fast response, thinner design, and low power consumption, etc.
Built-in CO5300 display driver and CST9220 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resourcesEquipped with dual microphones array with noise reduction and echo cancellation circuit, suitable for accurate speech recognition and near/far-field wake-upOnboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc. Onboard PWR and BOOT programmable buttons for easy custom function developmentOnboard 3.7V MX 1.25 Lithium Batt recharge/discharge headerAdopts AXP2101 IC for efficient power management, supports multiple voltage outputs, Batt charging, Batt management, and Batt life optimization, etc.
Package ContentESP32-S3-Touch-AMOLED- 2.16 host x1PC insulating sheet x1
Built-in CO5300 display driver and CST9220 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resourcesEquipped with dual microphones array with noise reduction and echo cancellation circuit, suitable for accurate speech recognition and near/far-field wake-upOnboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc. Onboard PWR and BOOT programmable buttons for easy custom function developmentOnboard 3.7V MX 1.25 Lithium Batt recharge/discharge headerAdopts AXP2101 IC for efficient power management, supports multiple voltage outputs, Batt charging, Batt management, and Batt life optimization, etc.
Package ContentESP32-S3-Touch-AMOLED- 2.16 host x1PC insulating sheet x1
