MicoAir OPTICAL FLOW & LIDAR SENSOR MTF-01 Compatible with Ardupilot/PX4/INAV (Ardupilot)
- High Compatibility: The MTF-01 supports data output via uart, compatible with mainstream open-source flight control systems such as Ardupilot, PX4, and INAV. Users can switch communication protocols through the USB to UART TTL module, adapting to different flight control systems.
- Easy to Operate: Comes with comprehensive video tutorials that simplify the configuration process for quick and easy setup.
- Integrated High-Performance Sensors: Incorporates a PMW3901 optical flow sensor and a high-power TOF sensor, suitable for outdoor sunlight environments. It offers a ranging distance of 0.02-8m with 2% accuracy and effectively resists up to 70K Lux of ambient light.
- Lightweight Design, Strong Environmental Adaptability: Weighing only 4.5g and measuring 29 * 16.5 * 15mm, it supports operating voltages of 4.0-5.5V and working temperatures from -10°C to 60°C, adaptable to a variety of environments.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description

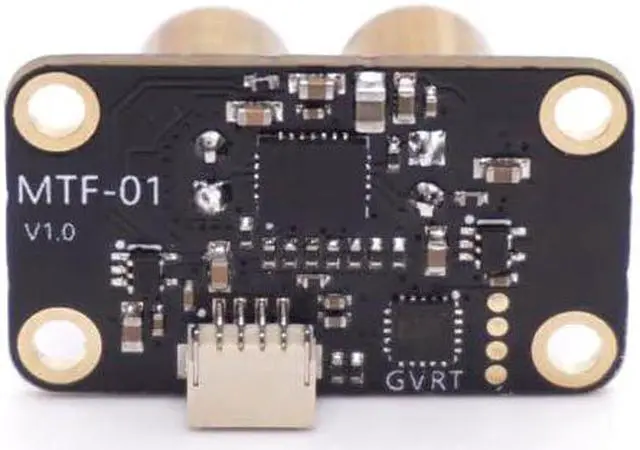

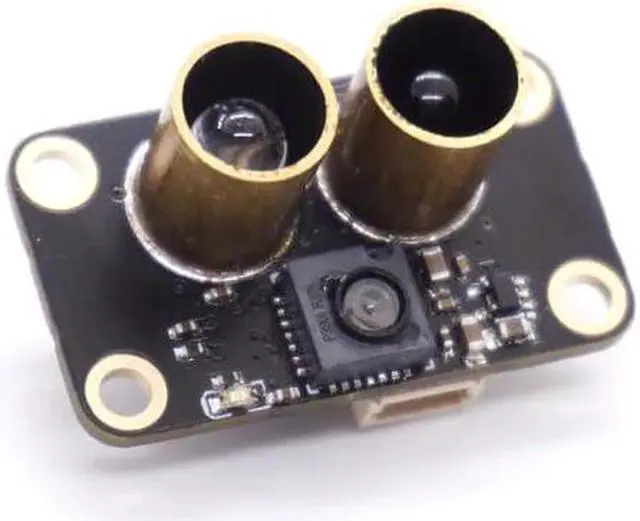

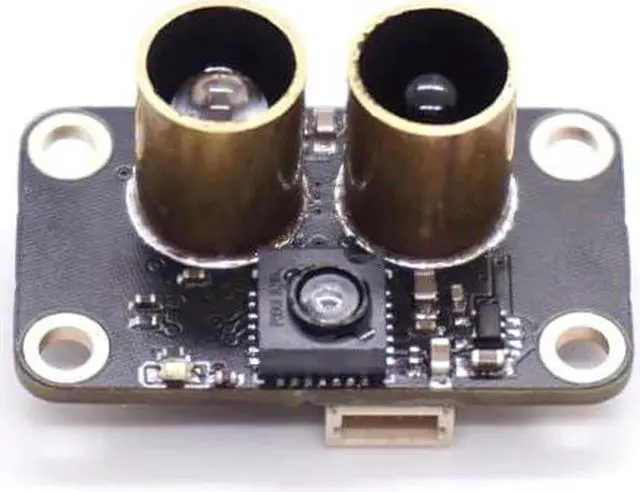

MTF-01 is an optical flow ranging integrated sensor developed by MicoAir Technology. It uses uart to output data and is compatible with mainstream open source flight controllers such as Ardupilot, PX4, and INAV. (You can freely modify the communication protocol between the sensor and the flight controller using the USB to UART TTL Module making it compatible with different flight controllers. ). It can be used directly after simple configuration without complicated development process. MTF-01 features an integrated PMW3901 optical flow sensor and a high-performance TOF sensor, which can be used normally in outdoor sunlight environments.
About Protocols INAV Version (MSP Protocol) Ardupilot Version PX4 Version
If you need to change the communication protocol yourself or make additional settings to the sensor (such as changing the installation direction of the sensor on the drone), you will need a USB to TTL module. If you do not have this module, you can purchase it through the following link. This module is already connected to the MTF01 dedicated cable and can be directly connected to the sensor. Link
If you are using Ardupilot firmware, you do not need an additional USB to TTL module to set up the MTF01 sensor. The specific setting method can be found in the following link (Configure MTF-01 Sensor By Using Ardupilots Serial Passthrough Function) Link Specification Product weight: 4.5 g
Product size: 29 x 16.5 x 15mm
Output mode: UART
Output frequency: 100Hz
TOF Range: 0.02 -8m
Ranging dead zone: 2cm
Range accuracy: 2%
Wavelength: 830-870nm
Resistance to ambient light: 70K Lux illumination
Distance FOV: 6° Optical flow
FOV: 42° Ambient light demand of optical flow: >60Lux
Optical flow working distance: >80mm
Power consumption: 500mW
Operating voltage: 4.0 - 5.5V

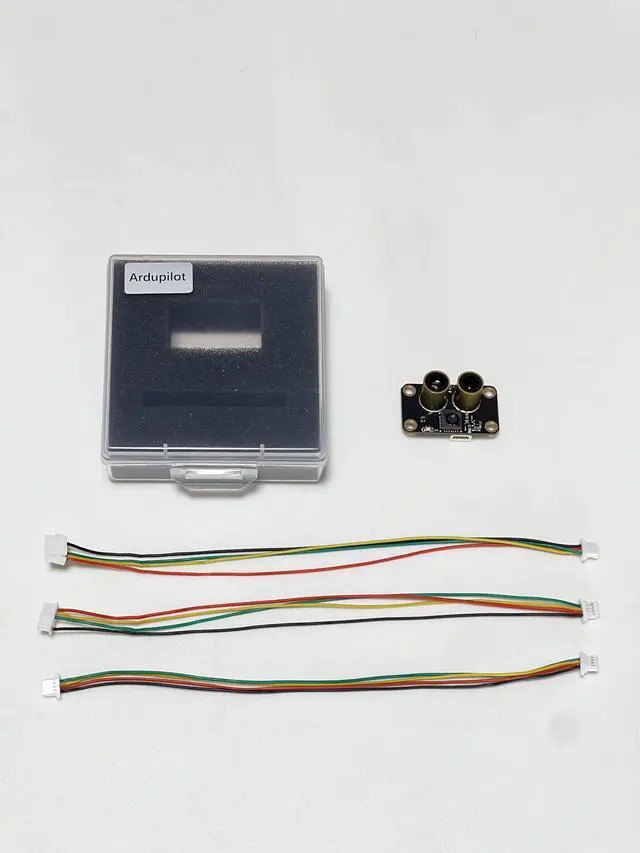

Operating temperature: -10°C-60°C USER MANUAL & Configurator Download MicoAssistant from here MicoAssistant_v 0.9. 13 Sensor Video Tutorials Setup Optic Flow&Lidar(MTF-01) For INAV Setup Optic Flow&Lidar(MTF-01) For Ardupilot&PX4 Sensor 3D file MTF_01 Optical Flow Lidar Sensor - GrabCAD Sensor Case (Designed by ROBOFUSION) MTF-01 Optical Flow Lidar Sensor Case - GrabCAD Sensor holder for GEPRC Cinebot30 (Designed by ROBOFUSION) Sensor holder for GEPRC Cinebot30 Sensor holder for 2inch FPV drone (Designed by ROBOFUSION) Sensor holder for 2inch FPV drone PACKAGE LIST MTF-01 module *1 20cm SH 1.0 4PIN-4PIN cable * 1 20cm SH 1.0 -MX 1.25 -6P cable * 1 (for pixhawk 2.4. 8 20cm SH 1.0 -GH 1.25 -6P cable * 1 (for pixhawk4/5/6)
MTF-01 is an optical flow ranging integrated sensor developed by MicoAir Technology. It uses uart to output data and is compatible with mainstream open source flight controllers such as Ardupilot, PX4, and INAV. (You can freely modify the communication protocol between the sensor and the flight controller using the USB to UART TTL Module making it compatible with different flight controllers. ). It can be used directly after simple configuration without complicated development process. MTF-01 features an integrated PMW3901 optical flow sensor and a high-performance TOF sensor, which can be used normally in outdoor sunlight environments.
About Protocols INAV Version (MSP Protocol) Ardupilot Version PX4 Version
If you need to change the communication protocol yourself or make additional settings to the sensor (such as changing the installation direction of the sensor on the drone), you will need a USB to TTL module. If you do not have this module, you can purchase it through the following link. This module is already connected to the MTF01 dedicated cable and can be directly connected to the sensor. Link
If you are using Ardupilot firmware, you do not need an additional USB to TTL module to set up the MTF01 sensor. The specific setting method can be found in the following link (Configure MTF-01 Sensor By Using Ardupilots Serial Passthrough Function) Link Specification Product weight: 4.5 g
Product size: 29 x 16.5 x 15mm
Output mode: UART
Output frequency: 100Hz
TOF Range: 0.02 -8m
Ranging dead zone: 2cm
Range accuracy: 2%
Wavelength: 830-870nm
Resistance to ambient light: 70K Lux illumination
Distance FOV: 6° Optical flow
FOV: 42° Ambient light demand of optical flow: >60Lux
Optical flow working distance: >80mm
Power consumption: 500mW
Operating voltage: 4.0 - 5.5V
Operating temperature: -10°C-60°C USER MANUAL & Configurator Download MicoAssistant from here MicoAssistant_v 0.9. 13 Sensor Video Tutorials Setup Optic Flow&Lidar(MTF-01) For INAV Setup Optic Flow&Lidar(MTF-01) For Ardupilot&PX4 Sensor 3D file MTF_01 Optical Flow Lidar Sensor - GrabCAD Sensor Case (Designed by ROBOFUSION) MTF-01 Optical Flow Lidar Sensor Case - GrabCAD Sensor holder for GEPRC Cinebot30 (Designed by ROBOFUSION) Sensor holder for GEPRC Cinebot30 Sensor holder for 2inch FPV drone (Designed by ROBOFUSION) Sensor holder for 2inch FPV drone PACKAGE LIST MTF-01 module *1 20cm SH 1.0 4PIN-4PIN cable * 1 20cm SH 1.0 -MX 1.25 -6P cable * 1 (for pixhawk 2.4. 8 20cm SH 1.0 -GH 1.25 -6P cable * 1 (for pixhawk4/5/6)
