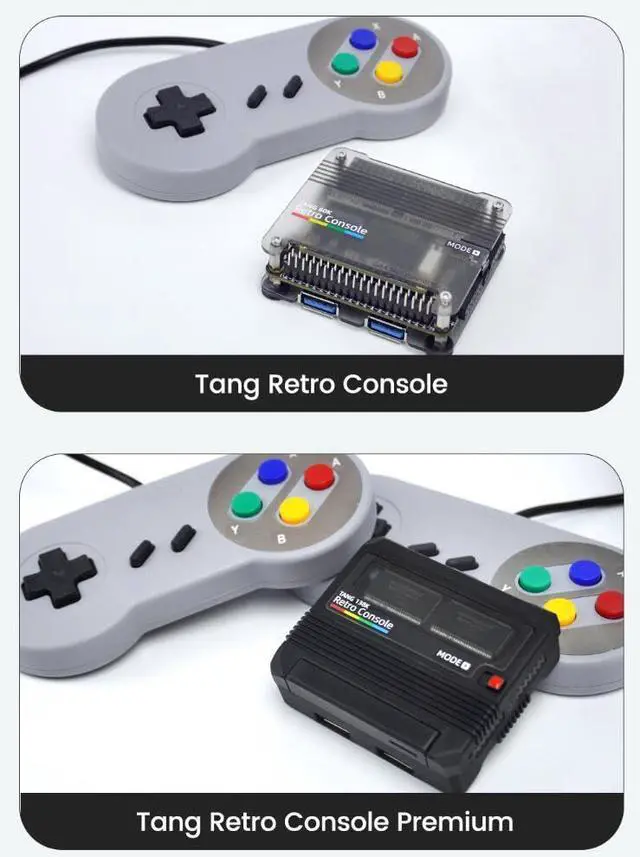

Sipeed Tang Console FPGA Retro Game Console - Tang Mega 60K/138K SOM BL616 MCU - USB3.0 HDMI Output - PMOD x2 40Pin x2, Linux Dev Board Developer Kit for FPGA IDE Programming (138K SoM, Premium)
- [Compatible with Various SOMs] Sipeed Tang Console FPGA development board enjoy powerful FPGA performance with configurations up to 60K/138K LUT4s, onboard Mega 138k/60K SOM CPU, 468Kbit SSRAM 2124Kbit BSRAM/1080Kbit SSRAM 6120Kbit BSRAM, 4Gbit 16bit DDR3 RAM/8Gbit 32bit DDR3 RAM. Ensuring smooth operation for your projects and games.
- Rich Expansion] Sipeed Tang Console FPGA Dev Board onboard PCIe Gen2/3 x 1 FPC connector, USB3 x 2 (Type-A, Device, 5Gbps or 10Gbps), USB2 x 2 (Type-A, Host, 1.5Mbps or 12Mbps), HDMI TX x 1 (1080P 30Hz/720P 60Hz), Soft-PHY USB2 x 1 (Typc-C, Device, 480Mbps), PMOD x 2 Standard Pitch Port, microSD slot x1 (Supports 4-bit SDIO/MMC or SPI mode). Support USB JTAG and UART.
- [High Performance] Sipeed Tang Console FPGA single board computer supports multiple Tang Core emulator cores,(NESTang/SNESTang/GBATang/MDTang/SMSTang), Onboard BL616 MCU, supports running TangCore firmware for BL616, which can be used as FPGA debugger. Able to meet different
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
-Specification-
-138K Core-Board-Parameter-
FPGA chip GW5AST LV138PG484A
Logic unit (LUT4) 138240
Register (FF) 138240
DDR3 (Mbit/s) 800
Hardcore processor Risc-V AE350 SOC
ADC 2
Total number of IO banks 10
Memory 1 GiB DDR3 (512 MiB x 2)
Flash 128 Mbit Flash x 1
-60K Core Board Parameters-
FPGA chip GW5AT-LV60PG484A
Logic unit (LUT4) 59904
Register (FF) 59904
DDR3 (Mbit/s) 1333
MIPI D-PHY-Hard Core 2.5G bps (RX), 8 data channels, 2 clock channels
RiscV AE350_SOC hard-core processor
ADC 2
Total number of I/O banks 11
Memory 512MiB DDR3
Flash 128Mbits Flash x 1

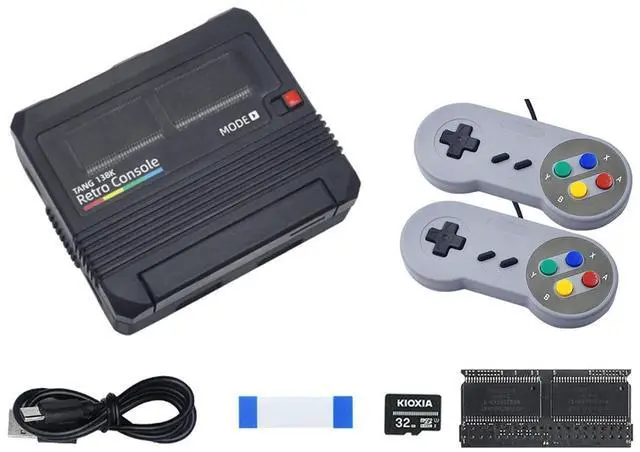

-Package Content-
Sipeed Tang Console FPGA Dev Board x1
-Technical Support-
User Guidewiki. sipeed. com/hardware/en/tang/tang-console/retro-console. html
Getting Startwiki. sipeed. com/hardware/en/tang/tang-console/mega-console. html
Please click "WayPonDEV" and ask a question.
Please leave the message "wpd#youyeetoo&com (#-@, &-. )".
-138K Core-Board-Parameter-
FPGA chip GW5AST LV138PG484A
Logic unit (LUT4) 138240
Register (FF) 138240
DDR3 (Mbit/s) 800
Hardcore processor Risc-V AE350 SOC
ADC 2
Total number of IO banks 10
Memory 1 GiB DDR3 (512 MiB x 2)
Flash 128 Mbit Flash x 1
-60K Core Board Parameters-
FPGA chip GW5AT-LV60PG484A
Logic unit (LUT4) 59904
Register (FF) 59904
DDR3 (Mbit/s) 1333
MIPI D-PHY-Hard Core 2.5G bps (RX), 8 data channels, 2 clock channels
RiscV AE350_SOC hard-core processor
ADC 2
Total number of I/O banks 11
Memory 512MiB DDR3
Flash 128Mbits Flash x 1
-Package Content-
Sipeed Tang Console FPGA Dev Board x1
-Technical Support-
User Guidewiki. sipeed. com/hardware/en/tang/tang-console/retro-console. html
Getting Startwiki. sipeed. com/hardware/en/tang/tang-console/mega-console. html
Please click "WayPonDEV" and ask a question.
Please leave the message "wpd#youyeetoo&com (#-@, &-. )".
