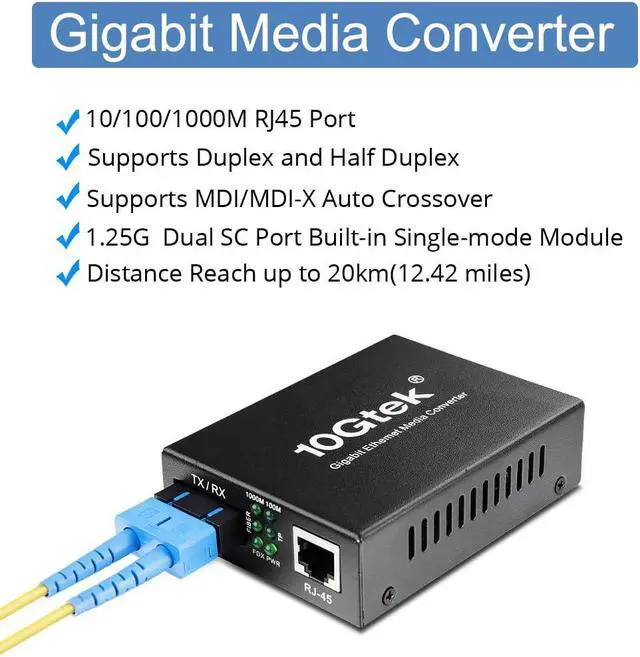

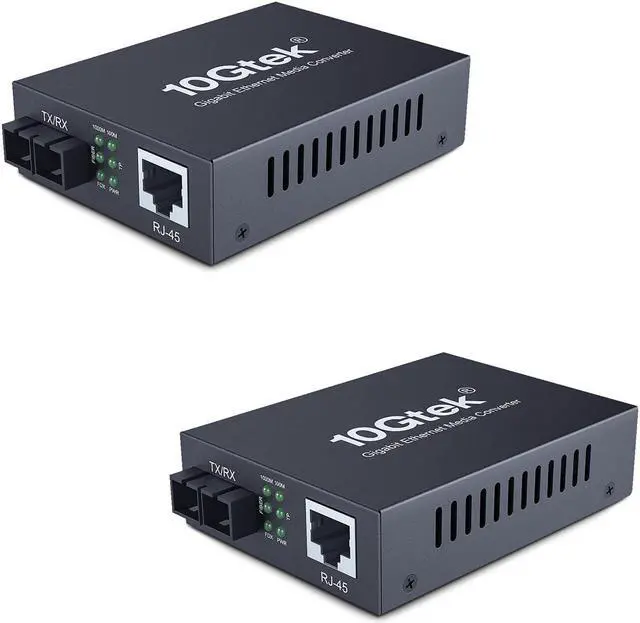

2PCS Gigabit SC to RJ45 Fiber Media Converter, Single Mode to Ethernet Converter 10/100/1000Mbps RJ45 Port to 1000Mbps Single Mode Dual SC Port, SMF, 1310nm, up to 20km, Auto-Negotiation

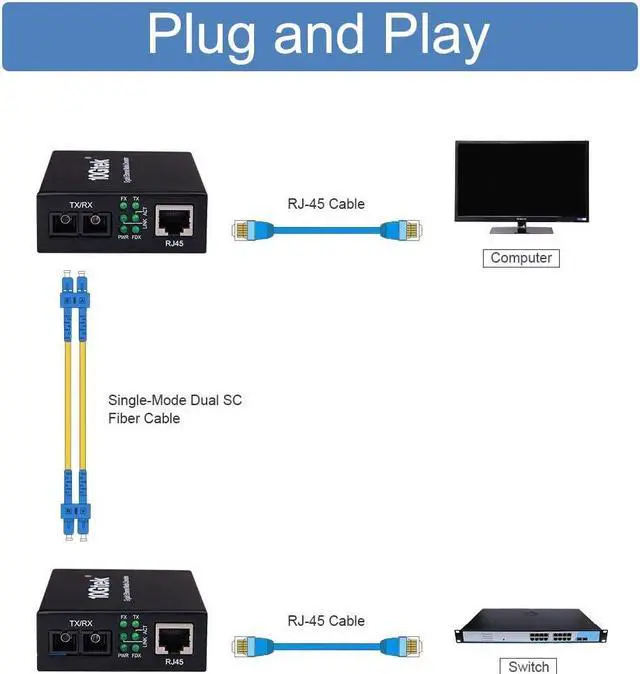

HiFiber's A7S2 series Media Converter is use to expanding existing Gigabit Ethernet networks. The easy implementation and expansion of 1000Base-TX/FX networks can be further assured with this converter. The converter is completely transparent when connected so the network performs exactly the way it did before - only now, it allows the co-existence of both copper and fiber mediums.
Main Features: Complies with IEEE 802.3, IEEE 802.3 u, IEEE 802.3 z, IEEE 802.3 ab, IEEE 802.3 x Auto negotiation function allows UTP port to auto select 10M, 100M or 1000M Ethernet port supports MDI/MDI-X auto crossover Extends distances up to 20km (single mode fiber) Auto MDI/MDI-X support on RJ-45 port Support Full Duplex and Half Duplex Status LED's for TX, FX LINK/ACT, POWER, FDX to easily monitor network status 1Mbit RAM for data buffer Supports jumbo frame size 9K bytes
Optical Port: 1310nm Single mode
Connectors: SC connector
Ethernet Port:
Connectors: RJ-45 Connector
LED Indicators: FX, TX, Link/Act(Left/Right), FDX, PWR
FX: Light on when fiber speed is 1000Mbps, else light off
TX: Light on when TP speed is 1000Mbps, else light off
Link/ACT: Left side is indicate for fiber port link/act and right side for TP, light flashing when data transmitting and receiving
FDX: Light on when TP full-duplex mode is active, light off when TP half-duplex mode is active
PWR: Light on when DC power on, else light off

Specifications

: Output
voltage: 5VDC 1.0A
Power dissipation: 3 watts
Housing: Metal enclosure

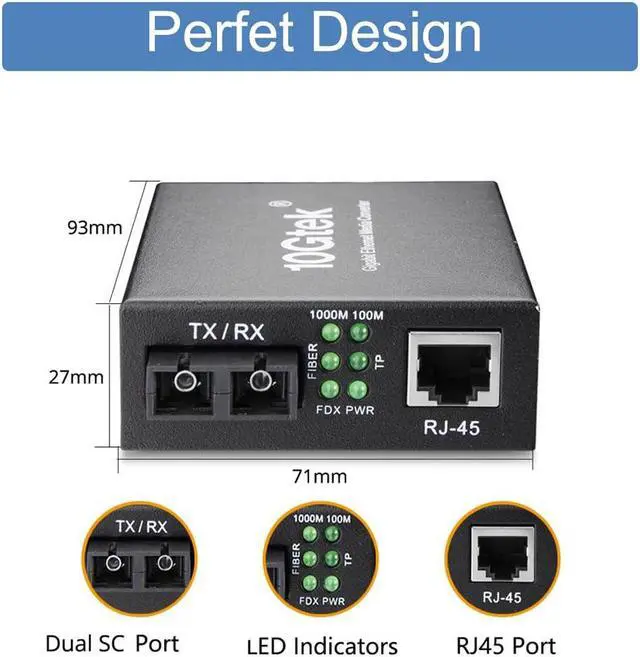

Dimensions: 93 x 71 x 27mm (D x W x
H) Weight: 0.5 kg
Operating Temperature: 0°C to 60°C
Storage Temperature: -20°C to 70°C
Warranty: 2 years
