LGA 1151 Micro ATX Motherboard, DDR4 64GB M.2 NVME Support with USB3.0/SATA3.0, All Solid Capacitors for Desktop PC Builds
- DDR4 SO DIMM: This desktop motherboard adopts channel DDR4 SO DIMM, and it supports up to 64GB.
- 32GB/s Transmission: This computer motherboard is equipped with M.2 hard disk interface which supports 32GB/s speed.
- SATA3.0 Interface: This PC motherboard adopts SATA3.0 interface that features strong compatibility and provide fast reading speed.
- All Solidstate Capacitance: This LGA 1151 motherboard adopts all solidstate capacitance that provides stable performance and extends service life of motherboard.
- Easy Expansion: This server motherboard is designed with HD Multimedia Interface and VGA interface. M.2 interface supports NGFF and NVME protocol.
+
+
Overview
Specs
Reviews
Spec:
Item Type: Desktop Motherboard
Material: Printed Circuit Board
Chipset: H110
Motherboard Framework: M ATX

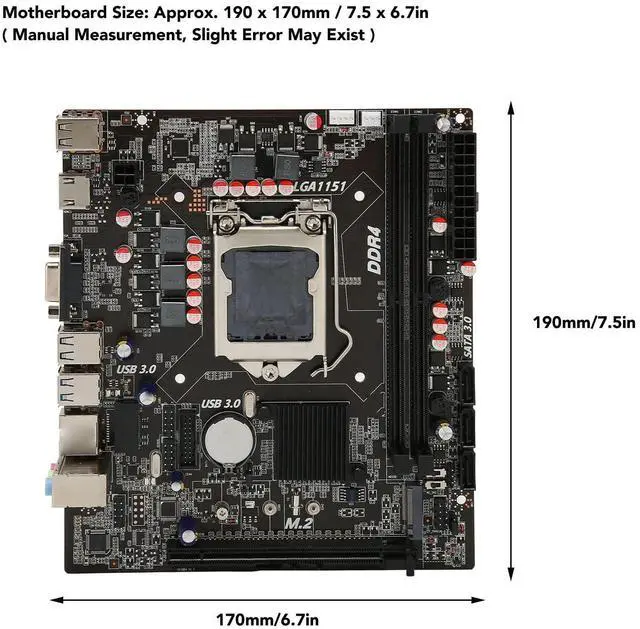

Motherboard Size: Approx. 190 x 170mm / 7.5 x 6.7 in ( Manual Measurement, Slight Error May Exist )
CPU Slot Type: Supports LGA 1151
Netword Card Chip: 100M Netword Card Chip
Graphics Card Slot: PCI E X16 Gen 3.0
Supported Memory Type: 2 x DDR4
Maximum Memory Capacity: 2 x 32GB (64GB in Total)
SATA Interface: SATA 3.0 x 3
USB Interface: USB 3.0 x 2, USB 2.0 x 4
Sound Adapter: ALC897
Power Supply: 24 Pin x 1, 4 Pin x 1

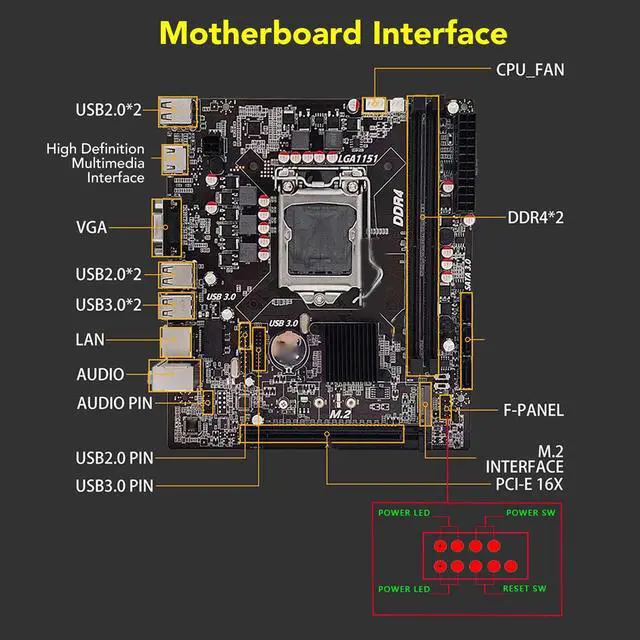

Expansion Interface: 1 x HD Multimedia Interface, 1 x VGA, M. 2 Interface(NGFF, NVME Protocol Supported)
Battery Type: CR2032 Button Battery (Inbuilt)
Battery Capacity: 240mAh
Package List:
1 x Desktop Motherboard
1 x Baffle
1 x SATA Cable
Item Type: Desktop Motherboard
Material: Printed Circuit Board
Chipset: H110
Motherboard Framework: M ATX
Motherboard Size: Approx. 190 x 170mm / 7.5 x 6.7 in ( Manual Measurement, Slight Error May Exist )
CPU Slot Type: Supports LGA 1151
Netword Card Chip: 100M Netword Card Chip
Graphics Card Slot: PCI E X16 Gen 3.0
Supported Memory Type: 2 x DDR4
Maximum Memory Capacity: 2 x 32GB (64GB in Total)
SATA Interface: SATA 3.0 x 3
USB Interface: USB 3.0 x 2, USB 2.0 x 4
Sound Adapter: ALC897
Power Supply: 24 Pin x 1, 4 Pin x 1
Expansion Interface: 1 x HD Multimedia Interface, 1 x VGA, M. 2 Interface(NGFF, NVME Protocol Supported)
Battery Type: CR2032 Button Battery (Inbuilt)
Battery Capacity: 240mAh
Package List:
1 x Desktop Motherboard
1 x Baffle
1 x SATA Cable
