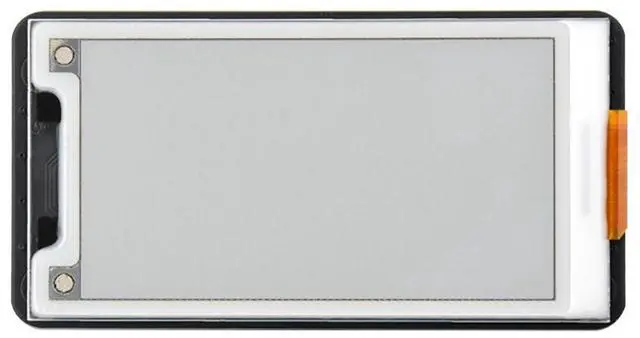

iiunius 2.15inch e-Paper HAT+ (G) for Raspberry Pi 5/4B/3B/Zero/Zero W/Zero 2W/Pico/Pico W/Pico WH/Arduino/Jetson Nano, 296x160 Resolution Red/Yellow/Black/White Four Color SPI Interface
- No backlightE-ink display no backlight, keeps displaying last content for a long time even when power down; Ultra low power consumption, basically power is only required for refreshing

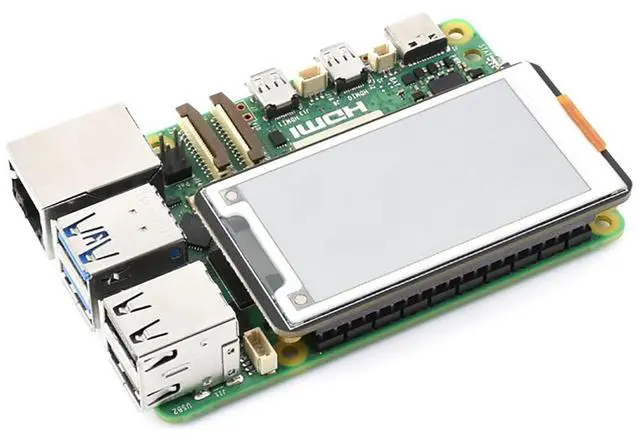

- Pi 40PIN GPIO headerStandard RaPi 40PIN GPIO Header, compatible with Raspberry Pi series boards, Jetson Nano, RDK X3

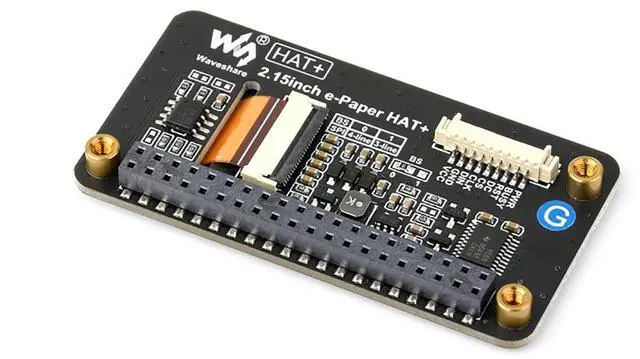

- SPI Control Interfacewaveshare eink Onboard SPI Control Interface, For Use With Controller Boards Like RPi / Arduino / STM32
- Voltage TranslatorRPi screen, Onboard Voltage Translator, Compatible With 3.3V / 5V MCUs

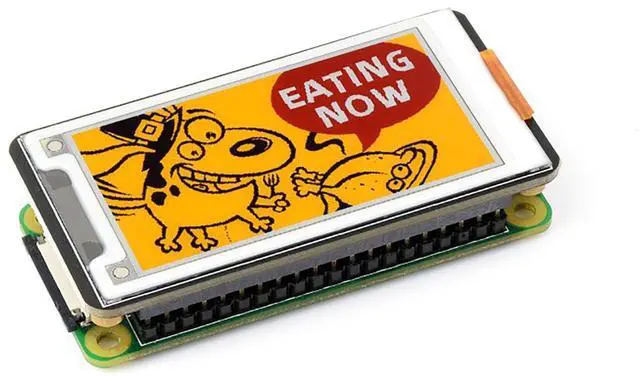

- Application examplesSuitable for price Tags, asset/equipment Tags, shelf labels, conference name tags...
- Development resources and manualComes with online development resources and manual (driver board circuit diagram, examples for Raspberry Pi / Jetson Nano / RDK X3 / Arduino / STM32)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview
2.15 inch e-Paper HAT+ (G) Standard RPi 40PIN GPIO extension header, fits Raspberry Pi series boards, Jetson Nano, RDK X3 Adopts Pi HAT+ standard to improve interoperability, helping the users to design and develop faster, easy to use with other peripherals and extend more functions for Raspberry Pi.
Operating voltage: with driver board: 3.3V /5V
Display color: Red/Yellow/Black/White
Interface: 3-wire SPI, 4-wire SPI
Grey scale: 2
Outline dimensions: with driver board: 65 × 34 (mm)
Full refresh time: 20s
Display size: 48.10 × 26 (mm)
Refresh power: <50mW
DOT PITCH: 0.1625 × 0.1625 (mm)
Standby current: <0.01uA (almost none)
RESOLUTION: 296 × 160 pixels
Viewing angle: >170°

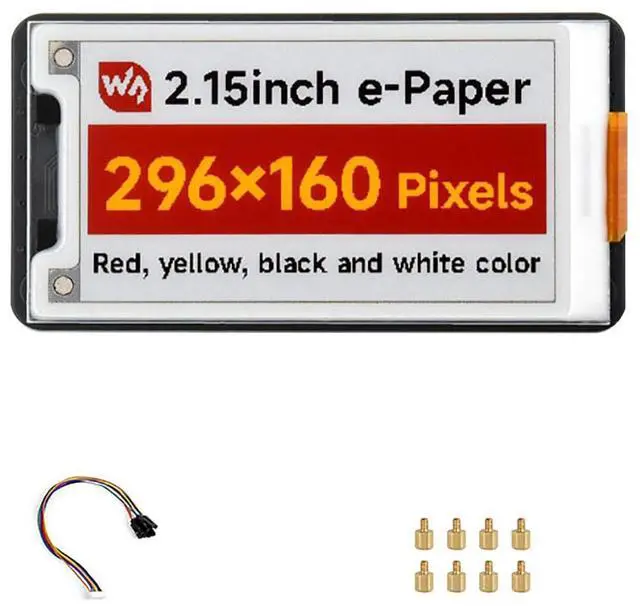

Packing List
2.15 inch e-Paper HAT+ (G) x1
GH 1.25 9PIN cable x1
Screws pack x1
Resources & Services
WIKI: www. waveshare. com/wiki/ 2.15 inch_e-Paper_HAT+_ (G)
2.15 inch e-Paper HAT+ (G) Standard RPi 40PIN GPIO extension header, fits Raspberry Pi series boards, Jetson Nano, RDK X3 Adopts Pi HAT+ standard to improve interoperability, helping the users to design and develop faster, easy to use with other peripherals and extend more functions for Raspberry Pi.
Specifications
Operating voltage: with driver board: 3.3V /5V
Display color: Red/Yellow/Black/White
Interface: 3-wire SPI, 4-wire SPI
Grey scale: 2
Outline dimensions: with driver board: 65 × 34 (mm)
Full refresh time: 20s
Display size: 48.10 × 26 (mm)
Refresh power: <50mW
DOT PITCH: 0.1625 × 0.1625 (mm)
Standby current: <0.01uA (almost none)
RESOLUTION: 296 × 160 pixels
Viewing angle: >170°
Packing List
2.15 inch e-Paper HAT+ (G) x1
GH 1.25 9PIN cable x1
Screws pack x1
Resources & Services
WIKI: www. waveshare. com/wiki/ 2.15 inch_e-Paper_HAT+_ (G)
