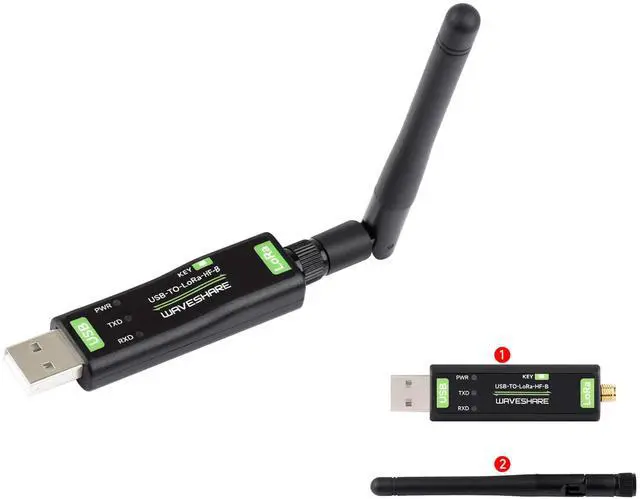

Waveshare USB to LoRa Data Transfer Module Based On SX1262, 850~930MHz Frequency, Driver-Free, Suitable for Data Acquisition in Industry and Agriculture, with XTAL Crystal Oscillator

It is a wireless data transfer unit with USB interfaces based on the SX1262 module,with XTAL Crystal Oscillator. Adopts LoRa Modulate and Demodulate technology, with the advantages of anti-interference and long-distance communication (up to 5KM)
LoRa Chirp Spread Spectrum (CSS) and Frequency Hopping Spread Spectrum (FHSS) technologies greatly improve the performance of long-range communication and anti-interference, widely used in military and industrial communication fields

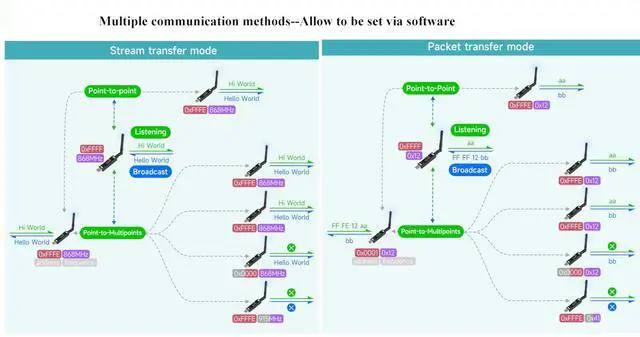

Multiple communication methods --Allow to be set via software ( Stream transfer mode, Packet transfer mode). AT Command Mode--Users can query the current status of the module or set parameters by sending AT commands

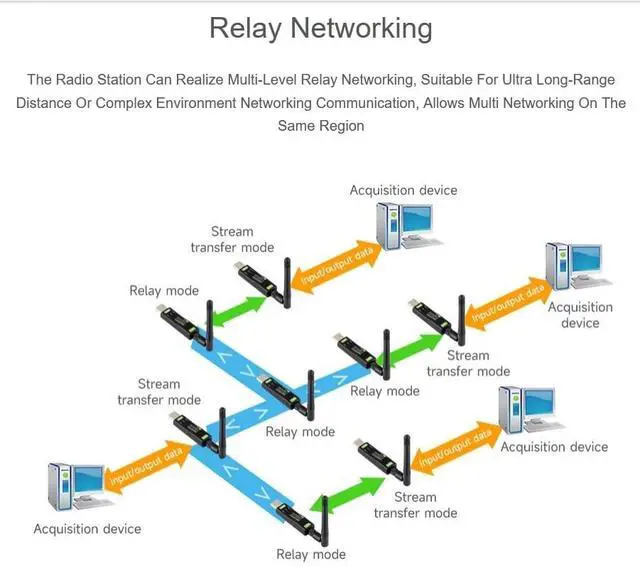

Relay Networking-- The radio station can realize multi-level relay networking, suitable for ultra long-range distance or complex environment networking communication, allows multi networking on the same region
AES Communication-- The secret key is writable but unreadable, the devices with th

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

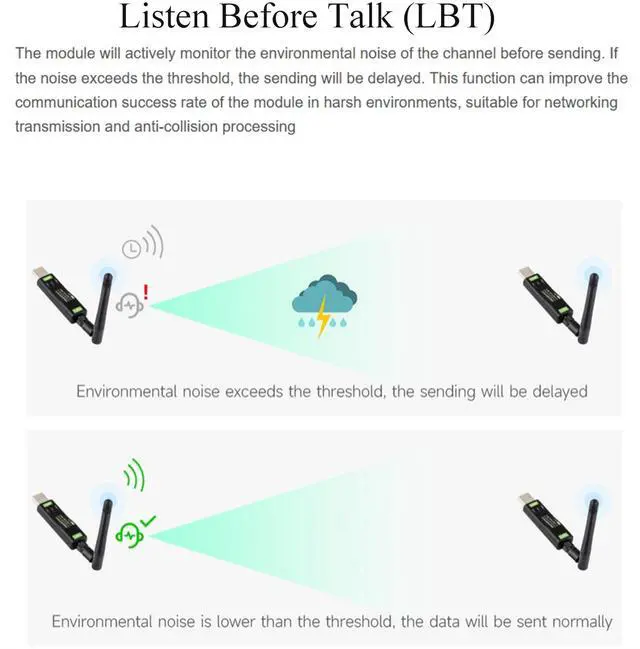

USB to LoRa Data Transfer Module, Based On SX1262 with XTAL Crystal Oscillator, suitable for the wireless data transmission and device control of industry standard or non-standard user protocol And AgricultureFeaturesAdopts LoRa Modulate and Demodulate technology, anti-interference and long-distance communication (up to 5KM) Adopts the original SX1262 chip, with -148dBm reception sensitivity and 22dBm emitt powerSupports preamble detection, with CRC, automatic packetization, 960 bytes cache functionsSupports LBT sending, RSSI output, AT command configurationAES communication to ensure data transmission securitySupports multi-level relay networking to increase the wireless communication distanceSupports host configuration and firmware upgrade (support firmware customization for batch order) Comes with Online Resources and User Manual, please send us message to get it if necessary.

Specifications1.
AppearanceInterfaces: USB Type A.
SMA-KE female connector: 6dBi
omni-directional antenna x 1Enclosure: ABS
caseDimension: 56.40 x 18.40 x 12.52 mm2.
Wireless ParametersFrequency Band: Sub-GHz (410~510MHz, 850~930MHz)Signal
Modulation: LoRaEncryption
Type: AES128Emit
Power: +22dBm
MaxReception Sensitivity: -148dBm3.
SERIAL ParametersBaud Rate: 1200 ~ 115200bpsParity
Bit: None, Odd, EvenData
Bit: 8 ~ 9 bits4.
Environmental RequirementOperating Temperature: XTAL
version: 0 ~ 50Humidity
Range: 5%
~ 95% relative humidityNote: This Version (USB-TO-LoRa-HF-B) uses XTAL crystal oscillator and is recommended to be used in 0~50 temperature. While USB-TO-LoRa-xF uses TCXO crystal oscillator and is recommended to be use in 0~85 temperature.
(Asin: B0CTC5ZWCR)Package ContentUSB-TO-LoRa-HF-B x1Antenna (850~930MHz) x1
