Unlocked VoIP Gateway, Internet Phone Adapter with 2 Ports for Voice Over IP Comes with a Network Cable, SIP V2 Protocol Support (US Plug)

Specification:
Type: VoIP
GatewayPlug type: US / EU / UK /
AU (100-240V)Brand:
ForModel: PAP2T-NA
PAP2TDHCP: SupportSIP
V2 protocol: SupportSupport fax and multi-voice compression G. 711, G. 726, G. 729, G. 723.1E asily complete configuration access encryption through a web browser to automate firmware upgradesStandard: IEEE 802.3, IEEE

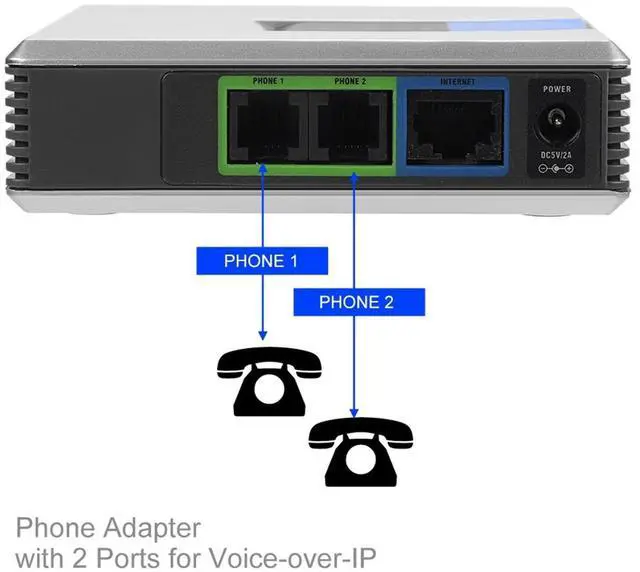

802.3 uPort: 1 10/100 M RJ-45 network interface, 2 standard telephone interfaces, 1
power interfaceCable type: RJ45 Category 5 twisted pair;
RJ11 standard telephone lineBase indicator: Power, Ethernet, telephone (1-2)Network
Protocol: SIP
v2Security features: Key managementVoIP

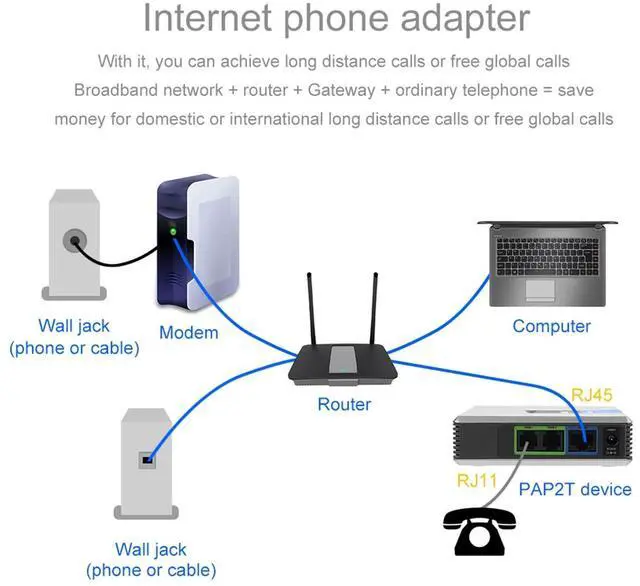

Setup Manual: 1. Connect the PAP2 device to the router with a network cable. The phone is also connected to the PAP2 device and connected to the power supply. 2.
Then,
press: 110#, the phone will report the address assigned by the PAP2 device on the router. Of course, the address assigned by each device is different, and pay attention to the phone prompt tone. For example, the IP address assigned by
PAP2 on the router is: 192.168. 1.102. Open IE and enter 192.168. 1.102 in the address. The following interface will appear. 3. Then, find the administrative entry, admin login. Click the left to find the following interface. Set up the Line 1 phone (line 2 is the second phone, corresponding to phone 1 and phone 2 on the device, the second phone is set up in the same way as the first phone), fill in the, Fill in the server's IP address (this is provided by the VoIP service provider). Fill in your account number and password.
Package List: 1 * VoIP Gateway1 * Power Adapter1 * User Manual1 * Network Cable
