Nanopi R2S Plus Wireless Mini WiFi Router OpenWRT, Portable Smart Home Office Gateway, Rockchip RK3328 Soc DDR4 1GB RAM 32GB eMMC, Onboard Dual Gbps Ethernet M.2 WiFi Module Support Debian Ubuntu
- [Wireless Mini WIFI Router] The NanoPi R2S PLUS is a mini router with edge-computing and dual Gbps Ethernet ports. It adopts Rockchip RK3288 Soc, with 1GB DDR4 RAM and 32GB eMMC 5.1 Flash; CPU: Quad-Core Cortex-A53 CPU, up to 1.5GHz,. And it uses RK805 PMU chip and supports dynamic frequency scaling.
- [Open Source and Programmable] It can support FriendlyWrt, a custom system based on the OpenWrt distribution. It is open source and ideal for developing IoT applications, NAS applications, smart home office gateways, and more. It can also be used as a command line mode for geeks.
- [Dual GBPS Ethernet Ports] The NanoPi R2S Plus Wireless Mini Wifi Router has dual Gbps Ethernet ports, support 1x Internal Gbps Ethernet (RTL8211F chip) and 1 x USB3.0 converted Gbps Ethernet (RTL8153B chip), TX rate is 941Mbps, RX rate is 941Mbps. The USB 2.0 port that can interface with 4G modules, USB HD cameras, USB WiFi modules etc.
- [Larger Expansion interface] NanoPi R2S Plus Computer Wifi Router su
+
+
Overview
Specs
Reviews

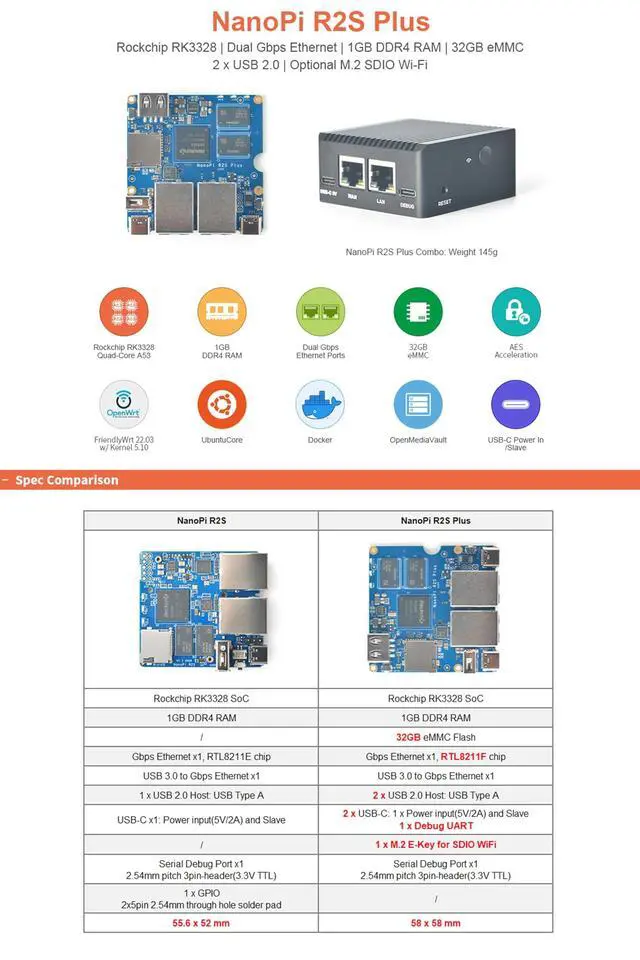

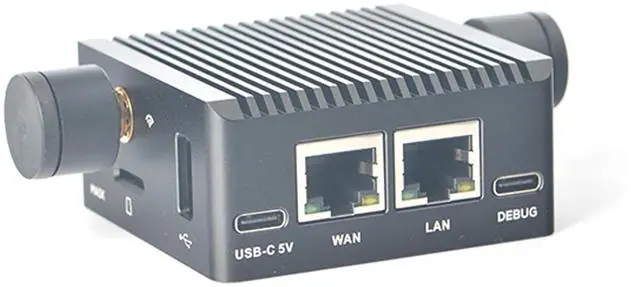

The NanoPi R2S PLUS is a wireless mini wifi router with edge-computing and dual Gbps Ethernet ports. It uses Rockchip's quad-core A53 RK3328 SoC with powerful performance.

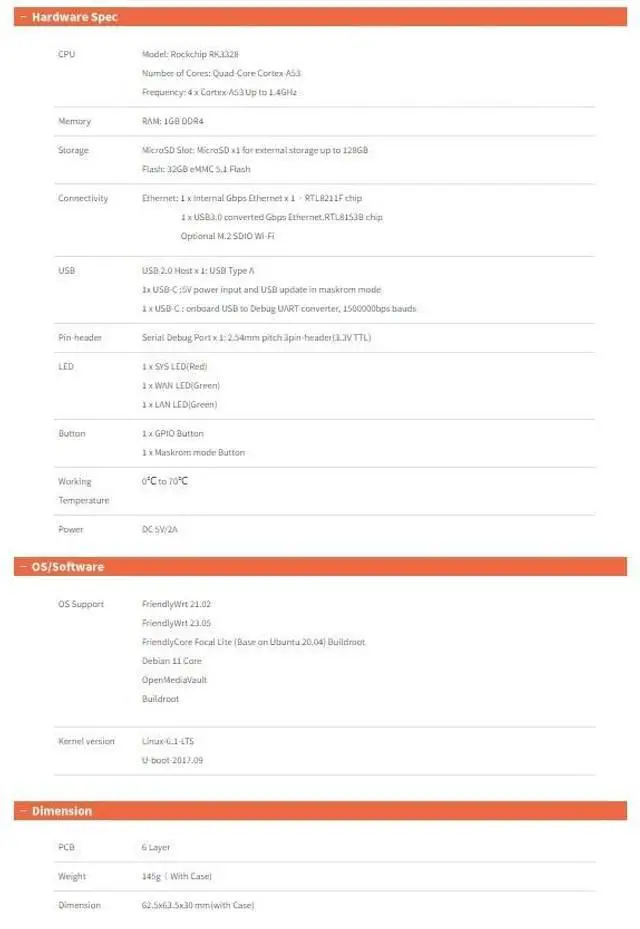

-Specification-CPU:
Model: Rockchip RK3328Number of
Cores: Quad-Core
Cortex-A53Frequency: 4 x Cortex-A53 Up to 1.4GH zMemory 1GB DDR4
RAM
Storage: 32GB eMMC 5.1 Flash, MicroSD x1 for external storage up to 128GBConnectivityEthernet: 1 x Internal Gbps Ethernet x 1, RTL8211F chip1 x USB 3.0 converted Gbps Ethernet, RTL8153B chipOptional M.
2 SDIO Wi-FiUSB: USB 2.0
Host x 1: USB
Type A1x USB-C: 5V power input and USB update in maskrom mode1 x
USB-C: onboard USB to Debug UART converter, 1500000bps
baudsPin-header: Serial Debug Port x 1: 2. 54mm pitch 3pin-header( 3.3V
TTL)LED: 1 x SYS LED (Red), 1 x WAN LED (Green), 1 x LAN LED (Green)
Button: 1 x GPIO Button, 1 x Maskrom mode
ButtonWorking Temperature 0 to 70Power: DC
5V/2APCB: 6
LayerWeight: 145gWith
Case)Dimension: 62.5 mm x 63.5 mm x 30mm (with Case) -OS Support-FriendlyWrt 21.02, FriendlyWrt 23.05F riendlyCore Focal Lite (Base on Ubuntu 20.04 ) BuildrootDebian 11
CoreOpenMediaVaultBuildrootKernel version: Linux- 6.1 -LTS, U-boot- 2017.09 -Package Content-NanoPi R2S Plus Mini Wifi Router x1Antenna x2M. 2 SDIO WiFi Module x1 (embedded) -Technical
Support- Wiki: "wiki. friendlyelec. com/wiki/index. php/NanoPi_R2S_Plus".
Getting Started: "wiki. friendlyelec. com/wiki/index. php/NanoPi_R2S_Plus#Get_Started". Please click "WayPonDEV" and ask a question. Please leave the message "wpd#youyeetoo&com (#-@, &-. )".
-Specification-CPU:
Model: Rockchip RK3328Number of
Cores: Quad-Core
Cortex-A53Frequency: 4 x Cortex-A53 Up to 1.4GH zMemory 1GB DDR4
RAM
Storage: 32GB eMMC 5.1 Flash, MicroSD x1 for external storage up to 128GBConnectivityEthernet: 1 x Internal Gbps Ethernet x 1, RTL8211F chip1 x USB 3.0 converted Gbps Ethernet, RTL8153B chipOptional M.
2 SDIO Wi-FiUSB: USB 2.0
Host x 1: USB
Type A1x USB-C: 5V power input and USB update in maskrom mode1 x
USB-C: onboard USB to Debug UART converter, 1500000bps
baudsPin-header: Serial Debug Port x 1: 2. 54mm pitch 3pin-header( 3.3V
TTL)LED: 1 x SYS LED (Red), 1 x WAN LED (Green), 1 x LAN LED (Green)
Button: 1 x GPIO Button, 1 x Maskrom mode
ButtonWorking Temperature 0 to 70Power: DC
5V/2APCB: 6
LayerWeight: 145gWith
Case)Dimension: 62.5 mm x 63.5 mm x 30mm (with Case) -OS Support-FriendlyWrt 21.02, FriendlyWrt 23.05F riendlyCore Focal Lite (Base on Ubuntu 20.04 ) BuildrootDebian 11
CoreOpenMediaVaultBuildrootKernel version: Linux- 6.1 -LTS, U-boot- 2017.09 -Package Content-NanoPi R2S Plus Mini Wifi Router x1Antenna x2M. 2 SDIO WiFi Module x1 (embedded) -Technical
Support- Wiki: "wiki. friendlyelec. com/wiki/index. php/NanoPi_R2S_Plus".
Getting Started: "wiki. friendlyelec. com/wiki/index. php/NanoPi_R2S_Plus#Get_Started". Please click "WayPonDEV" and ask a question. Please leave the message "wpd#youyeetoo&com (#-@, &-. )".
