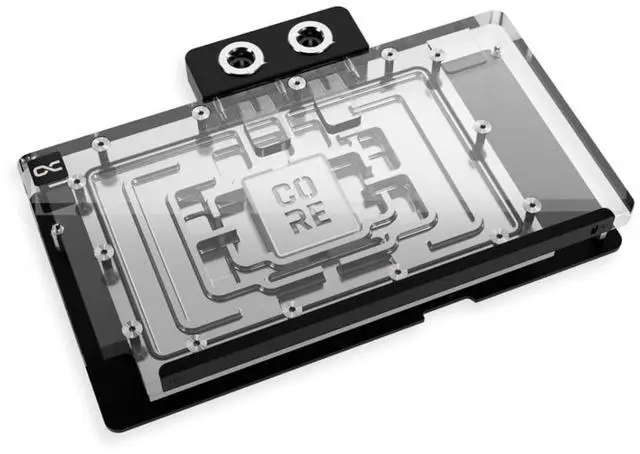

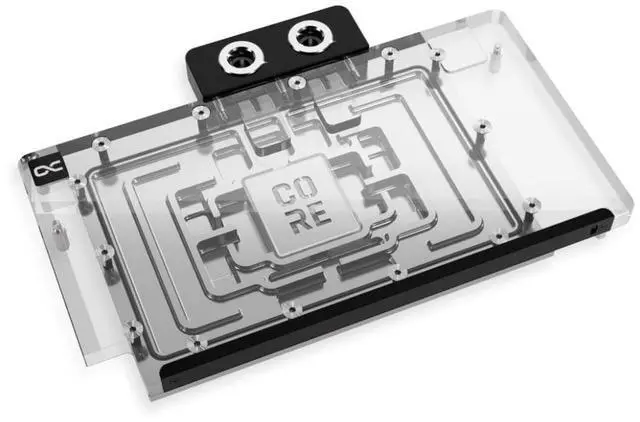

Alphacool Core Geforce RTX 5090 TUF Gaming GPU Water Block with Backplate
- Part of the Core product series, these coolers combine the highest quality with exceptional performance
- The series continues to feature high-quality brass connectors that ensure optimal quality and safety

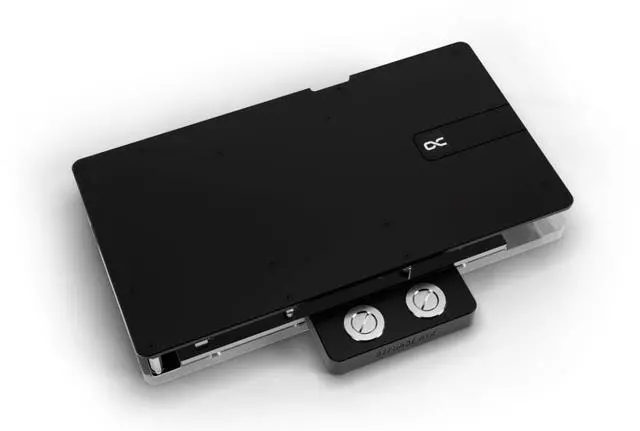

- The specially adapted aluminum backplate covers the entire backside of the copper cooler, ensuring a clear and uniform appearance
- Dimensions total (L x W x H): 235.95 x 155.57 x 34.12mm
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

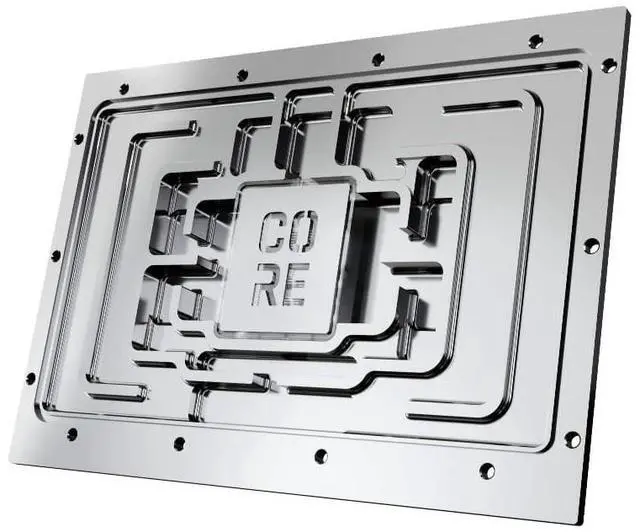

Alphacool introduces its new series of graphics card water coolers for the latest Nvidia GeForce RTX generation. Part of the Core product series, these coolers combine the highest quality with exceptional performance. Thanks to an optimized technical design, these GPU coolers deliver outstanding cooling performance. At the heart of the cooler is a copper block, precisely milled from a single piece and complemented by a precisely crafted brass terminal with a nylon cover. A chrome finish enhances the copper cooler's durability and provides a smoother, more radiant surface than traditional nickel plating.
The GPU water cooler has been completely overhauled technically. To optimize cooling performance, the distances between the cooler and the components of the PCB were redefined and tested. The water flow was simulated using the most advanced software and verified through practical tests. These extensive tests allowed for improvements to the cooler base and jetplate, ensuring the best possible cooling performance for the new Nvidia GeForce RTX generation.
Compatibility: - Asus ASUS TUF Gaming GeForce RTX 5090 32GB GDDR7 (90YV0LY1-M0NA00) - Asus ASUS TUF Gaming GeForce RTX 5090 32GB GDDR7 OC Edition (90YV0LY0-M0NA00) Technical data cooler Dimensions total (L x W x
H): 235.95 x 155.57 x 34.12 mm
Material cooler: chrome-plated copper
Material cooler top: Acrylic
Material terminal: Nylon Material
Connection thread: Brass
Max working temperature: 60 C
Pressure tested: 0.8 bar
Threads: 4 x G1/4"
Thickness cooler bottom: 3.25 mm
Thickness cooling fins: 0.4 mm
Distance cooling fins: 0.4 mm

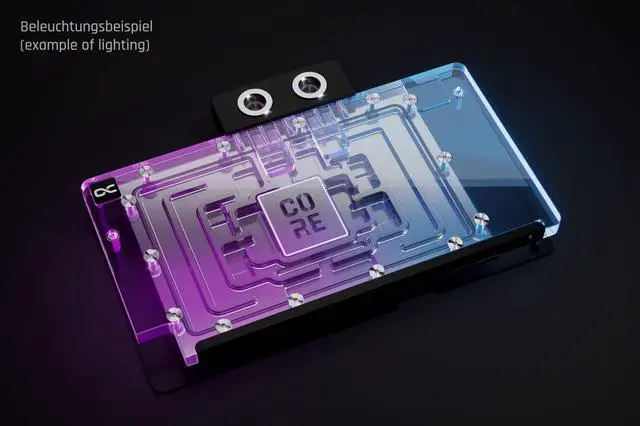

Illumination: digital aRGB LEDs Power connector digital aRGB
LEDs: 3-Pin JST Power digital aRGB
LEDs: 5V Number of digital aRGB
LEDs: 8
Model: 10269
The GPU water cooler has been completely overhauled technically. To optimize cooling performance, the distances between the cooler and the components of the PCB were redefined and tested. The water flow was simulated using the most advanced software and verified through practical tests. These extensive tests allowed for improvements to the cooler base and jetplate, ensuring the best possible cooling performance for the new Nvidia GeForce RTX generation.
Compatibility: - Asus ASUS TUF Gaming GeForce RTX 5090 32GB GDDR7 (90YV0LY1-M0NA00) - Asus ASUS TUF Gaming GeForce RTX 5090 32GB GDDR7 OC Edition (90YV0LY0-M0NA00) Technical data cooler Dimensions total (L x W x
H): 235.95 x 155.57 x 34.12 mm
Material cooler: chrome-plated copper
Material cooler top: Acrylic
Material terminal: Nylon Material
Connection thread: Brass
Max working temperature: 60 C
Pressure tested: 0.8 bar
Threads: 4 x G1/4"
Thickness cooler bottom: 3.25 mm
Thickness cooling fins: 0.4 mm
Distance cooling fins: 0.4 mm
Illumination: digital aRGB LEDs Power connector digital aRGB
LEDs: 3-Pin JST Power digital aRGB
LEDs: 5V Number of digital aRGB
LEDs: 8
Model: 10269
