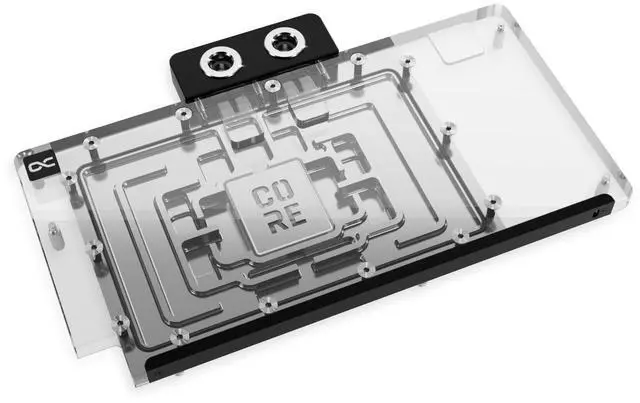

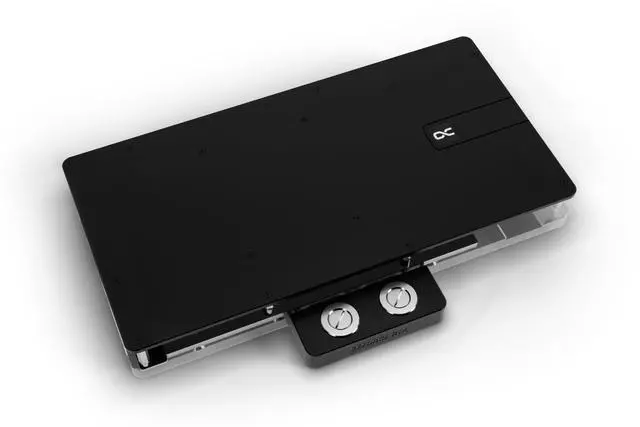

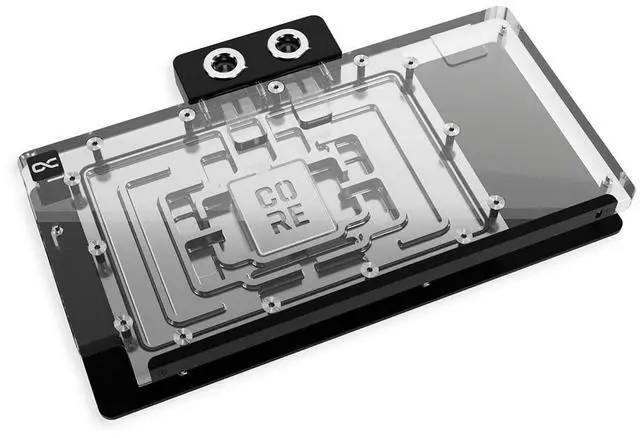

Alphacool Core Geforce RTX 5090 ROG Astral GPU Water Block with Backplate

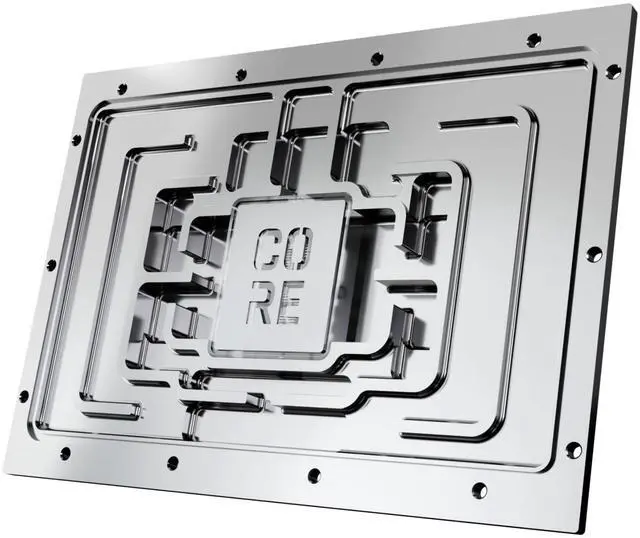

Alphacool introduces its new series of graphics card water coolers for the latest Nvidia GeForce RTX generation. Part of the Core product series, these coolers combine the highest quality with exceptional performance. Thanks to an optimized technical design, these GPU coolers deliver outstanding cooling performance. At the heart of the cooler is a copper block, precisely milled from a single piece and complemented by a precisely crafted brass terminal with a nylon cover. A chrome finish enhances the copper cooler's durability and provides a smoother, more radiant surface than traditional nickel plating.

The GPU water cooler has been completely overhauled technically. To optimize cooling performance, the distances between the cooler and the components of the PCB were redefined and tested. The water flow was simulated using the most advanced software and verified through practical tests.
Compatibility: - Asus ASUS ROG Astral GeForce RTX 5090 32GB GDDR7 (90YV0LW1-M0NA00) - Asus ASUS ROG Astral GeForce RTX 5090 32GB GDDR7 OC Edition (90YV0LW0-M0NA00) - Asus ASUS ROG Astral LC GeForce RTX 5090 32GB GDDR7 (90YV0LW3-M0NA00) - Asus ASUS ROG Astral LC GeForce RTX 5090 32GB GDDR7 OC Edition (90YV0LW2-M0NA00) Technical data cooler Dimensions total (L x W x
H): 260.25 x 160.90 x 34.32 mm
Material cooler: chrome-plated copper
Material cooler top: Acrylic
Material terminal: Nylon Material
Connection thread: Brass
Max working temperature: 60 C
Pressure tested: 0.8 bar
Threads: 4 x G1/4"
Thickness cooler bottom: 3.25 mm
Thickness cooling fins: 0.4 mm
Distance cooling fins: 0.4 mm

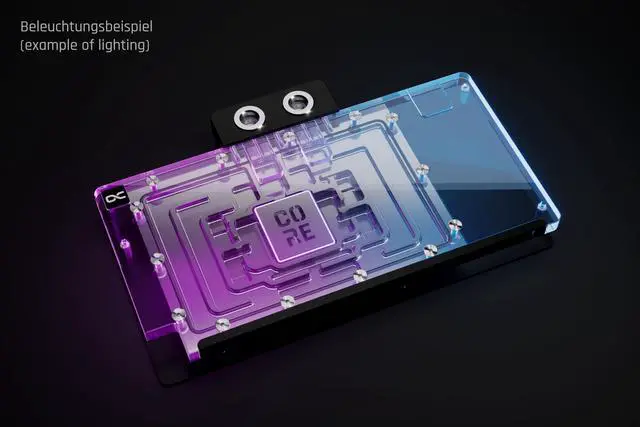

Illumination: digital aRGB LEDs Power connector digital aRGB
LEDs: 3-Pin JST Power digital aRGB
LEDs: 5V Number of digital aRGB
LEDs: 8
Model: 10270
