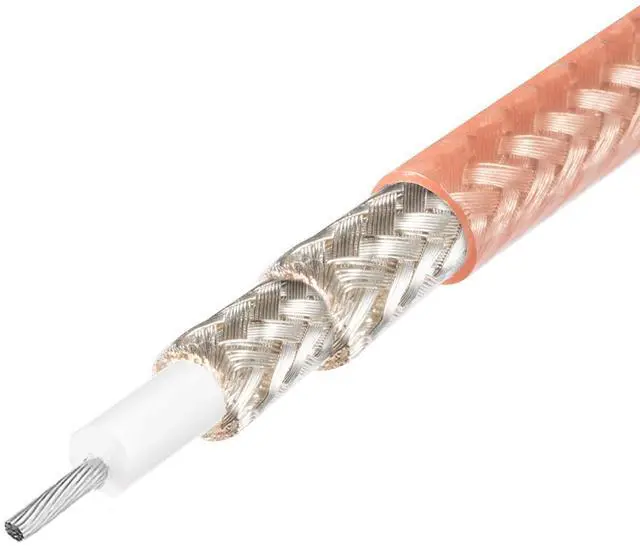

eifagur 40 Feet RG400 M17/128 Double Braid Shielded Coax Coaxial Cable

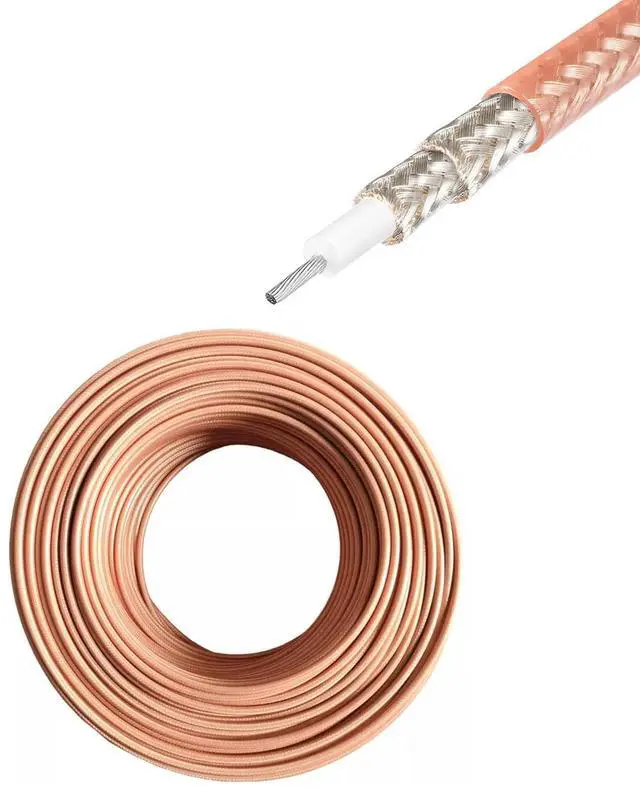

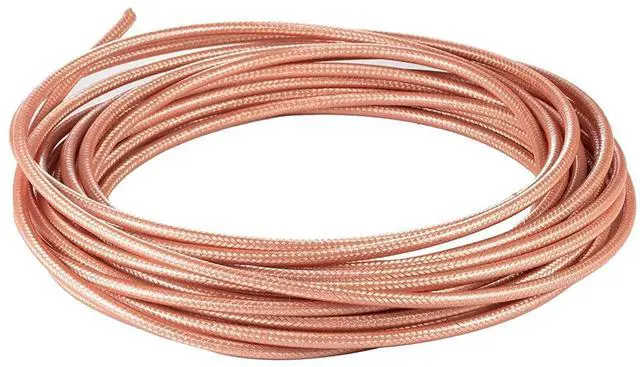

- Package includes:1x 40FT/12.2 Meter RF Coax RG400 Cable;
- Impedance:50 ohm
- Low loss,Phase stability
- Superior shielding performance
- Max. Operating Frequency: 12400MHz;

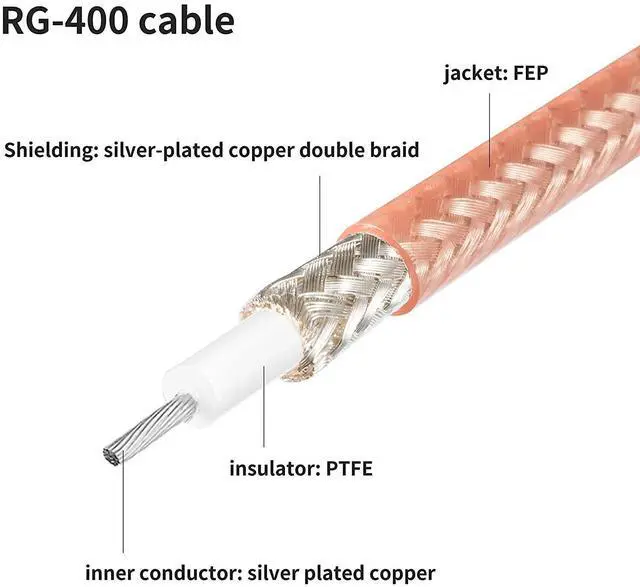

- Material--Inner conductor: silver plated copper
- Insulator: PTFE
- Outer conductor(shielding) : silver plated copper double braid
- Jacket (insulation sheath): FEP;
- Diameter-- Inner conductor: 19*0.203mm
- Insulation:2.95mm
- Outer conductor( shielding):3.95mm

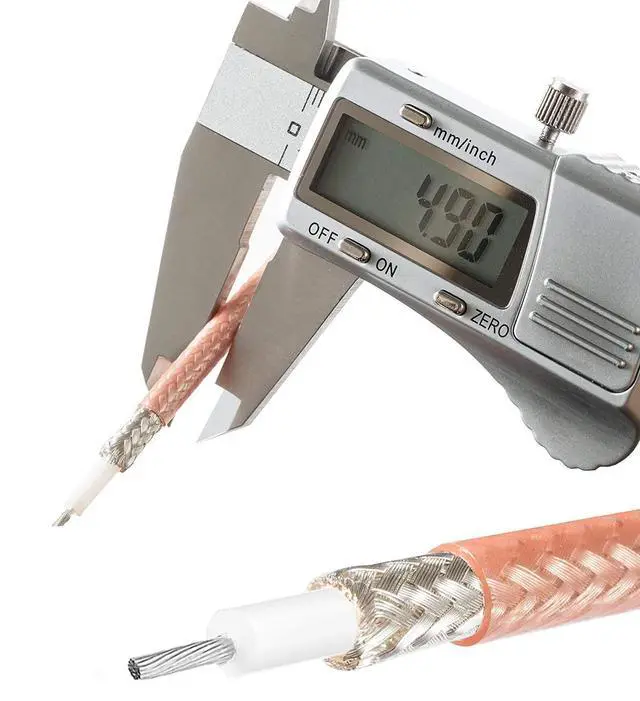

- Jacket (insulation sheath): 4.95mm;
- Don't worry about any problems, we have carefully checked each product, Any questions, please feel free to contact us, will reply within 24 hours;
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
SpecificationNom.
Capacitance Conductor to Shield(pF/m): 105Nom.
Characteristic Impedance: 50ohmNom.
Velocity of Propagation: 70%Min.
Bend Radius (Install): 25mmVoltage
Rating (VMS): 1900Max.
Operating Frequency: 12400MHzNom.
Attenuation( dB/m): 0.144 (100MHz) Nom.
Attenuation( dB/m): 0.295 (400MHz) Nom.
Attenuation( dB/m): 0.482 (1000MHz) Nom.
Attenuation( dB/m): 1.184 (5000MHz) Nom.
Attenuation( dB/m): 1.899 (11000MHz)
Capacitance Conductor to Shield(pF/m): 105Nom.
Characteristic Impedance: 50ohmNom.
Velocity of Propagation: 70%Min.
Bend Radius (Install): 25mmVoltage
Rating (VMS): 1900Max.
Operating Frequency: 12400MHzNom.
Attenuation( dB/m): 0.144 (100MHz) Nom.
Attenuation( dB/m): 0.295 (400MHz) Nom.
Attenuation( dB/m): 0.482 (1000MHz) Nom.
Attenuation( dB/m): 1.184 (5000MHz) Nom.
Attenuation( dB/m): 1.899 (11000MHz)
