youyeetoo Sipeed Tang Primer 20K FPGA Development Board MCU, with LUT4, PMOD Port *4, for RISC-V and Embedded Development (with Dock ext-Board)

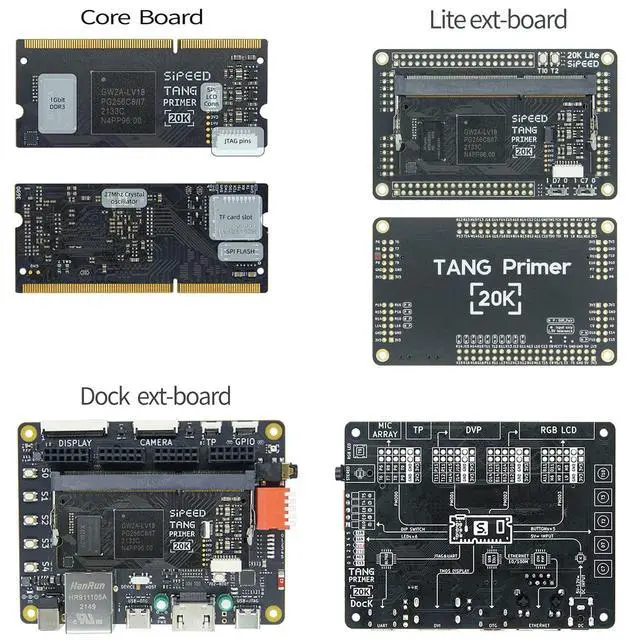

FeatureTang Primer 20K core board uses GW2A-LV18PG256C8I7 as the main chip, which has rich internal resources such as high-performance DSP, high-speed LVDS interface and BSRAM memory.

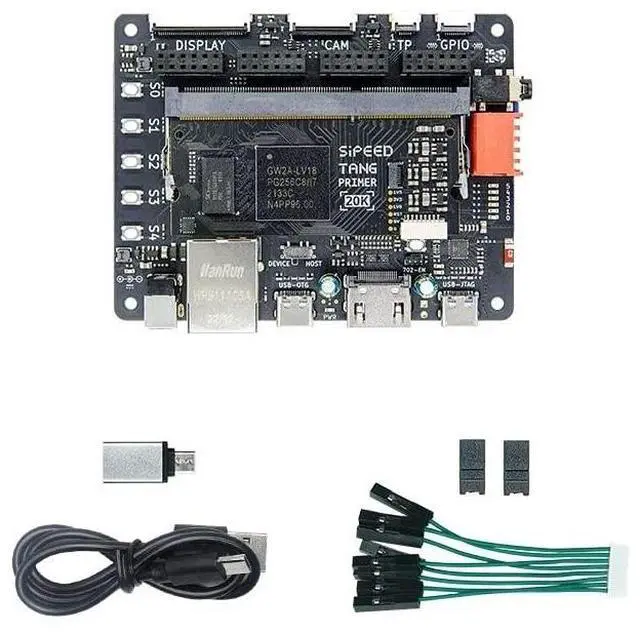

Shipping list: Dock ext-Board package, WIKIwiki.sipeed.com/hardware/en/tang/tang-primer-20k/primer-20k.html
The core board is equipped with peripheral components such as DDR3 memory particles and power ICs, so that users can use the core board alone to quickly develop and verify projects for high-speed and low-cost applications.

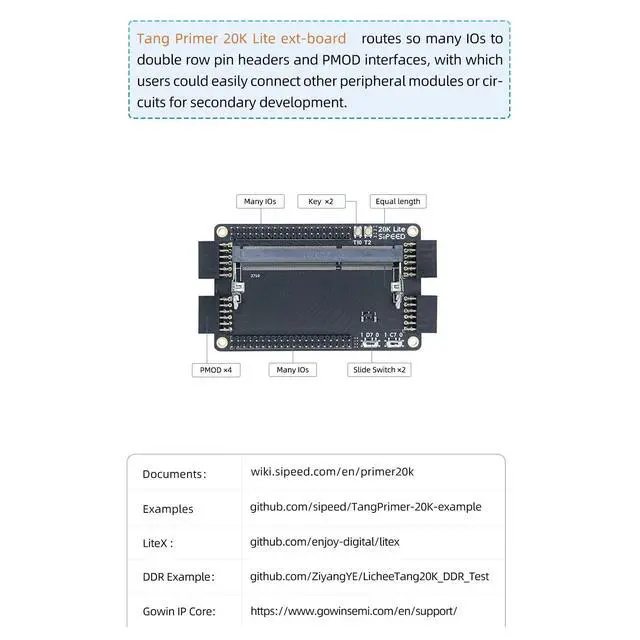

The Lite ext-board leads out many I0s through pin headers and PMOD interfaces, and users can easily connect other peripheral modules or circuits for secondary development.
The Dock ext-board is equipped with a wealth of peripheral resources, such as onboard USB-JTAG & UART circuit, Ethernet PHY and RJ-45 connector, USB2.0 PHY, HDMI output interface, stereo output circuit and 3.5mm headphone connector, RGB Screen connector, DVP camera connector. ASINB0BNVQVHG6
Minima

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

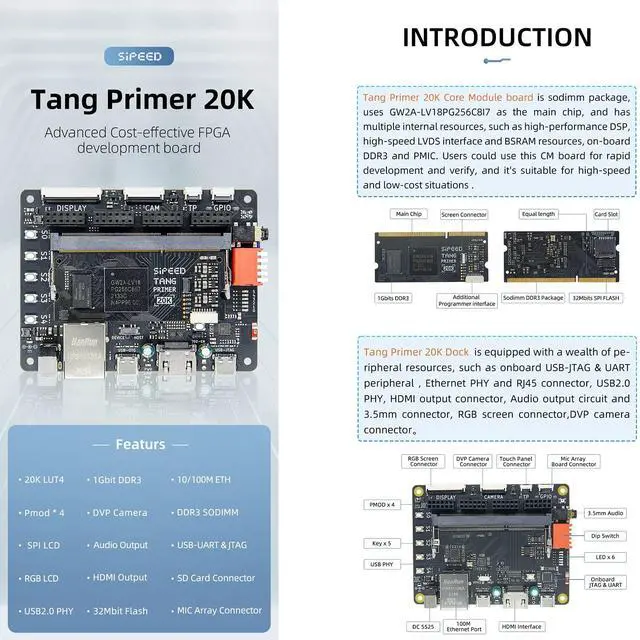

IntroductionTang Primer 20K is a DDR3 SODIMM-shaped core board based on the GW2A-LV18PG256C8/I7 main chip, with
two expansion boards prepared: Dock and Lite.

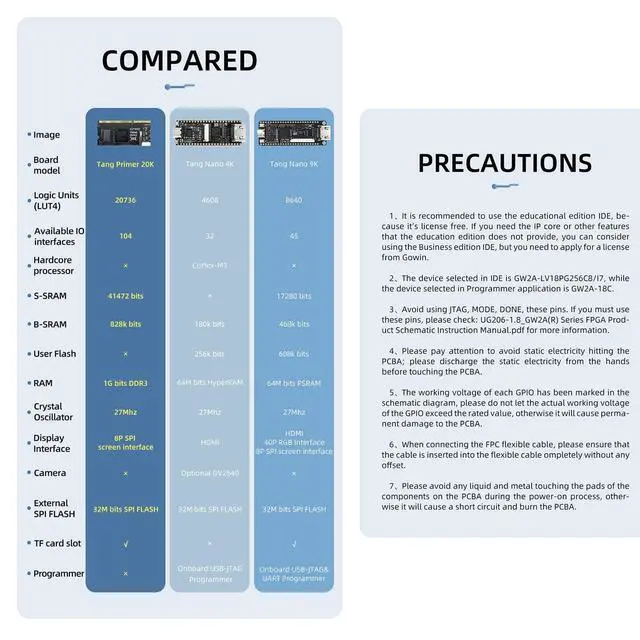

ParametersFPGA Chip: GW2A-LV18PG256C8/I7
Logic units (LUT4): 20736
Flip-Flop (FF): 15552
Shadow SRAM (S-SRAM): 41472 bits
Block SRAM (B-SRAM): 828K bits Number of
B-SRAM: 46 18x18
Multiplier: 48
PLLs: 4
I/O Bank: 8
Memory: 128M
DDR3 Flash: 32Mbits NOR Flash (Read burn
Flash) Debugger: Jtag + Uart (JST SH 1.0 8Pins connector)
SD card slot: 1 (Push-pull type)
Display: 8Pins spi lcd connector
Package: 204P
DDR3 Available IO: 117Quick
Start: wiki. sipeed. com/hardware/en/tang/tang-primer-20k/primer-20k.
htmlSupport: support @youyeetoo.
comCommunication and customized consulting: am2 @youyeetoo.
comForum: forum. youyeetoo. com (Recommend)
