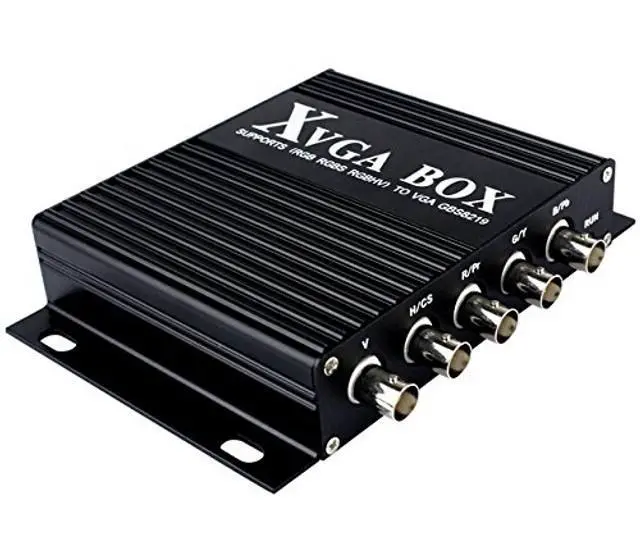

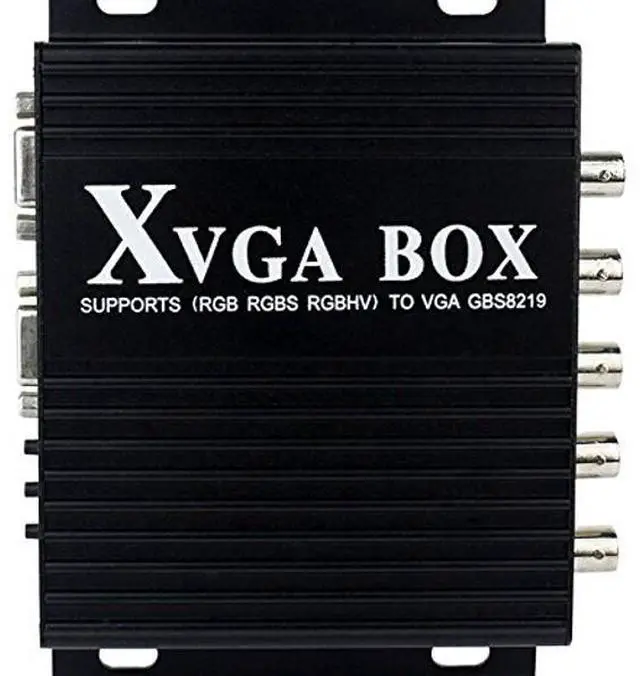

Baile GBS-8219 XVGA Box CGA EGA RGB RGBS RGBHV to VGA Industrial Monitor Video Converter for FHKD
- Input Horizontal Frequency Rate 12 kHz to 40 kHz automatically recognized
- Output resolution: 800*600/60Hz standard VGA or custom-resolution
- Support RGBHV (separate sync) ,RGBS (composite sync), automatically recognized
- Support Vertical Resolution from line200 to line 600 automatically recognized, Support variable Horizontal Resolution automatically recognized
- Support RGB and YPbPr, Support Interlaced Scanning and Line by Line Scanning
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Introduction: Based on the GBS 8218 (XRGB BOX), newly released XVGA BOX(RGB, MDA, CGA, EGA to VGA Converter) was launched of an innovative industrial Video Converter, GBS 8219 video converter of industrial fully automated operation, be able to convert all Rgbhv, Rgbs, Rgb, MDA, CGA, EGA signal to VGA signal, and was widely for various kinds of FHKD, such as Digital Control Machine Tool Display, DCS Display, injection molding machine, analytical instrument, Specialized Display of navigation and import production line, armamentarium, Specialized Display of airport, railway and financial facility, Special size Display.

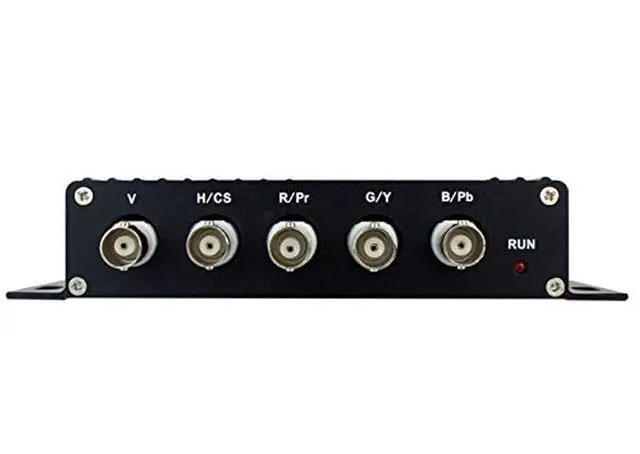

Input: -
Signals: MDA, CGA, EGA, RGB, RGB Sog, RGBS, RGBHV, YPbPr-
Interface: 9pin, 3pin, 6pin, 14pin, 20pin, 25pin- Horizontal
Frequency Rate (H): 12kHz
to 40kHz automatically recognizedOutput: -

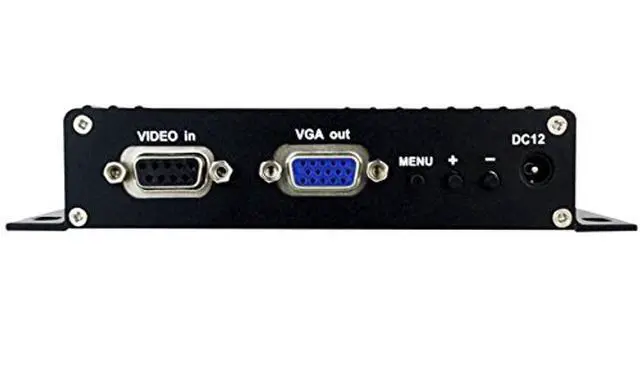

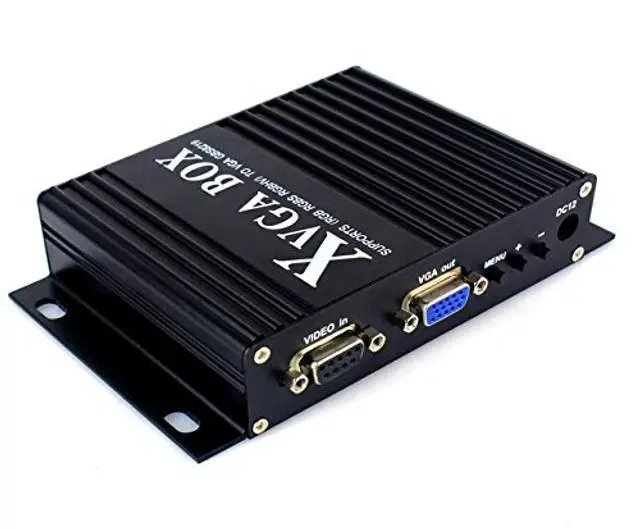

Supports: D-15pin standard VGA/SVGA, Resolution: 800*600/60Hz 640*480 /60Hz-
Interface: D-Sub 15 PIN standard
VGA portPower: DC
12V 1.0AM odel: GBS
8219Color:
BlackWeight: 310g
/11ozDimension: 148*101*28 mmPackage
Includes: 1 x GBS-8219 Industrial Monitor Converter1 x COM Interface Cable1 x Power Adapter1 x User Manual
Input: -
Signals: MDA, CGA, EGA, RGB, RGB Sog, RGBS, RGBHV, YPbPr-
Interface: 9pin, 3pin, 6pin, 14pin, 20pin, 25pin- Horizontal
Frequency Rate (H): 12kHz
to 40kHz automatically recognizedOutput: -
Supports: D-15pin standard VGA/SVGA, Resolution: 800*600/60Hz 640*480 /60Hz-
Interface: D-Sub 15 PIN standard
VGA portPower: DC
12V 1.0AM odel: GBS
8219Color:
BlackWeight: 310g
/11ozDimension: 148*101*28 mmPackage
Includes: 1 x GBS-8219 Industrial Monitor Converter1 x COM Interface Cable1 x Power Adapter1 x User Manual
