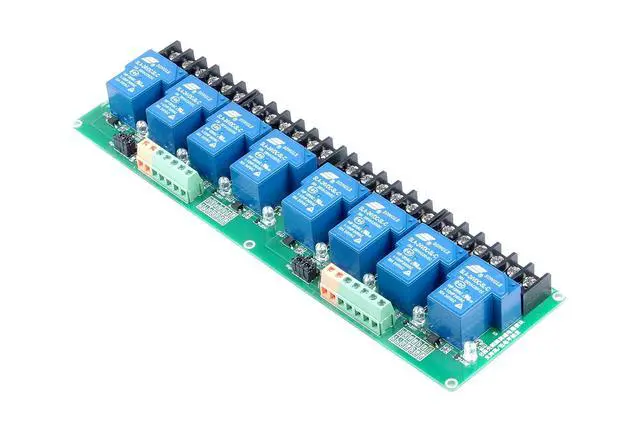

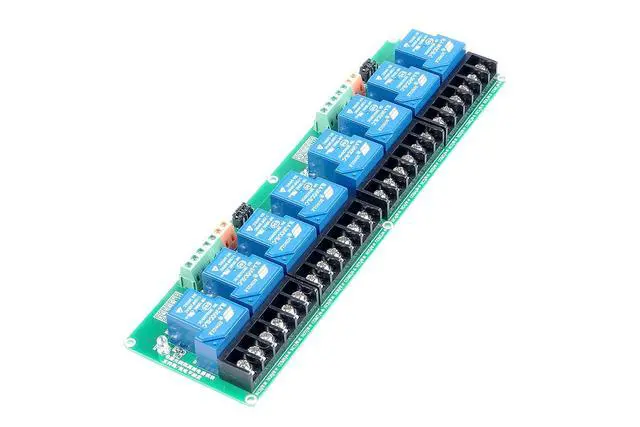

KNACRO DC 24V 30A 8-Channel Relay Module High Low Level Trigger with Optocoupler Isolation Load DC 30V AC 250V 30A for PLC Automation Equipment Control Industrial Control (8-CH 24V)
- Each channel with optocoupler isolation, anti-interference ability.
- Module load voltage: DC30V / AC 250V 30A ; Module Power Supply : DC 5V / 12V / 24VModule supply voltage must be DC, and the voltage to be consistent with the relay voltage..
- Module Power Supply : DC 5V / 12V / 24VModule supply voltage must be DC, and the voltage to be consistent with the relay voltage..
- The module can be set high or low trigger. Each channel with relay on / off LED indicator.

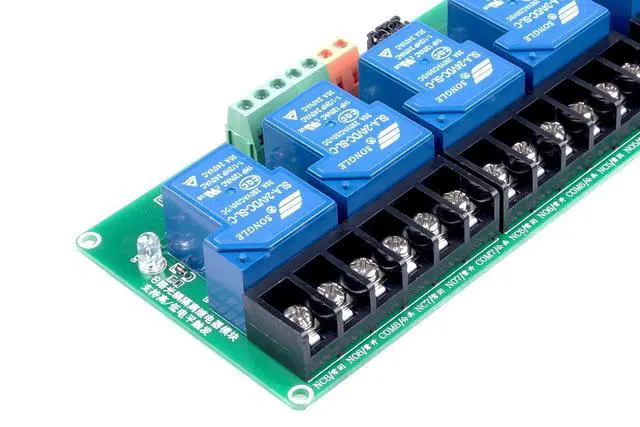

- To ensure stability, uses industrial grade PCB board and 9.5mm barrier terminals.
- Applications: PLC automation equipment control, industrial system control, Internet of Things control, electronic enthusiasts to develop experiments, all kinds of circuit modification.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Supply voltage: DC 5V / 12V / 24V;
Quiescent current: 5mA;
Maximum operating current: 190mA (5V) / 80ma (12v) / 50ma (24v);
Trigger mode: high and low level trigger;
Load voltage: DC 30V / AC250;
Load current: 30A;
Relay life: more than 100, 000 times;
Product weight: 46g (1ch) 200g (2ch) 385g (4ch) 780 (8ch);
Size: 72 * 40 *22 (1ch) / 70 * 72 * 22mm (2ch) /129 * 72 * 22mm (4ch) /252 * 72 * 22mm (L * W * H);
Mounting hole size: 44.5 x 27.5MM (1CH) / 67.5 * 69.5MM (2CH) / 126.5 * 69.5 (4CH) / 249.5 * 69.5 (8CH) (LxW); Module

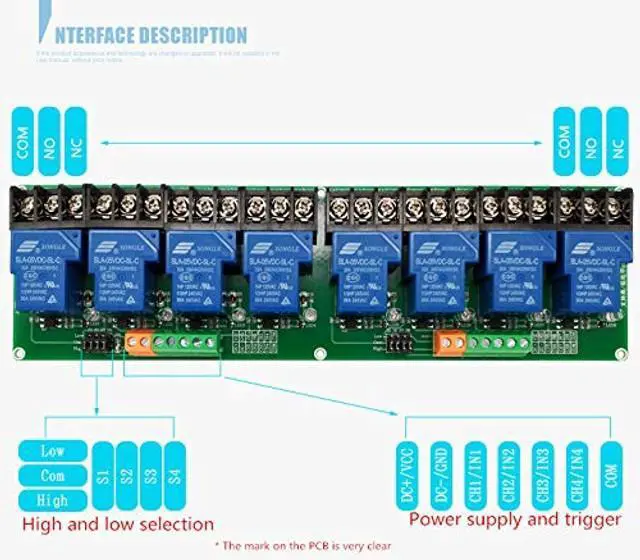

Interface Description: 1.
DC +: DC power supply positive; 2.
DC -: DC power supply module negative; 3.
IN: Signal input terminal(support High/Low Level switch freely); 4.
Normally open (NO): Relay normally open; 5.
Common terminal (COM): Relay common; 6.
Normally closed terminal (NC): relay normally closed terminal;
Trigger voltage range: DC
05V: Low-level
trigger: 0-2V relay ON; 3-5V relay OFF;
High-level trigger: 3.3 -5V relay ON; 0- 2.5V relay OFF;
DC 12V: Low-level
trigger: 0-5V relay ON; 6-12V relay OFF;
High-level trigger: 6-12V relay ON; 0- 5.5V relay OFF;
DC 24V: Low-level
trigger: 0-12V relay ON; 12-24V relay OFF;
High-level trigger: 12-24V relay ON; 0- 8.5V relay OFF;
Package Included: 1x 30A Relay Module
Quiescent current: 5mA;
Maximum operating current: 190mA (5V) / 80ma (12v) / 50ma (24v);
Trigger mode: high and low level trigger;
Load voltage: DC 30V / AC250;
Load current: 30A;
Relay life: more than 100, 000 times;
Product weight: 46g (1ch) 200g (2ch) 385g (4ch) 780 (8ch);
Size: 72 * 40 *22 (1ch) / 70 * 72 * 22mm (2ch) /129 * 72 * 22mm (4ch) /252 * 72 * 22mm (L * W * H);
Mounting hole size: 44.5 x 27.5MM (1CH) / 67.5 * 69.5MM (2CH) / 126.5 * 69.5 (4CH) / 249.5 * 69.5 (8CH) (LxW); Module
Interface Description: 1.
DC +: DC power supply positive; 2.
DC -: DC power supply module negative; 3.
IN: Signal input terminal(support High/Low Level switch freely); 4.
Normally open (NO): Relay normally open; 5.
Common terminal (COM): Relay common; 6.
Normally closed terminal (NC): relay normally closed terminal;
Trigger voltage range: DC
05V: Low-level
trigger: 0-2V relay ON; 3-5V relay OFF;
High-level trigger: 3.3 -5V relay ON; 0- 2.5V relay OFF;
DC 12V: Low-level
trigger: 0-5V relay ON; 6-12V relay OFF;
High-level trigger: 6-12V relay ON; 0- 5.5V relay OFF;
DC 24V: Low-level
trigger: 0-12V relay ON; 12-24V relay OFF;
High-level trigger: 12-24V relay ON; 0- 8.5V relay OFF;
Package Included: 1x 30A Relay Module
