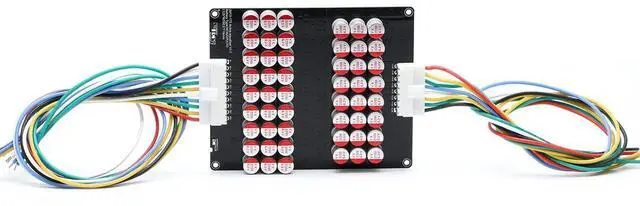

13S 14S 15S 16S 17S 5A Active Equalizer Balancer LFP Lifepo4 Lithium Li-ion Lipo/Titanate LTO Battery Energy Transfer Active Equalization Module Capacitor Faster Whole Group Balancing
- Usage Tips: The voltage gap of each battery must be within 0.5V. When the battery voltage difference does not reach more than 0.1V, the light on the balance board is triggered by mistake. The light actually has no balance current when it lights up, and it will automatically go out after a period of time. So We suggest re-plugging the cable to solve the problem. Note that It takes time to equalize the voltage, hot is normal and it does not take effect immediately after plugging it in.
- Working Voltage: 1.8V-4.5V, suitable for NCM Ternary polymer lithium battery (Li-ion), lithium iron phosphate battery (LiFePO4),lithium titanate battery (LTO). Tips: When buyers have problems, please be sure to take the initiative to contact us, and trust us have the ability to solve your problems, rather than a direct refund returns. This can prevent many products from being discarded and wasted.
- Working Principle: Flying capacitor transfer charge transporter, Balancer board is connected to the batt
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Working voltage: 1.8V - 4.5VS uitable for ternary lithium(Li-ion), lithium iron phosphate (LiFePO4), lithium titanate (LTO). The whole battery participates in the active equalization of energy transfer at the same time. 0.1V differential voltage 1A equalizing current. The differential voltage is bigger that equalizing current is bigger. The maximum allowable working current is 5.5A.

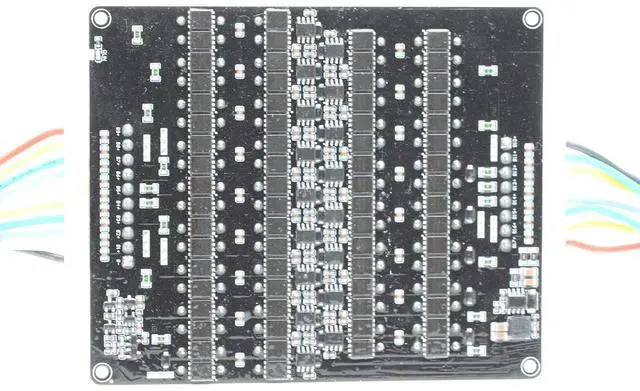

Working principle: Flycap-capacitor transfer charge transporter, Balancer board is connected to the battery to start the balance work, using the original brand new ultra-low internal resistance MOS, 2OZ copper thickness PCB. Balance current 0- 5.5A, the more balanced the battery current is Small, reserved for manual sleep switch, sleep current mode is less than 0.1 mA, the balance voltage accuracy is within 5mv! The quiescent current is about 17mA, and the battery capacity is recommended to be used between 30-200AH/Per Balancer. With under-voltage sleep protection, only detecting the B1 battery voltage, the equalizer will automatically stop entering the sleep state when the B1 voltage NCM/LFP< 2.7V or LTO< 1.8V, and the standby power consumption is less than 0.1 mA.

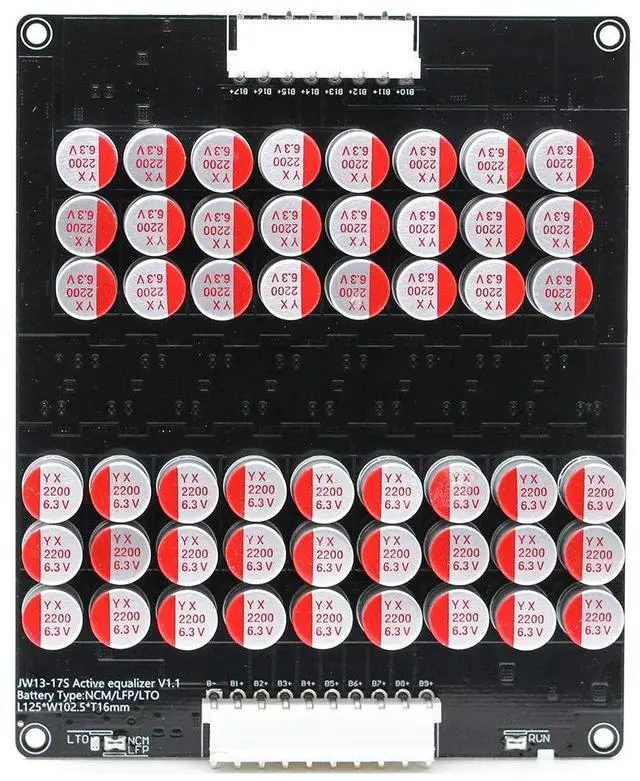

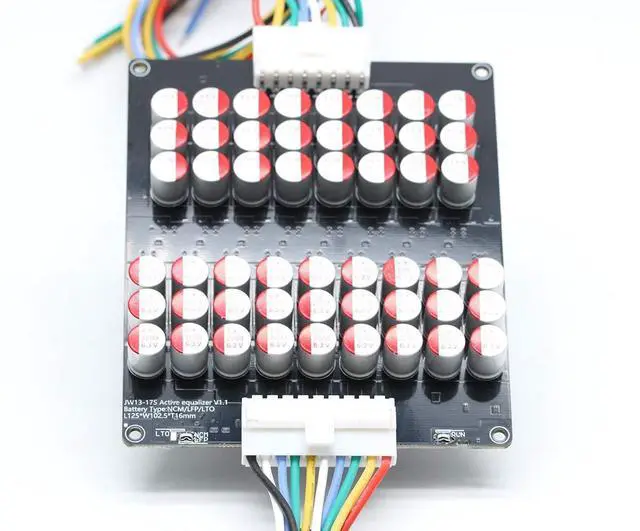

Board size: 125x 102.5 x16mm/ 4.92 x 4.03 x 0.63 inchBalance cable length: 400mm/ 15.7 inchOne
LED indicator: It will always be on during normal operation, but it will not turn on when there is a problem or malfunction.

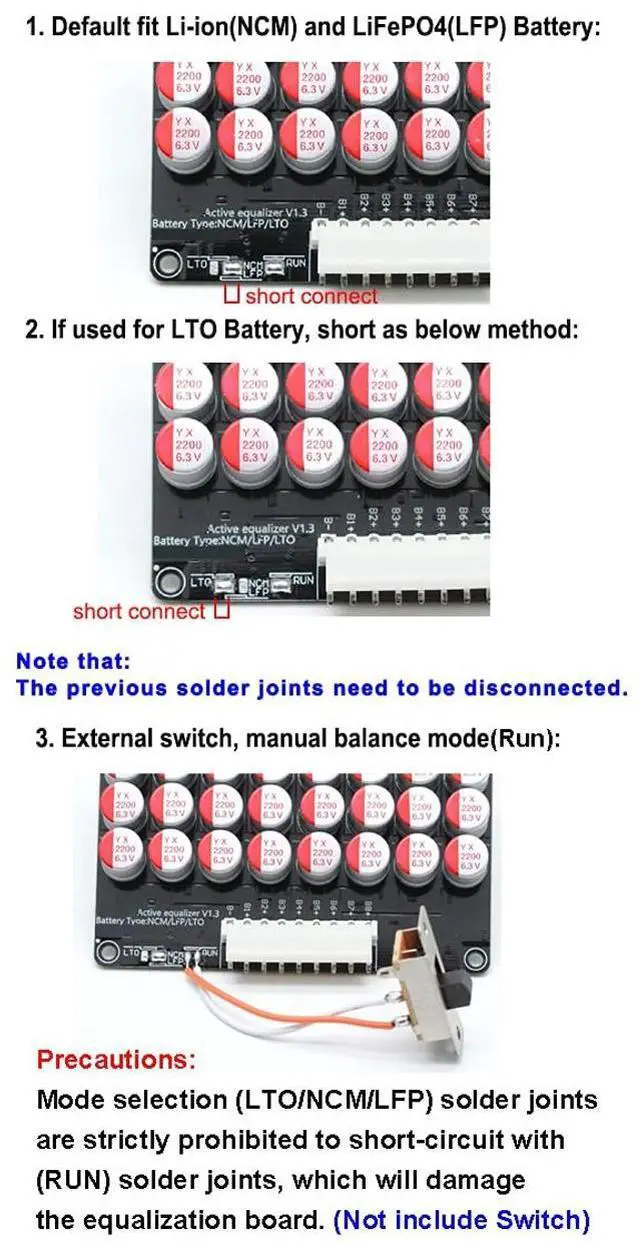

RUN pad: you can add a switch to control the balancer. Default short connect, let balancer working. if disconnect, it will not working.
Note: Please start wiring from the total negative pole, followed by B-, B1+, B2+,..., B16+, B17+. (Test per string battery voltage whether is right before connect to Balancer board).
Package Includes: 1x 17S Balancer Board2x 9-Pin Cable
Working principle: Flycap-capacitor transfer charge transporter, Balancer board is connected to the battery to start the balance work, using the original brand new ultra-low internal resistance MOS, 2OZ copper thickness PCB. Balance current 0- 5.5A, the more balanced the battery current is Small, reserved for manual sleep switch, sleep current mode is less than 0.1 mA, the balance voltage accuracy is within 5mv! The quiescent current is about 17mA, and the battery capacity is recommended to be used between 30-200AH/Per Balancer. With under-voltage sleep protection, only detecting the B1 battery voltage, the equalizer will automatically stop entering the sleep state when the B1 voltage NCM/LFP< 2.7V or LTO< 1.8V, and the standby power consumption is less than 0.1 mA.
Board size: 125x 102.5 x16mm/ 4.92 x 4.03 x 0.63 inchBalance cable length: 400mm/ 15.7 inchOne
LED indicator: It will always be on during normal operation, but it will not turn on when there is a problem or malfunction.
RUN pad: you can add a switch to control the balancer. Default short connect, let balancer working. if disconnect, it will not working.
Note: Please start wiring from the total negative pole, followed by B-, B1+, B2+,..., B16+, B17+. (Test per string battery voltage whether is right before connect to Balancer board).
Package Includes: 1x 17S Balancer Board2x 9-Pin Cable
